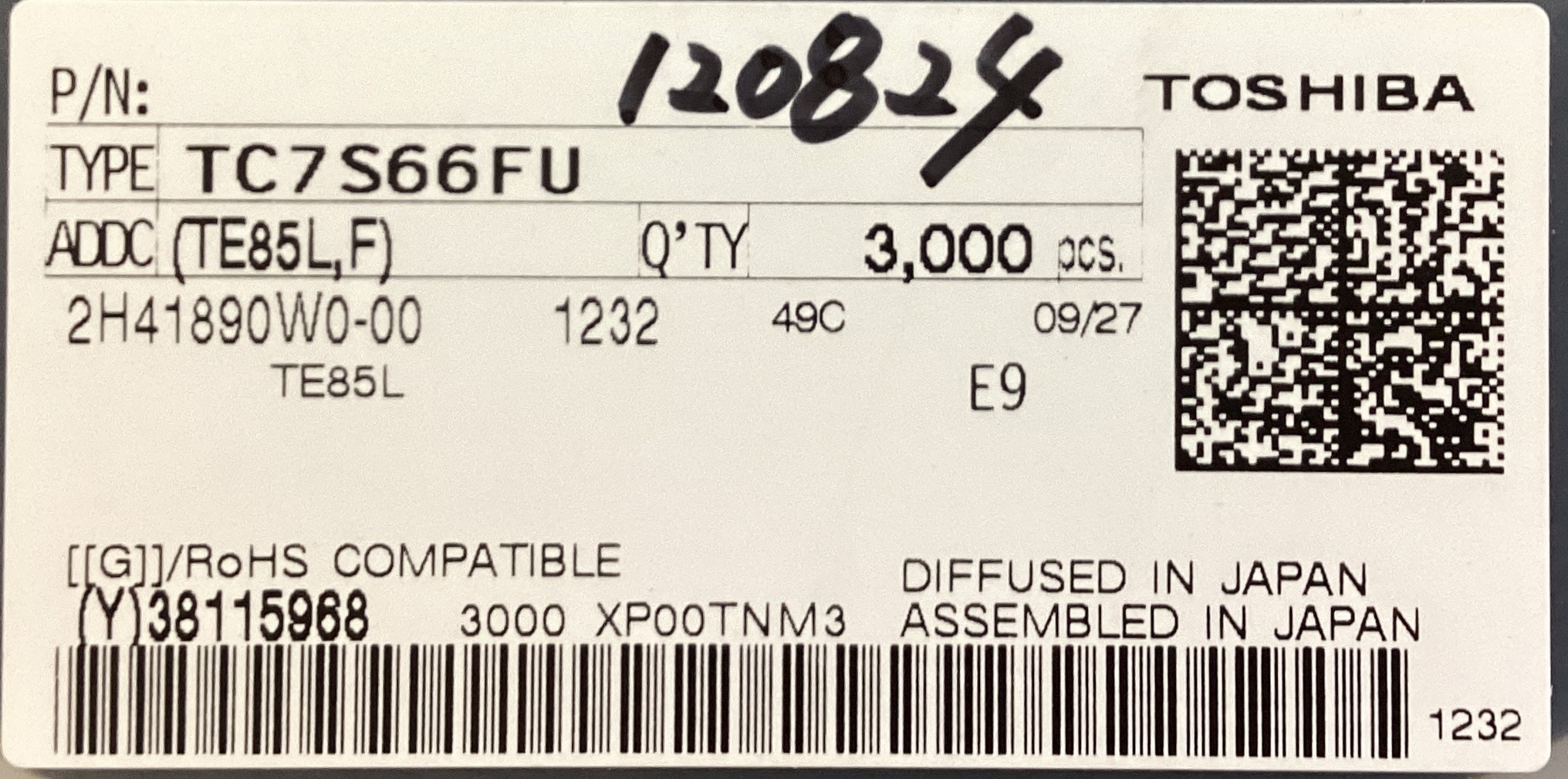

TC7S66FU データシート

Name: TC7S66FU
Brand: TOSHIBA
SKU: 300000938-0000-0000-0000

TC7S66FU - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

TC7S66FU の詳細情報

型番	TC7S66FU
メーカー	TOSHIBA
カテゴリ	その他-汎用IC
データシート
Analog IC - Other Type	SPST
IBIS
IO (Min)(mA)
JESD-30 Code	R-PDSO-G5
JESD-609 Code	e0
Length	2 mm
Normal Position	NO V
Number of Channels	1
Number of Functions	1
Number of Terminals	5
On-state Resistance-Max (Ron)	340 ohm
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP5/6,.08
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	2/12 V
Qualification Status	Not Qualified
Seated Height-Max	1.1 mm
Sub Category	Multiplexer or Switches
Supply Voltage-Max (Vsup)	12 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	4.5 V
Surface Mount	YES
Switch-off Time-Max	220 ns
Switch-on Time-Max	190 ns
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	TIN LEAD
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
VCC (Max)(V)	12
VCC (Min)(V)	2
Width	1.25 mm
tpd_tpz (Typ.)(nsec)	8
グループ	TC7S
ゲート数	1
ピン数	5
機能1	Switch / Multiplexer
機能2	SPST Analog Switch
