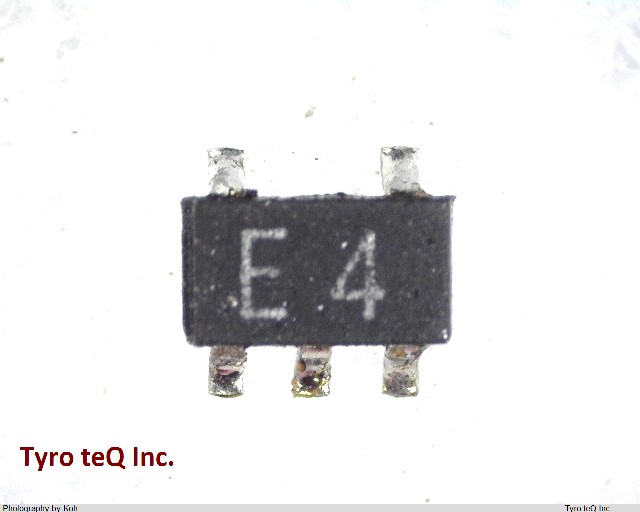

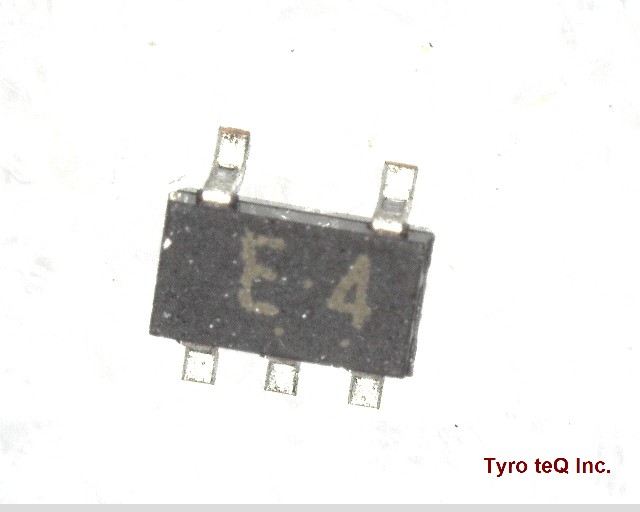

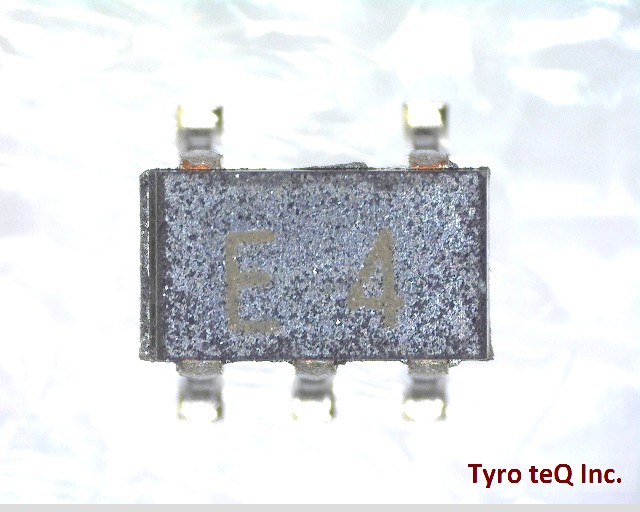

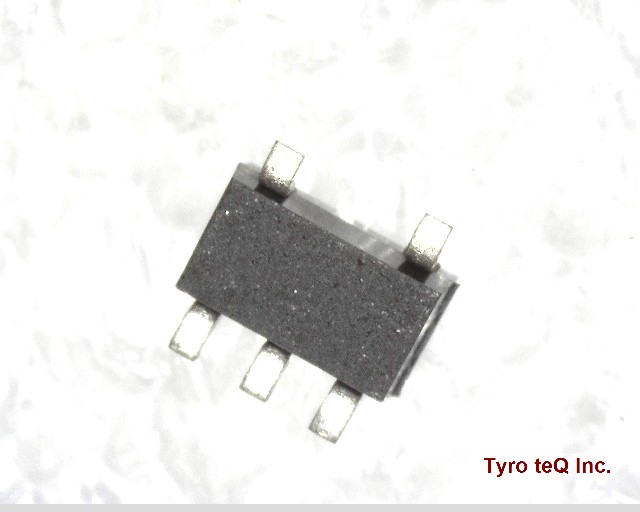

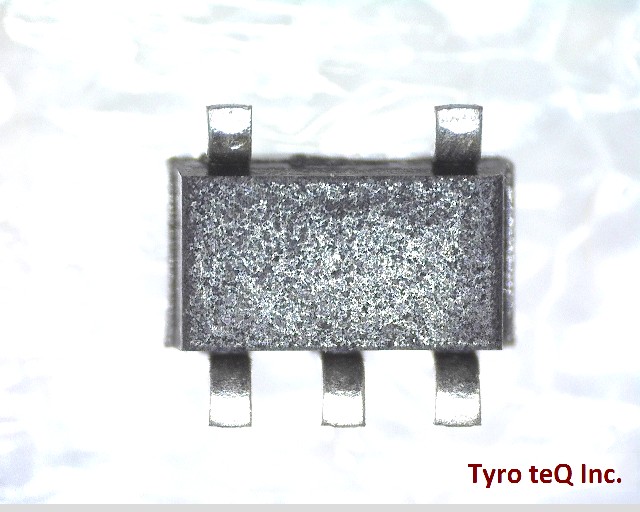

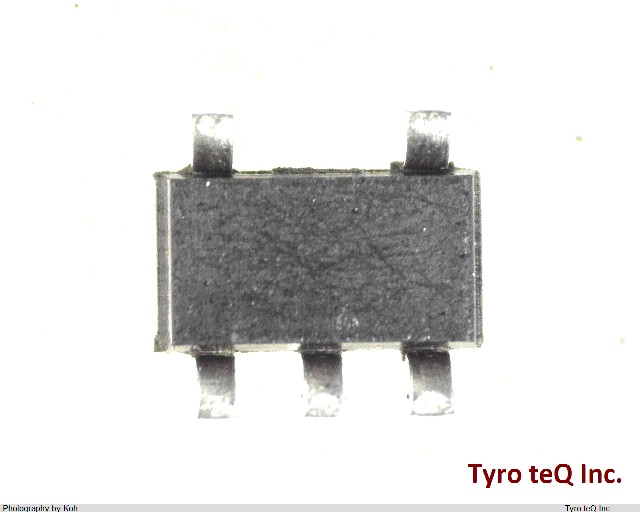

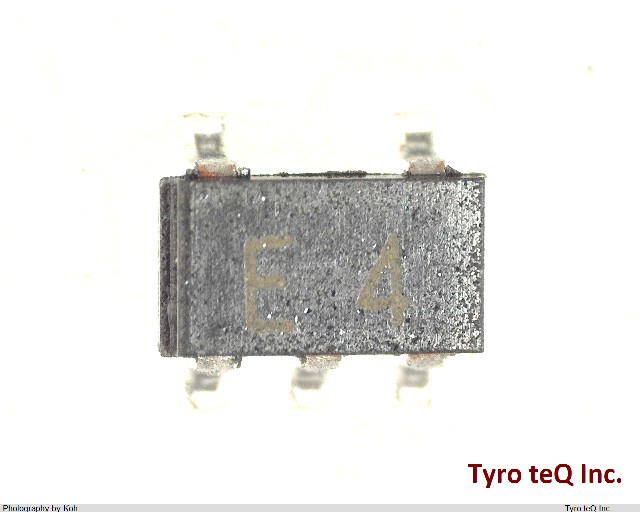

TC7S32F データシート

Name: TC7S32F
Brand: TOSHIBA
SKU: 300000833-0000-0000-0000

TC7S32F - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

TC7S32F の詳細情報

型番	TC7S32F
メーカー	TOSHIBA
カテゴリ	その他-汎用IC
データシート
Family	HC/UH
IBIS
IO (Min)(mA)	2.6
JESD-30 Code	R-PDSO-G5
JESD-609 Code	e0
Length	2 mm
Load Capacitance (CL)	50 pF
Logic IC Type	OR GATE
Max I(ol)	0.002 Amp
Number of Functions	1
Number of Inputs	2
Number of Terminals	5
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	LSSOP
Package Equivalence Code	SOP5,.11,37
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	2/6 V
Prop. Delay@Nom-Sup	125 ns
Propagation Delay (tpd)	25 ns
Qualification Status	Not Qualified
Schmitt Trigger	NO
Seated Height-Max	1.1 mm
Sub Category	Gates
Supply Voltage-Max (Vsup)	6 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
VCC (Max)(V)	6
VCC (Min)(V)	2
Width	1.25 mm
tpd_tpz (Typ.)(nsec)	5
グループ	TC7S
ゲート数	1
ピン数	5
機能1	Gate
機能2	OR
