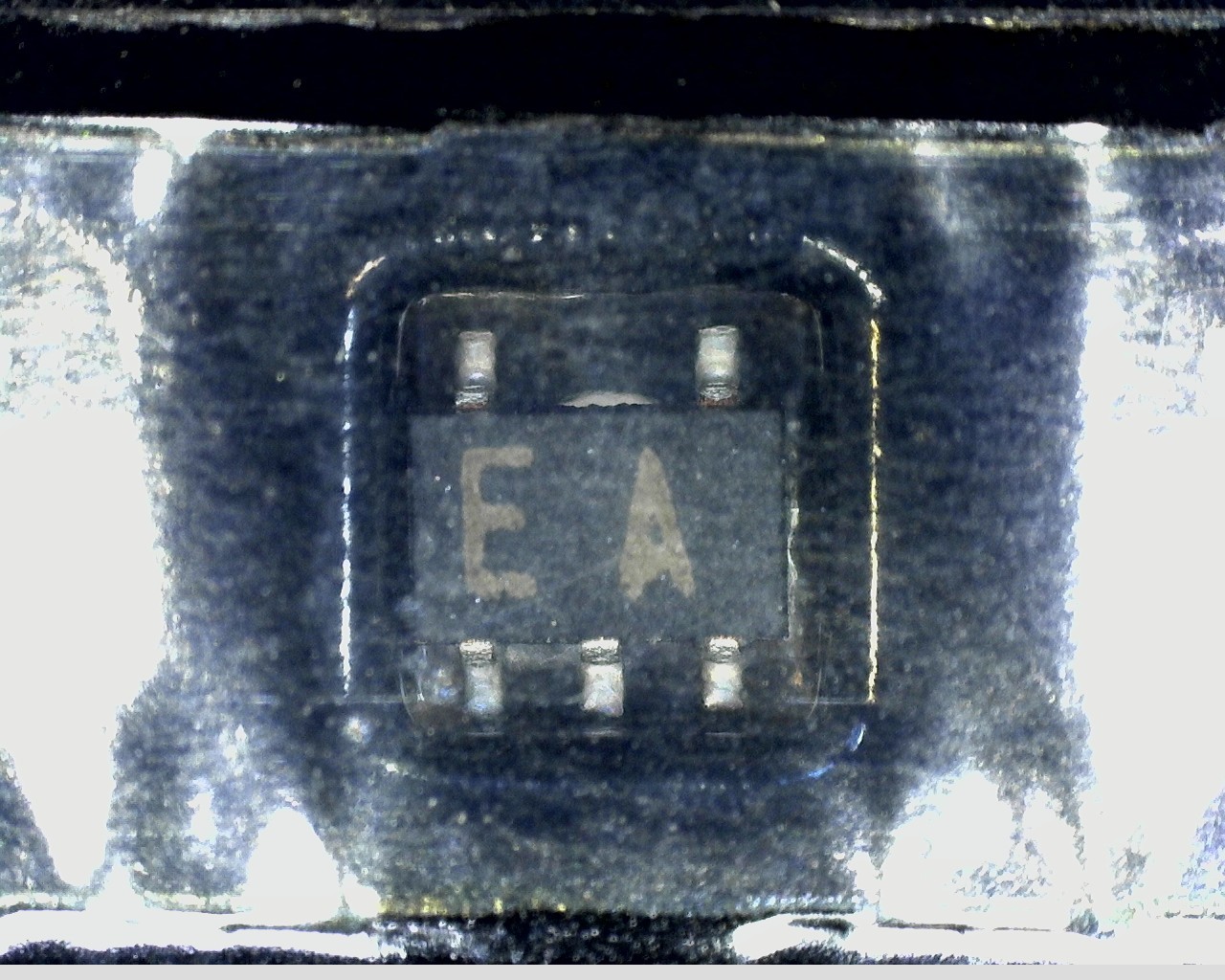

TC7S14FU-TE85L データシート

Name: TC7S14FU-TE85L
Brand: TOSHIBA
SKU: 300019689-0000-0000-0000

TC7S14FU-TE85L - TOSHIBA の商品詳細ページです。

No Image

２営業日以内に回答いたします

TC7S14FU-TE85L の詳細情報

型番	TC7S14FU-TE85L
メーカー	TOSHIBA
データシート
Family	HC/UH
JESD-30 Code	R-PDSO-G5
Length	2 mm
Load Capacitance (CL)	50 pF
Logic IC Type	INVERTER
Max I(ol)	2.0E-5 Amp
Number of Functions	1
Number of Inputs	1
Number of Terminals	5
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP6,.08
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	2/6 V
Prop. Delay@Nom-Sup	235 ns
Propagation Delay (tpd)	48 ns
Qualification Status	Not Qualified
Schmitt Trigger	YES
Seated Height-Max	1.1 mm
Sub Category	Gates
Supply Voltage-Max (Vsup)	6 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	1.25 mm
