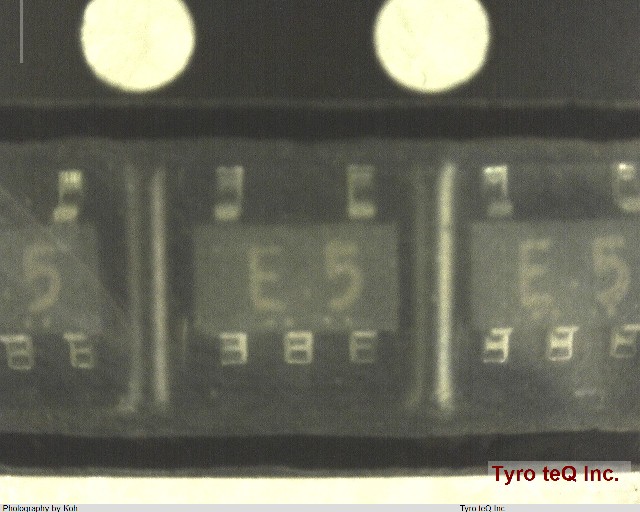

TC7S04F(TE85L,F) データシート

Name: TC7S04F(TE85L,F)
Brand: TOSHIBA
SKU: 300238431-0000-0000-0000

TC7S04F(TE85L,F) - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

TC7S04F(TE85L,F) の詳細情報

型番	TC7S04F(TE85L,F)
メーカー	TOSHIBA
データシート
Family	HC/UH
JESD-30 Code	R-PDSO-G5
JESD-609 Code	e4
Length	2.9 mm
Load Capacitance (CL)	50 pF
Logic IC Type	INVERTER
Max I(ol)	0.002 Amp
Number of Functions	1
Number of Inputs	1
Number of Terminals	5
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	LSSOP
Package Equivalence Code	TSOP5/6,.11,37
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	2/6 V
Prop. Delay@Nom-Sup	25 ns
Propagation Delay (tpd)	125 ns
Qualification Status	Not Qualified
Schmitt Trigger	NO
Seated Height-Max	1.4 mm
Sub Category	Gates
Supply Voltage-Max (Vsup)	6 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	0.95 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	1.6 mm
