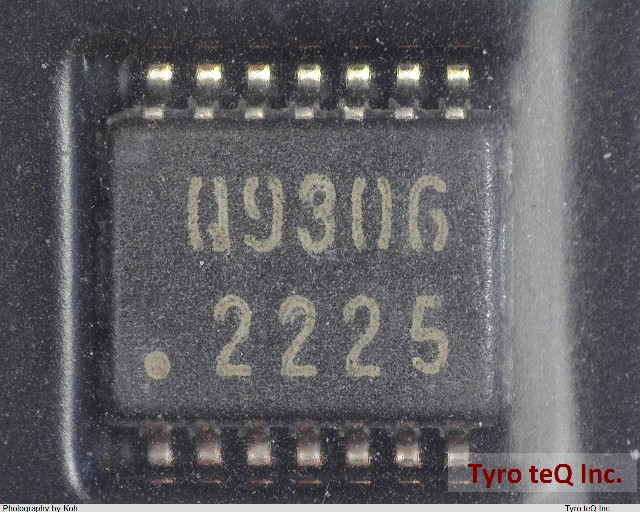

TC7QPB9306FK データシート

Name: TC7QPB9306FK
Brand: TOSHIBA
SKU: 300377603-0000-0000-0000

TC7QPB9306FK - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

TC7QPB9306FK の詳細情報

型番	TC7QPB9306FK
メーカー	TOSHIBA
カテゴリ	スイッチ
データシート
Additional Feature	ALSO OPERATES WITH 2.3-5.5 V SUPPLY
CON (typ.)(pF)	14
Family	9306
IBIS	IBIS
JESD-30 Code	R-PDSO-G14
Length	4 mm
Logic IC Type	BUS DRIVER
Number of Bits	1
Number of Functions	1
Number of Ports	2
Number of Terminals	14
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	3-STATE
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP14,.16,20
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	1.65/5,2.5/5 V
Propagation Delay (tpd)	0.45 ns
Qualification Status	Not Qualified
RON (typ.)(Ω)	5
Seated Height-Max	1 mm
Sub Category	Bus Driver/Transceivers
Supply Voltage-Max (Vsup)	5 V
Supply Voltage-Min (Vsup)	1.65 V
Supply Voltage-Nom (Vsup)	2.5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
VCC (Max)(V)
VCC (Min)(V)
VCCA (Max)(V)	5
VCCA (Min)(V)	1.65
VCCB (Max)(V)	5.5
VCCB (Min)(V)	2.3
Width	3 mm
ピン数	14
回路数	4
回路構成(スイッチタイプ)	SPST
機能	Low Voltage/Low Power 4-Bit Dual Supply Bus Switch
