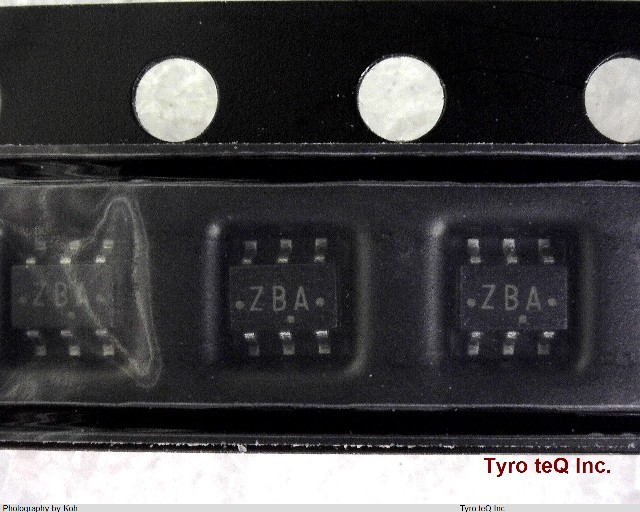

TC7PZ14FU データシート

Name: TC7PZ14FU
Brand: TOSHIBA
SKU: 300377430-0000-0000-0000

TC7PZ14FU - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

TC7PZ14FU の詳細情報

型番	TC7PZ14FU
メーカー	TOSHIBA
カテゴリ	その他-汎用IC
種別	L-MOSワンゲートロジック
データシート
Family	LVC/LCX/Z
IBIS	IBIS
IO (Min)(mA)	24
JESD-30 Code	R-PDSO-G6
Length	2 mm
Load Capacitance (CL)	50 pF
Logic IC Type	INVERTER
Max I(ol)	0.032 Amp
Moisture Sensitivity Level	1
Number of Functions	2
Number of Inputs	1
Number of Terminals	6
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP6,.08
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supply Current-Max (ICC)	100 mA
Prop. Delay@Nom-Sup	15.6 ns
Propagation Delay (tpd)	15.6 ns
Schmitt Trigger	YES
Screening Level	AEC-Q100
Seated Height-Max	1.1 mm
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	1.65 V
Supply Voltage-Nom (Vsup)	1.8 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	AUTOMOTIVE
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
VCC (Max)(V)	5.5
VCC (Min)(V)	1.65
Width	1.25 mm
tpd_tpz (Typ.)(nsec)	3.7
グループ	TC7PZ
ゲート数	2
ピン数	6
機能1	Inverter
機能2	Schmitt Inverter
