TC7MBL3245CFTG データシート

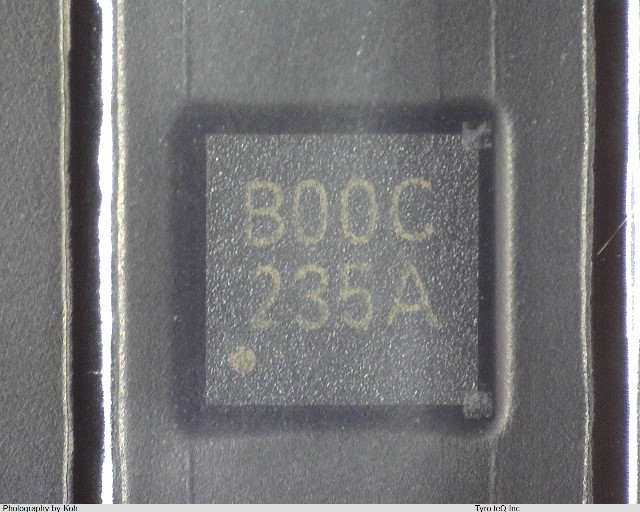

Name: TC7MBL3245CFTG
Brand: TOSHIBA
SKU: 300377587-0000-0000-0000

TC7MBL3245CFTG - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

TC7MBL3245CFTG の詳細情報

型番	TC7MBL3245CFTG
メーカー	TOSHIBA
カテゴリ	スイッチ
種別	汎用ロジックIC
データシート
CON (typ.)(pF)	7.5
Family	CBT/FST/QS/5C/B
JESD-30 Code	S-PQCC-N20
Length	3.2 mm
Logic IC Type	BUS DRIVER
Number of Bits	8
Number of Functions	1
Number of Ports	2
Number of Terminals	20
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	3-STATE
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	HVQCCN
Package Equivalence Code	LCC20,.13SQ,20
Package Shape	SQUARE
Package Style	CHIP CARRIER Meter
Power Supplies	1.8/3.3 V
Propagation Delay (tpd)	11 ns
Qualification Status	Not Qualified
RON (typ.)(Ω)	6.5
Seated Height-Max	0.6 mm
Sub Category	Bus Driver/Transceivers
Supply Voltage-Max (Vsup)	3.6 V
Supply Voltage-Min (Vsup)	1.65 V
Supply Voltage-Nom (Vsup)	1.8 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	NO LEAD
Terminal Pitch	0.5 mm
Terminal Position	QUAD
VCC (Max)(V)	3.6
VCC (Min)(V)	1.65
VCCA (Max)(V)
VCCA (Min)(V)
VCCB (Max)(V)
VCCB (Min)(V)
Width	3.2 mm
データシート
ピン数	20
ライフサイクル
回路数	8
回路構成(スイッチタイプ)	SPST
機能	Low Voltage/Low Capacitance Octal Bus Switch
