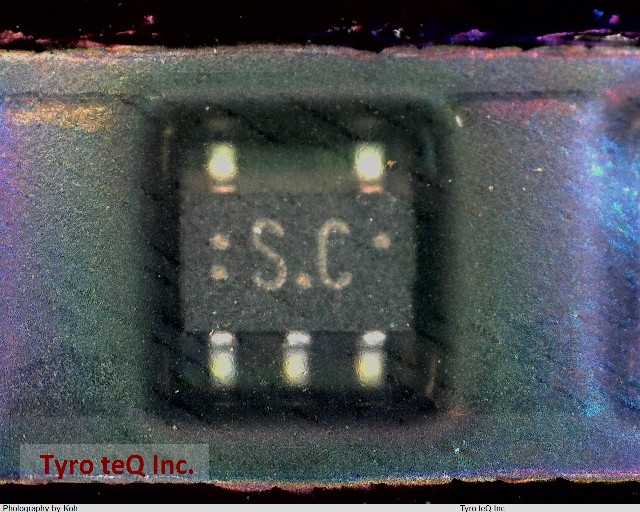

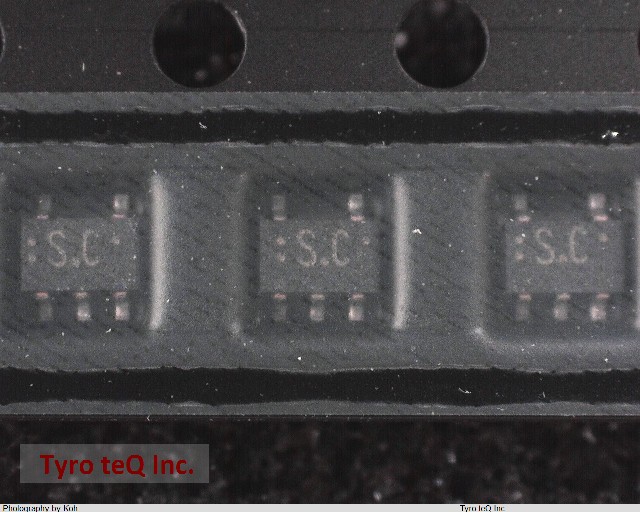

TC75S51FU(TE85L F)

Name: TC75S51FU(TE85L F)
Brand: TOSHIBA
SKU: 300268675-0000-0000-0000

TC75S51FU(TE85L F) - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

TC75S51FU(TE85L F) の詳細情報

型番	TC75S51FU(TE85L F)
メーカー	TOSHIBA
種別	汎用リニアIC
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Frequency Compensation	NO
Input Offset Voltage-Max	10000 uV
JESD-30 Code	R-PDSO-G5
Length	2 mm
Low-Bias	YES
Low-Offset	NO
Micropower	NO
Number of Functions	1
Number of Terminals	5
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSOP5/6,.08,25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Packing Method	TAPE AND REEL
Power	NO
Power Supplies	+-0.75/3.5/1.5/7 V
Programmable Power	NO
Qualification Status	Not Qualified
Seated Height-Max	1.1 mm
Slew Rate-Nom	0.3 V/us
Sub Category	Operational Amplifiers
Supply Current-Max	0.15 mA
Supply Voltage Limit-Max	3.5 V
Supply Voltage-Nom (Vsup)	1.5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	0.635 mm
Terminal Position	DUAL
Unity Gain BW-Nom	500 kHz
Voltage Gain-Min	1000
Wideband	NO
Width	1.5 mm
