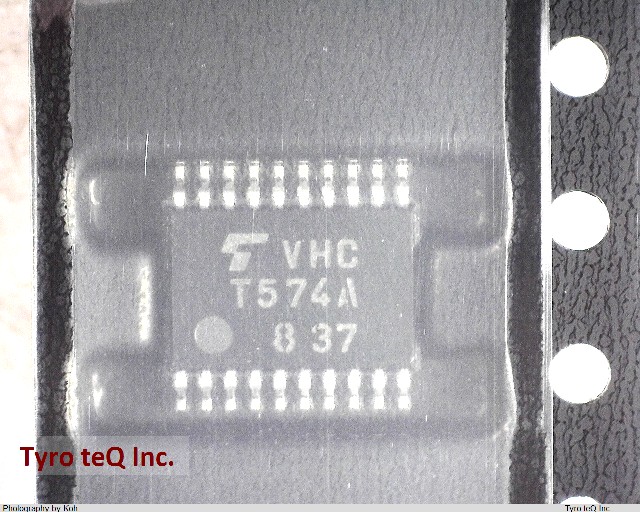

TC74VHCT574AFT データシート

Name: TC74VHCT574AFT
Brand: TOSHIBA
SKU: 300019559-0000-0000-0000

TC74VHCT574AFT - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

CMOSロジックIC | 74VHCシリーズ|パッケージ : TSSOP

TC74VHCT574AFT の詳細情報

型番	TC74VHCT574AFT
メーカー	TOSHIBA
カテゴリ	その他-汎用IC
種別	CMOSロジックIC
データシート
Additional Feature	BROADSIDE VERSION OF 374
Family	AHCT/VHCT
IO (Min)(mA)	8
JESD-30 Code	R-PDSO-G20
JESD-609 Code	e4
Length	6.5 mm
Load Capacitance (CL)	50 pF
Logic IC Type	BUS DRIVER
Max Frequency@Nom-Sup	75000000 Hz
Max I(ol)	0.008 Amp
Number of Bits	8
Number of Functions	1
Number of Ports	2
Number of Terminals	20
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	3-STATE
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP20,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5 V
Propagation Delay (tpd)	11.5 ns
Qualification Status	Not Qualified
Seated Height-Max	1.2 mm
Sub Category	FF/Latches
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	4.5 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Trigger Type	POSITIVE EDGE
VCC (Max)(V)	5.5
VCC (Min)(V)	4.5
Width	4.4 mm
tpd_tpz (Typ.)(nsec)	4.1
グループ	TC74VHCT
データシート
ピン数	20
ライフサイクル
機能1	Flip-Flop
機能2	D-Type Flip-Flop
面実装区分	Y
