TC74VHCT138AFT-EL データシート

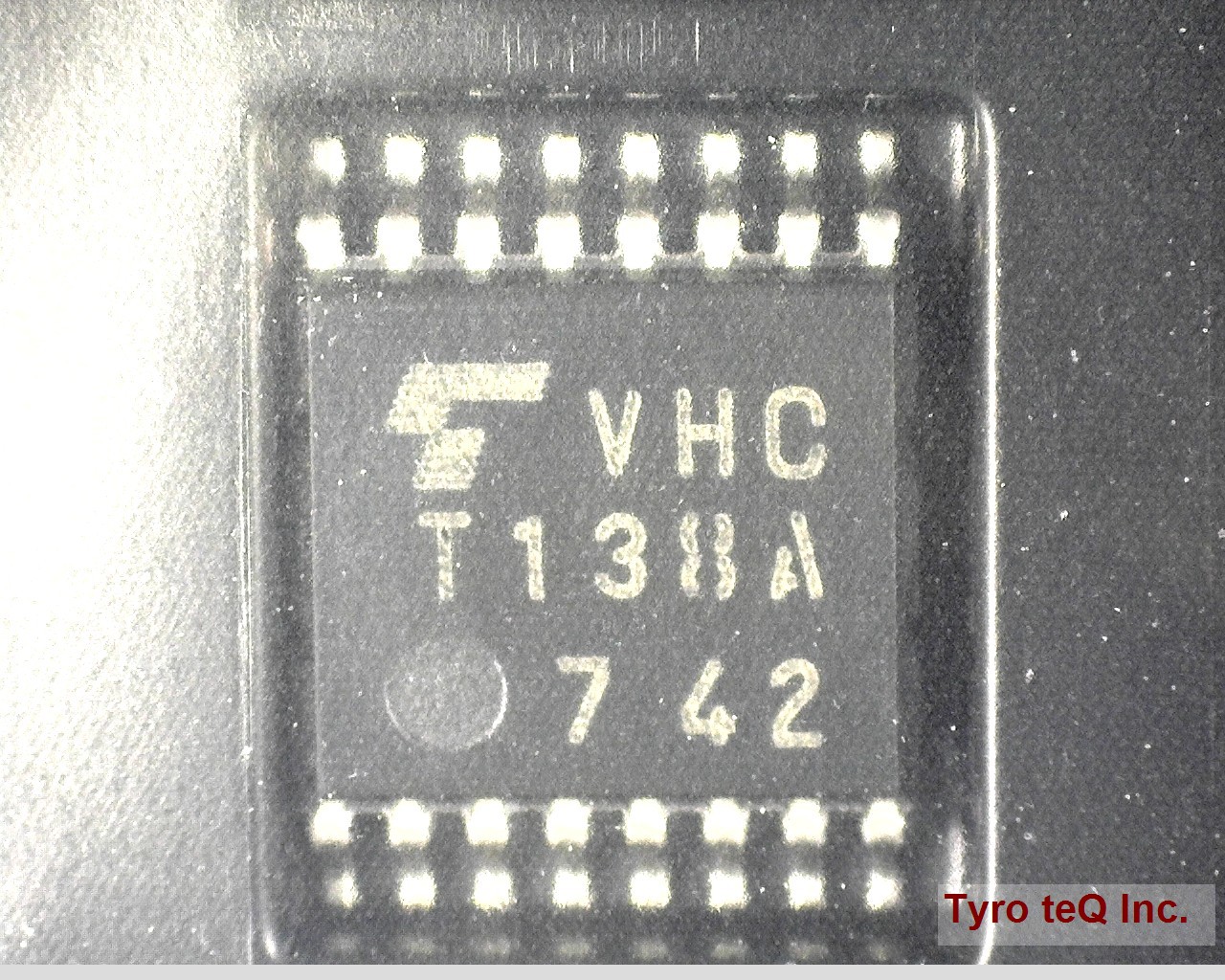

Name: TC74VHCT138AFT-EL
Brand: TOSHIBA
SKU: 300019525-0000-0000-0000

TC74VHCT138AFT-EL - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

CMOSロジックIC | 74VHCシリーズ

TC74VHCT138AFT-EL の詳細情報

型番	TC74VHCT138AFT-EL
メーカー	TOSHIBA
種別	CMOSロジックIC
データシート
Family	AHCT/VHCT
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e0
Length	5 mm
Load Capacitance (CL)	50 pF
Logic IC Type	OTHER DECODER/DRIVER
Max I(ol)	0.008 Amp
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Polarity	INVERTED
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP16,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Packing Method	TR
Power Supplies	5 V
Prop. Delay@Nom-Sup	13 ns
Propagation Delay (tpd)	13 ns
Qualification Status	Not Qualified
Seated Height-Max	1.2 mm
Sub Category	Decoder/Drivers
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	4.5 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Width	4.4 mm
