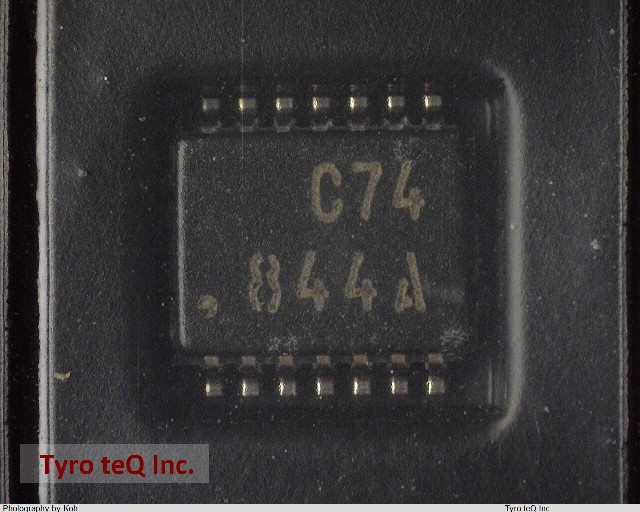

TC74VHC74FK データシート

Name: TC74VHC74FK
Brand: TOSHIBA
SKU: 300327356-0000-0000-0000

TC74VHC74FK - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

CMOSロジックIC | 74VHCシリーズ|パッケージ : US

TC74VHC74FK の詳細情報

型番	TC74VHC74FK
メーカー	TOSHIBA
カテゴリ	その他-汎用IC
種別	CMOSロジックIC
データシート
Family	AHC/VHC
IBIS	IBIS
IO (Min)(mA)	8
JESD-30 Code	R-PDSO-G14
Length	4 mm
Load Capacitance (CL)	50 pF
Logic IC Type	D FLIP-FLOP
Max Frequency@Nom-Sup	75000000 Hz
Max I(ol)	0.008 Amp
Number of Bits	1
Number of Functions	2
Number of Terminals	14
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Polarity	COMPLEMENTARY
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP14,.16,20
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	2/5.5 V
Prop. Delay@Nom-Sup	10.5 ns
Propagation Delay (tpd)	17.5 ns
Qualification Status	Not Qualified
Seated Height-Max	1 mm
Sub Category	FF/Latches
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Trigger Type	POSITIVE EDGE
VCC (Max)(V)	5.5
VCC (Min)(V)	2
Width	3 mm
fmax-Min	110 MHz
tpd_tpz (Typ.)(nsec)	4.6
グループ	TC74VHC
ピン数	14
回路数	2
機能1	Flip-Flop
機能2	D-Type Flip-Flop
面実装区分	Y
