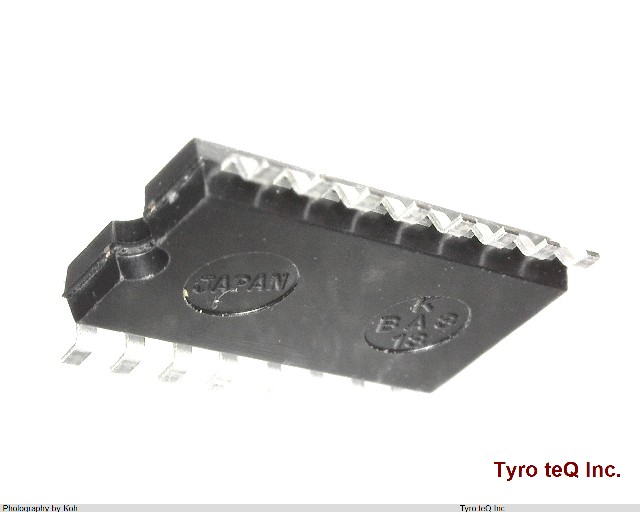

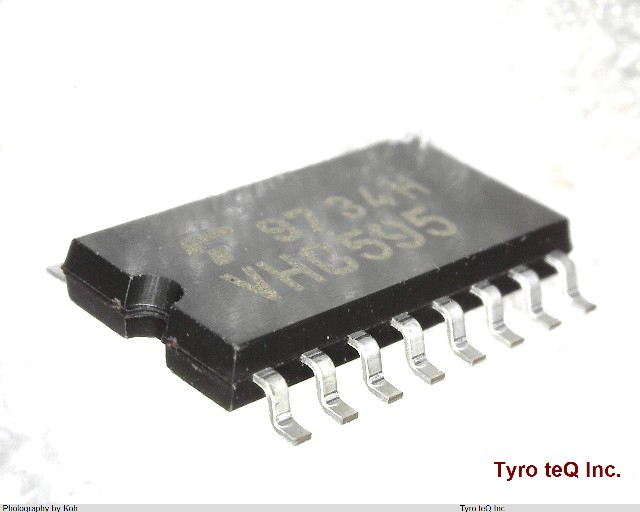

TC74VHC595F データシート

Name: TC74VHC595F
Brand: TOSHIBA
SKU: 300019487-0000-0000-0000

TC74VHC595F - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

CMOSロジックIC | 74VHCシリーズ|パッケージ : SOP

TC74VHC595F の詳細情報

型番	TC74VHC595F
メーカー	TOSHIBA
カテゴリ	その他-汎用IC
種別	CMOSロジックIC
データシート
Additional Feature	NOT AVAILABLE IN JAPAN
Count Direction	RIGHT
Family	AHC/VHC
IBIS	IBIS
IO (Min)(mA)	8
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e0
Length	4 mm
Load Capacitance (CL)	50 pF
Logic IC Type	SERIAL IN PARALLEL OUT
Max Frequency@Nom-Sup	50000000 Hz
Number of Bits	8
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	3-STATE
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	LSSOP
Package Equivalence Code	SOP16,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	240
Power Supplies	2/5.5 V
Propagation Delay (tpd)	11.4 ns
Qualification Status	Not Qualified
Seated Height-Max	1 mm
Sub Category	Shift Registers
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Trigger Type	POSITIVE EDGE
VCC (Max)(V)	5.5
VCC (Min)(V)	2
Width	3 mm
fmax-Min	85 MHz
tpd_tpz (Typ.)(nsec)	6.2
グループ	TC74VHC
ピン数	16
回路数	1
機能1	Shift Register
機能2	8-Bit Shift Register
面実装区分	Y
