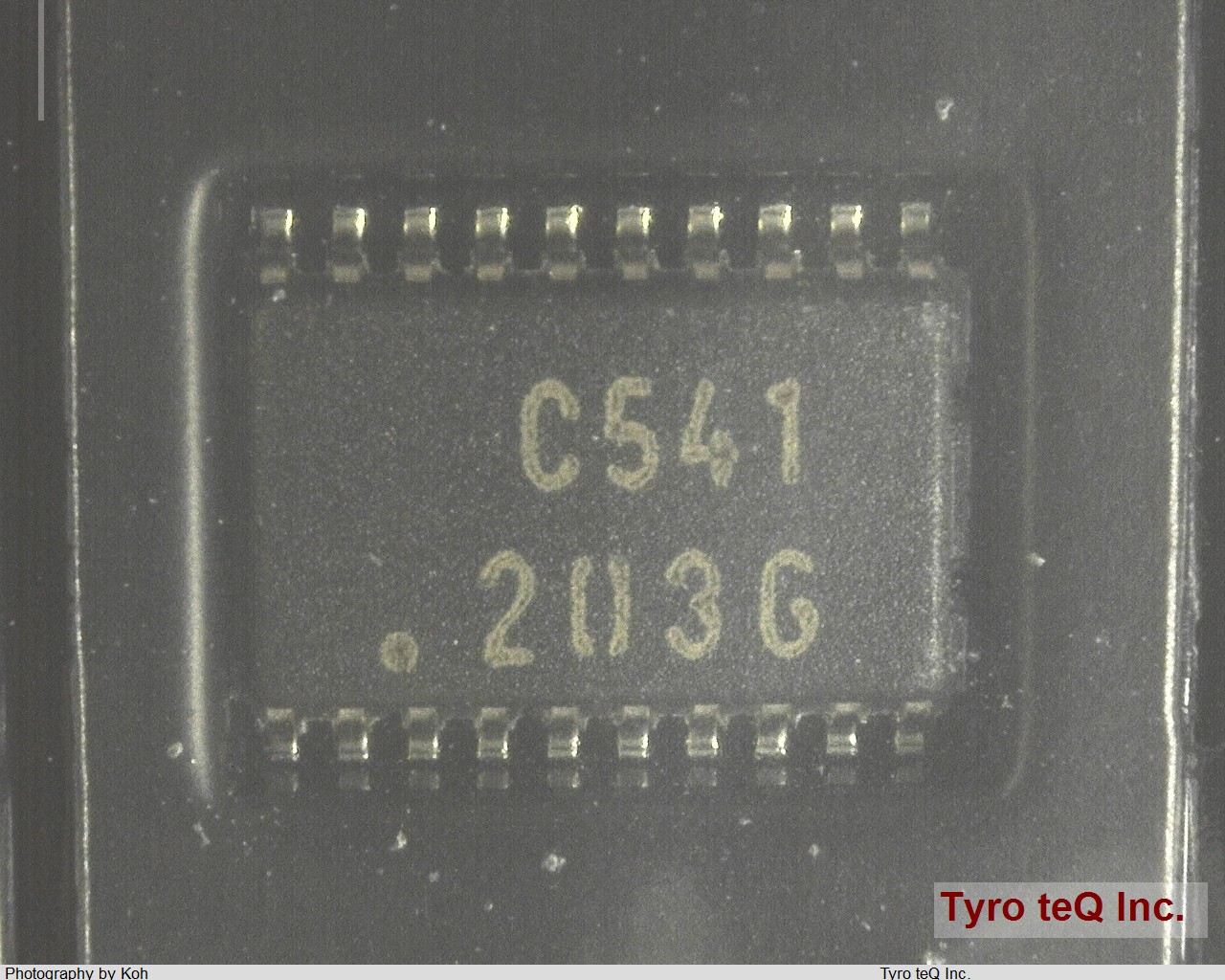

TC74VHC541FK(EL,K)

Name: TC74VHC541FK(EL,K)
Brand: TOSHIBA
SKU: 300355697-0000-0000-0000

TC74VHC541FK(EL,K) - TOSHIBA の商品詳細ページです。

No Image

２営業日以内に回答いたします

CMOSロジックIC | 74VHCシリーズ|パッケージ : US

TC74VHC541FK(EL,K) の詳細情報

型番	TC74VHC541FK(EL,K)
メーカー	TOSHIBA
種別	CMOSロジックIC
Control Type	ENABLE LOW
Family	AHC/VHC/H/U/V
JESD-30 Code	R-PDSO-G20
Length	5 mm
Load Capacitance (CL)	50 pF
Logic IC Type	BUS DRIVER
Max I(ol)	0.008 Amp
Number of Bits	8
Number of Functions	1
Number of Ports	2
Number of Terminals	20
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	3-STATE
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	VSSOP
Package Equivalence Code	TSSOP20,.16,20
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH Meter
Packing Method	TR
Power Supplies	2/5.5 V
Prop. Delay@Nom-Sup	8 ns
Propagation Delay (tpd)	12 ns
Qualification Status	Not Qualified
Seated Height-Max	1 mm
Sub Category	Bus Driver/Transceivers
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	DUAL
Width	3 mm
