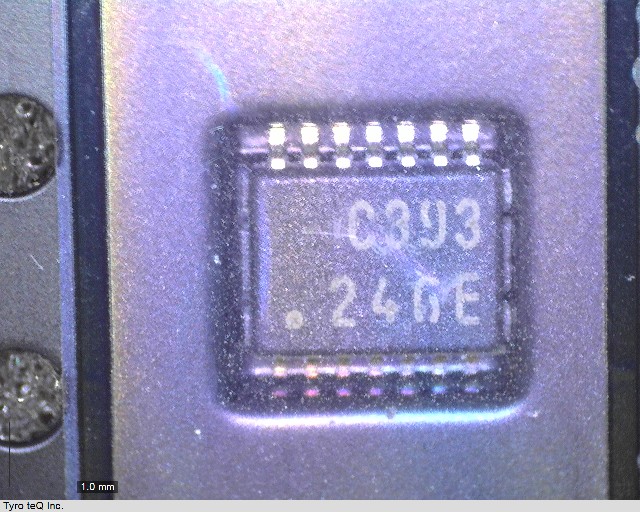

TC74VHC393FK データシート

Name: TC74VHC393FK
Brand: TOSHIBA
SKU: 300377507-0000-0000-0000

TC74VHC393FK - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

CMOSロジックIC | 74VHCシリーズ|パッケージ : US

TC74VHC393FK の詳細情報

型番	TC74VHC393FK
メーカー	TOSHIBA
カテゴリ	その他-汎用IC
種別	CMOSロジックIC
データシート
Count Direction	UP
Family	AHC/VHC/H/U/V
IBIS	IBIS
IO (Min)(mA)	8
JESD-30 Code	R-PDSO-G14
Length	4 mm
Load Capacitance (CL)	50 pF
Load/Preset Input	NO
Logic IC Type	BINARY COUNTER
Max Frequency@Nom-Sup	75000000 Hz
Max I(ol)	0.008 Amp
Mode of Operation	ASYNCHRONOUS
Number of Bits	4
Number of Functions	2
Number of Terminals	14
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP14,.16,20
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	2/5.5 V
Propagation Delay (tpd)	26.5 ns
Qualification Status	Not Qualified
Seated Height-Max	1 mm
Sub Category	Counters
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Trigger Type	NEGATIVE EDGE
VCC (Max)(V)	5.5
VCC (Min)(V)	2
Width	3 mm
fmax-Min	105 MHz
tpd_tpz (Typ.)(nsec)	5.8
グループ	TC74VHC
ピン数	14
回路数	2
機能1	Counter
機能2	Binary Counter
面実装区分	Y
