TC74VHC273FT-EL データシート

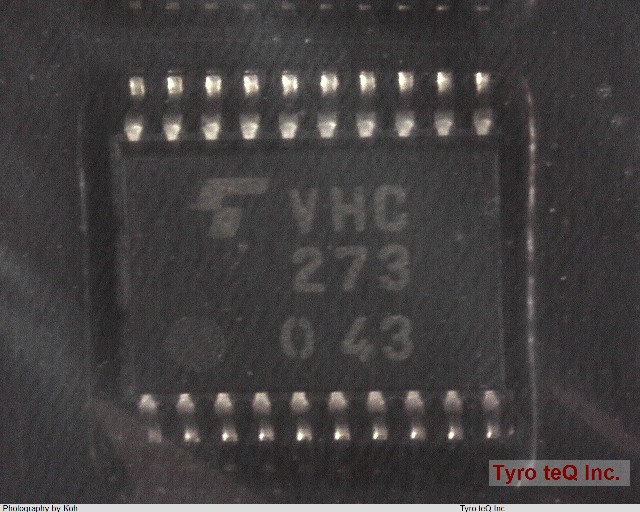

Name: TC74VHC273FT-EL
Brand: TOSHIBA
SKU: 300393267-0000-0000-0000

TC74VHC273FT-EL - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

CMOSロジックIC | 74VHCシリーズ

TC74VHC273FT-EL の詳細情報

型番	TC74VHC273FT-EL
メーカー	TOSHIBA
種別	CMOSロジックIC
データシート
Family	AHC/VHC
JESD-30 Code	R-PDSO-G20
Length	6.5 mm
Load Capacitance (CL)	50 pF
Logic IC Type	D FLIP-FLOP
Max Frequency@Nom-Sup	70000000 Hz
Max I(ol)	0.008 Amp
Number of Bits	8
Number of Functions	1
Number of Terminals	20
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP20,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	2/5.5 V
Prop. Delay@Nom-Sup	12.5 ns
Propagation Delay (tpd)	12.5 ns
Qualification Status	Not Qualified
Seated Height-Max	1.2 mm
Sub Category	FF/Latches
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Trigger Type	POSITIVE EDGE
Width	4.4 mm
fmax-Min	70 MHz
