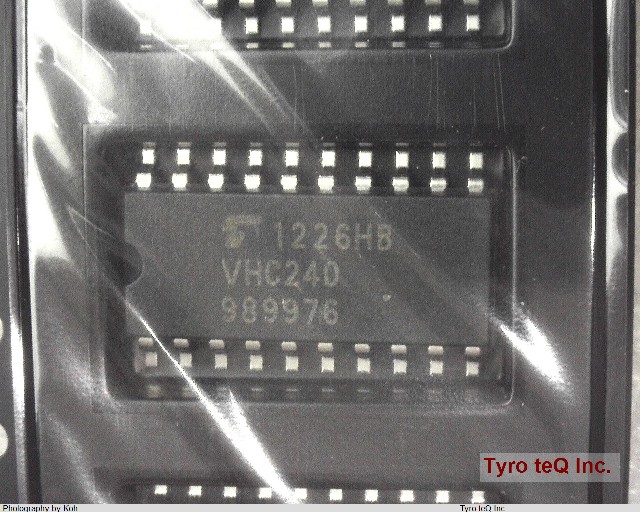

TC74VHC240F(ELKF

Name: TC74VHC240F(ELKF
Brand: TOSHIBA
SKU: 300285942-0000-0000-0000

TC74VHC240F(ELKF - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

CMOSロジックIC | 74VHCシリーズ|パッケージ : SOP

TC74VHC240F(ELKF の詳細情報

型番	TC74VHC240F(ELKF
メーカー	TOSHIBA
種別	CMOSロジックIC
Family	AHC/VHC/H/U/V
JESD-30 Code	R-PDSO-G20
Length	12.8 mm
Logic IC Type	BUS DRIVER
Number of Bits	4
Number of Functions	2
Number of Ports	2
Number of Terminals	20
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	3-STATE
Output Polarity	INVERTED
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Propagation Delay (tpd)	12.5 ns
Seated Height-Max	1.9 mm
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	5.3 mm
