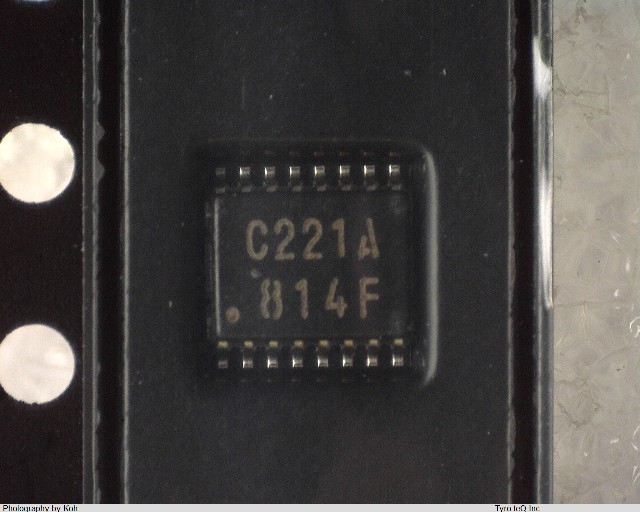

TC74VHC221AFK データシート

Name: TC74VHC221AFK
Brand: TOSHIBA
SKU: 300377502-0000-0000-0000

TC74VHC221AFK - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

CMOSロジックIC | 74VHCシリーズ|パッケージ : US

TC74VHC221AFK の詳細情報

型番	TC74VHC221AFK
メーカー	TOSHIBA
カテゴリ	その他-汎用IC
種別	CMOSロジックIC
データシート
Family	AHC/VHC
IBIS	IBIS
IO (Min)(mA)	8
JESD-30 Code	R-PDSO-G16
Length	4 mm
Load Capacitance (CL)	50 pF
Logic IC Type	MONOSTABLE MULTIVIBRATOR
Number of Data/Clock Inputs	2
Number of Functions	2
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Polarity	COMPLEMENTARY
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP16,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	2/5.5 V
Power Supply Current-Max (ICC)	0.975 mA
Propagation Delay (tpd)	27.5 ns
Qualification Status	Not Qualified
Seated Height-Max	1 mm
Sub Category	Prescaler/Multivibrators
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
VCC (Max)(V)	5.5
VCC (Min)(V)	2
Width	3 mm
tpd_tpz (Typ.)(nsec)	8.1
グループ	TC74VHC
ピン数	16
回路数	2
機能1	Multivibrator
機能2	Monostable Multivibrator
面実装区分	Y
