TC74VHC165FK データシート

Name: TC74VHC165FK
Brand: TOSHIBA
SKU: 300354472-0000-0000-0000

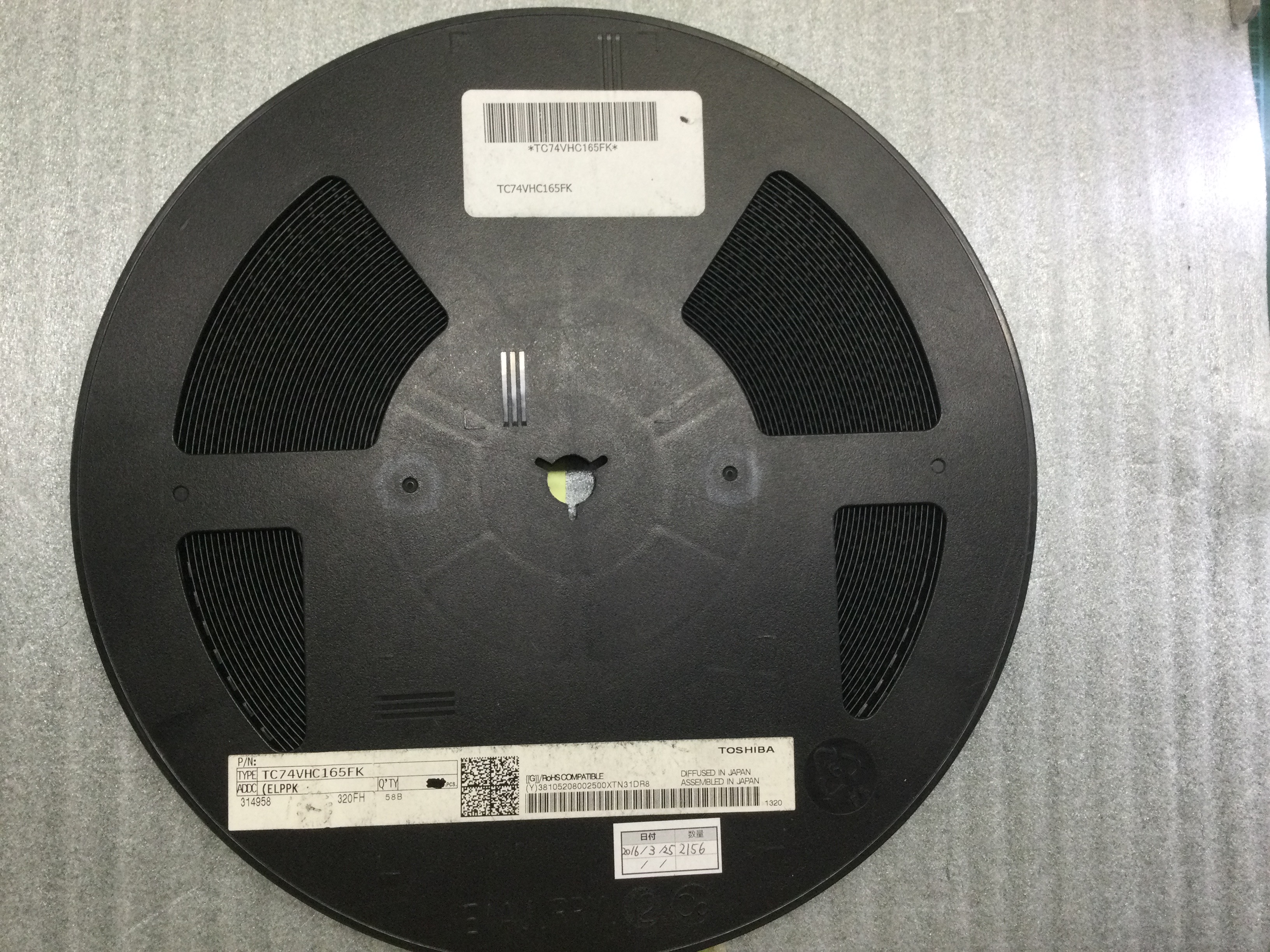

TC74VHC165FK - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

CMOSロジックIC | 74VHCシリーズ|パッケージ : US

TC74VHC165FK の詳細情報

型番	TC74VHC165FK
メーカー	TOSHIBA
カテゴリ	その他-汎用IC
種別	CMOSロジックIC
データシート
Additional Feature	SISO OPERATION ALSO AVAILABLE
Count Direction	RIGHT
Family	AHC/VHC
IBIS	IBIS
IO (Min)(mA)	8
JESD-30 Code	R-PDSO-G16
Length	4 mm
Logic IC Type	PARALLEL IN SERIAL OUT
Max Frequency@Nom-Sup	50000000 Hz
Number of Bits	8
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Polarity	COMPLEMENTARY
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP16,.16,20
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Power Supplies	2/5.5 V
Propagation Delay (tpd)	21.5 ns
Qualification Status	Not Qualified
Seated Height-Max	1 mm
Sub Category	Shift Registers
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	DUAL
Trigger Type	POSITIVE EDGE
VCC (Max)(V)	5.5
VCC (Min)(V)	2
Width	3 mm
fmax-Min	90 MHz
tpd_tpz (Typ.)(nsec)	6.6
グループ	TC74VHC
ピン数	16
回路数	1
機能1	Shift Register
機能2	Parallel-In/Serial-Out Shift Register
面実装区分	Y
