TC74VHC14FT(EL) データシート

Name: TC74VHC14FT(EL)
Brand: TOSHIBA
SKU: 300222927-0000-0000-0000

TC74VHC14FT(EL) - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

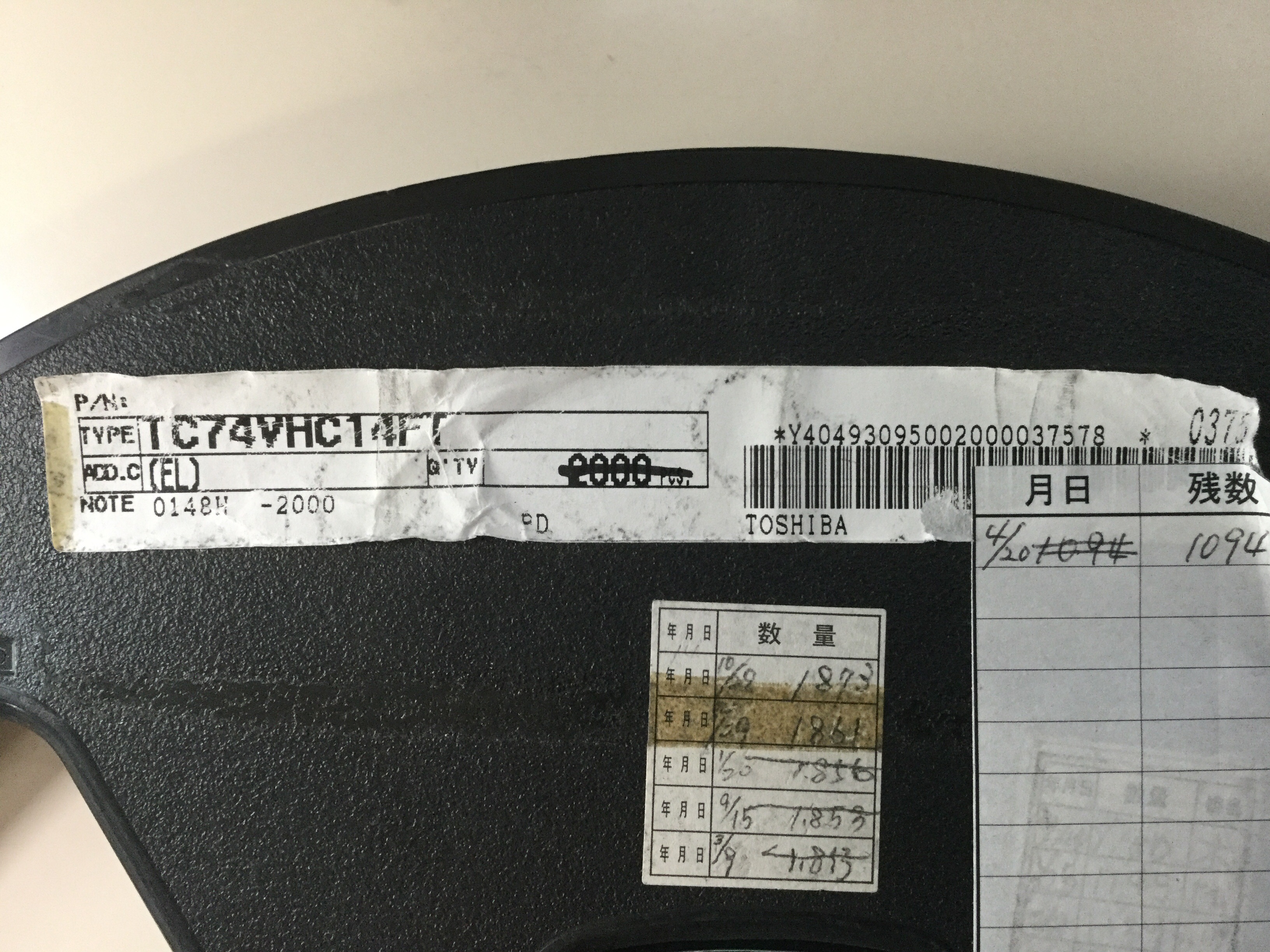

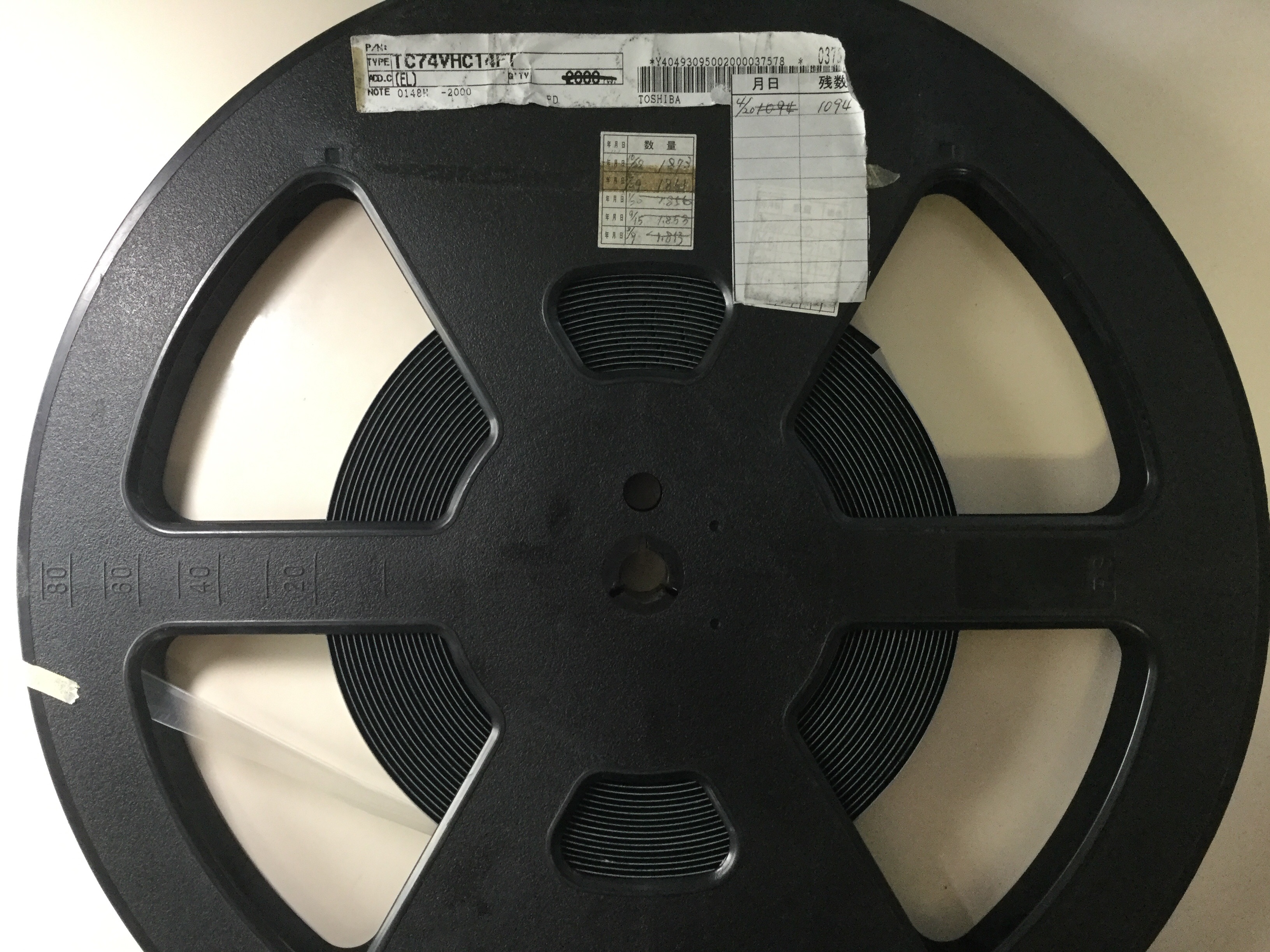

EL:エンボスリール左巻|CMOSロジックIC | 74VHCシリーズ|パッケージ : TSSOP

TC74VHC14FT(EL) の詳細情報

型番	TC74VHC14FT(EL)
メーカー	TOSHIBA
種別	CMOSロジックIC
データシート
Family	AHC/VHC
JESD-30 Code	R-PDSO-G14
JESD-609 Code	e0
Length	5 mm
Load Capacitance (CL)	50 pF
Logic IC Type	INVERTER
Max I(ol)	0.008 Amp
Number of Functions	6
Number of Inputs	1
Number of Terminals	14
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP14,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	2/5.5 V
Prop. Delay@Nom-Sup	12 ns
Propagation Delay (tpd)	12 ns
Qualification Status	Not Qualified
Schmitt Trigger	YES
Seated Height-Max	1.2 mm
Sub Category	Gates
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	0.635 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	4.4 mm
