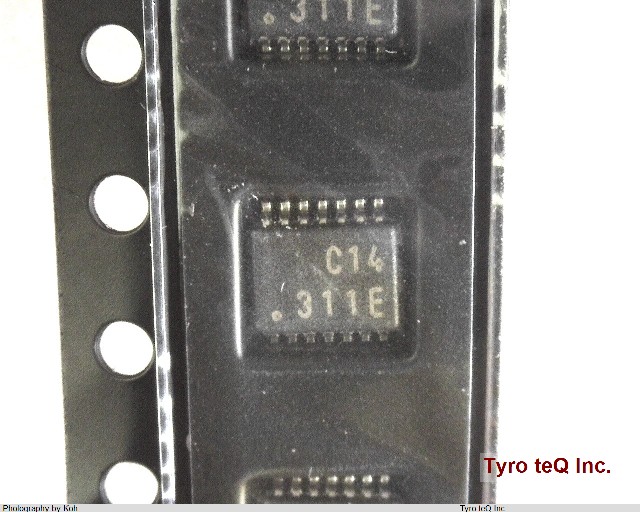

TC74VHC14FK(ELK)

Name: TC74VHC14FK(ELK)
Brand: TOSHIBA
SKU: 300345610-0000-0000-0000

TC74VHC14FK(ELK) - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

CMOSロジックIC | 74VHCシリーズ|パッケージ : US

TC74VHC14FK(ELK) の詳細情報

型番	TC74VHC14FK(ELK)
メーカー	TOSHIBA
種別	CMOSロジックIC
Family	AHC/VHC/H/U/V
JESD-30 Code	R-PDSO-G14
Length	4 mm
Logic IC Type	INVERTER
Number of Functions	6
Number of Inputs	1
Number of Terminals	14
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	VSSOP
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Propagation Delay (tpd)	18.5 ns
Seated Height-Max	1 mm
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	3 mm
