TC74VHC138FT(EL) データシート

Name: TC74VHC138FT(EL)
Brand: TOSHIBA
SKU: 300019366-0000-0000-0000

TC74VHC138FT(EL) - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

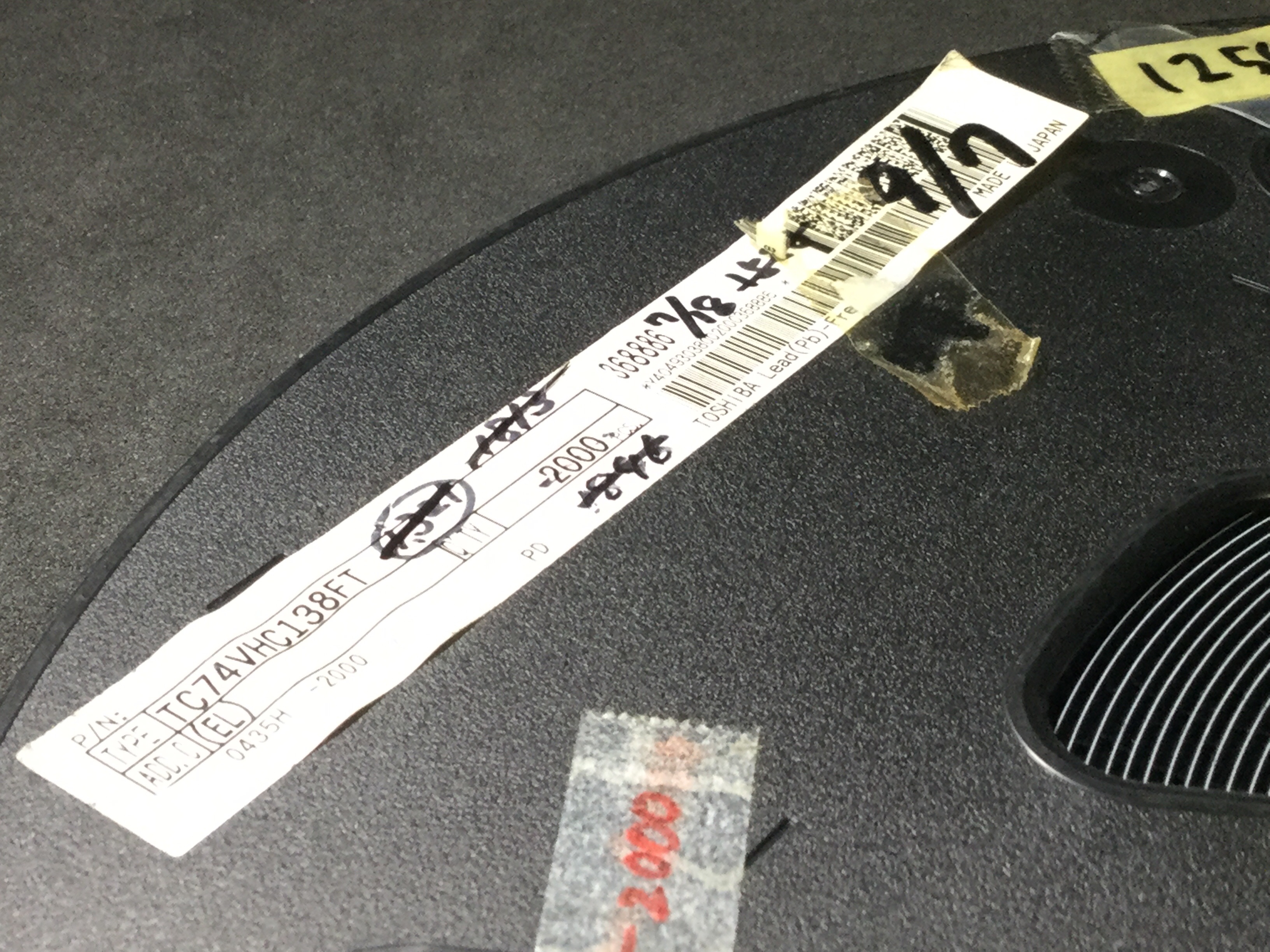

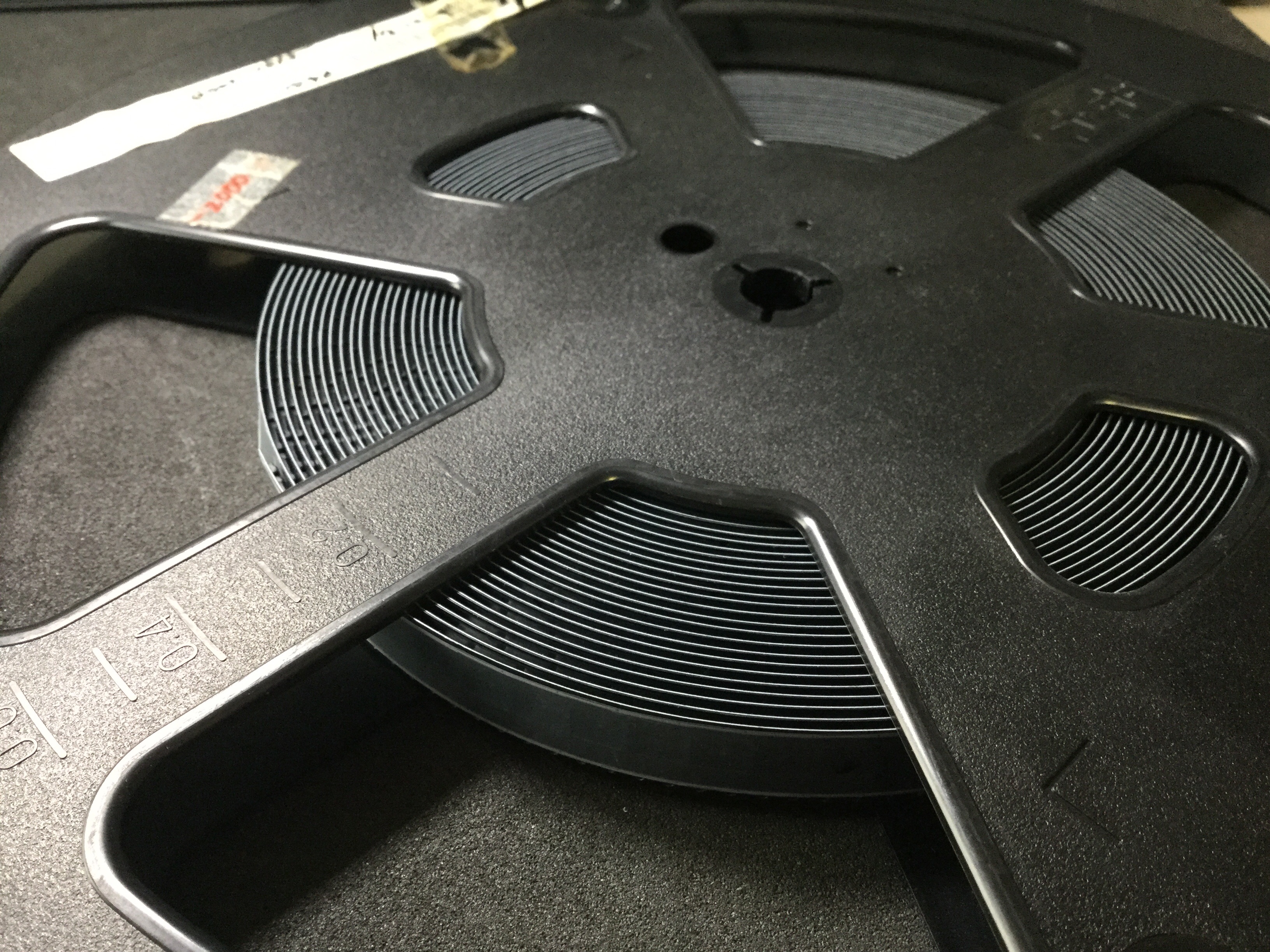

EL:エンボスリール左巻|CMOSロジックIC | 74VHCシリーズ|パッケージ : TSSOP

TC74VHC138FT(EL) の詳細情報

型番	TC74VHC138FT(EL)
メーカー	TOSHIBA
種別	CMOSロジックIC
データシート
Family	AHC/VHC
Input Conditioning	STANDARD
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e4
Length	5 mm
Load Capacitance (CL)	50 pF
Logic IC Type	OTHER DECODER/DRIVER
Max I(ol)	0.008 Amp
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Polarity	INVERTED
Package Body Material	PLASTIC/EPOXY
Package Code	TSOP1
Package Equivalence Code	TSSOP16,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	2/5.5 V
Prop. Delay@Nom-Sup	11.5 ns
Propagation Delay (tpd)	11.5 ns
Qualification Status	Not Qualified
Seated Height-Max	1.2 mm
Sub Category	Decoder/Drivers
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Gold (Au)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	4.4 mm
