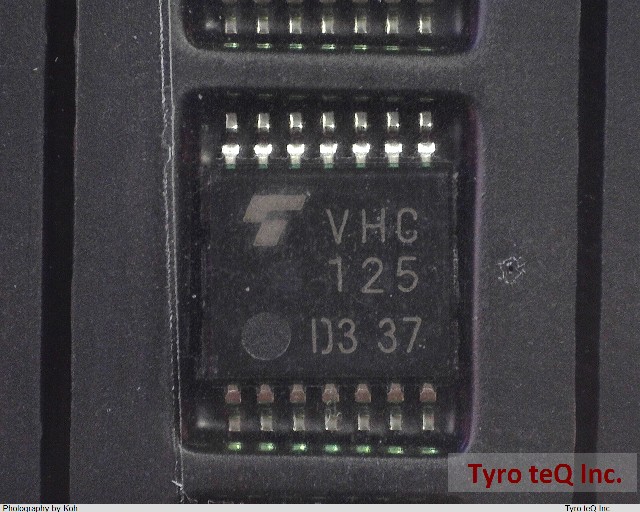

TC74VHC125FT(EL,K) データシート

Name: TC74VHC125FT(EL,K)
Brand: TOSHIBA
SKU: 300310017-0000-0000-0000

TC74VHC125FT(EL,K) - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

CMOSロジックIC | 74VHCシリーズ|パッケージ : TSSOP

TC74VHC125FT(EL,K) の詳細情報

型番	TC74VHC125FT(EL,K)
メーカー	TOSHIBA
種別	CMOSロジックIC
データシート
Control Type	ENABLE LOW
Family	AHC/VHC/H/U/V
JESD-30 Code	R-PDSO-G14
Length	5 mm
Logic IC Type	BUS DRIVER
Max I(ol)	0.008 Amp
Number of Bits	1
Number of Functions	1
Number of Ports	2
Number of Terminals	14
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	3-STATE
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP14,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Packing Method	TR
Power Supplies	2/5.5 V
Prop. Delay@Nom-Sup	8.5 ns
Propagation Delay (tpd)	13 ns
Qualification Status	Not Qualified
Seated Height-Max	1.2 mm
Sub Category	Bus Driver/Transceivers
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	0.635 mm
Terminal Position	DUAL
Width	4.4 mm
