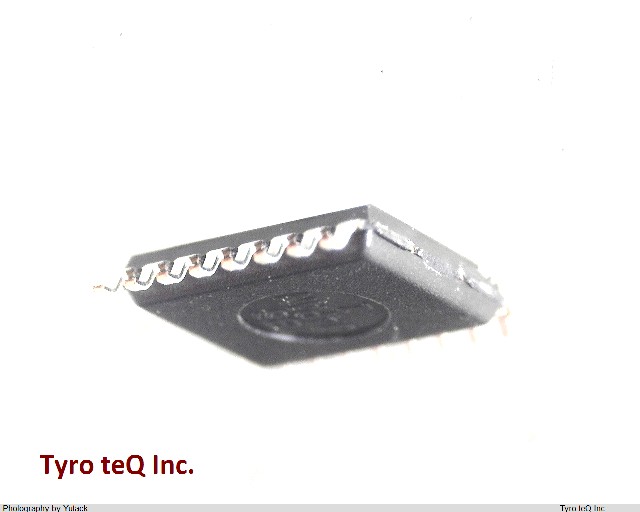

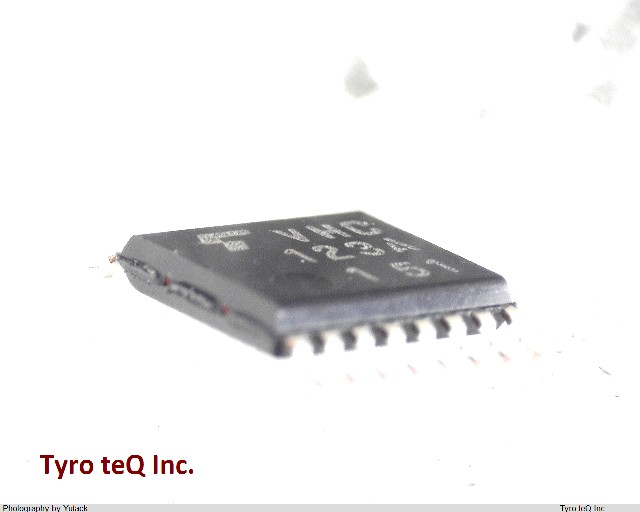

TC74VHC123AFT データシート

Name: TC74VHC123AFT
Brand: TOSHIBA
SKU: 300000934-0000-0000-0000

TC74VHC123AFT - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

CMOSロジックIC | 74VHCシリーズ|パッケージ : TSSOP

TC74VHC123AFT の詳細情報

型番	TC74VHC123AFT
メーカー	TOSHIBA
カテゴリ	その他-汎用IC
種別	CMOSロジックIC
データシート
Additional Feature	RETRIGGERABLE
Family	AHC/VHC
IO (Min)(mA)	8
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e0
Length	5 mm
Load Capacitance (CL)	50 pF
Logic IC Type	MONOSTABLE MULTIVIBRATOR
Number of Data/Clock Inputs	2
Number of Functions	2
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Polarity	COMPLEMENTARY
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP16,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	2/5.5 V
Propagation Delay (tpd)	17 ns
Qualification Status	Not Qualified
Seated Height-Max	1.2 mm
Sub Category	Prescaler/Multivibrators
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
VCC (Max)(V)	5.5
VCC (Min)(V)	2
Width	4.4 mm
tpd_tpz (Typ.)(nsec)	8.1
グループ	TC74VHC
データシート
ピン数	16
ライフサイクル
機能1	Multivibrator
機能2	Monostable Multivibrator
面実装区分	Y
