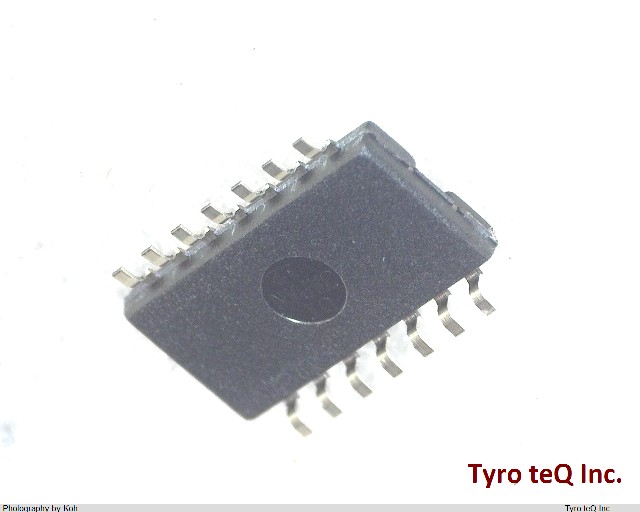

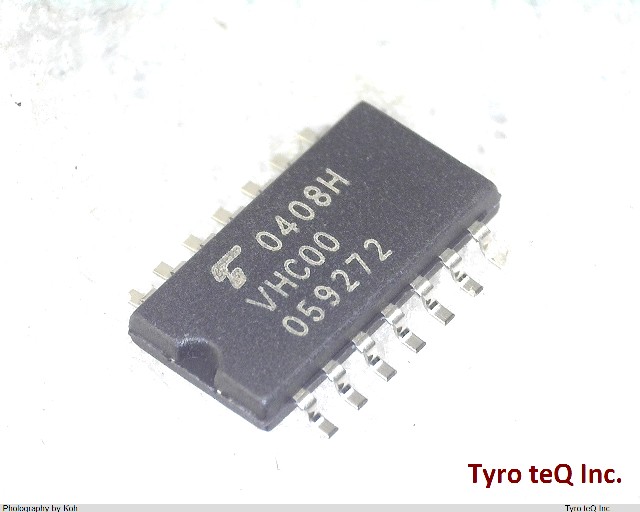

TC74VHC00F データシート

Name: TC74VHC00F
Brand: TOSHIBA
SKU: 300008114-0000-0000-0000

TC74VHC00F - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

CMOSロジックIC | 74VHCシリーズ|パッケージ : SOP

TC74VHC00F の詳細情報

型番	TC74VHC00F
メーカー	TOSHIBA
カテゴリ	その他-汎用IC
種別	CMOSロジックIC
データシート
Family	AHC/VHC
IBIS	IBIS
IO (Min)(mA)	8
JESD-30 Code	R-PDSO-G14
JESD-609 Code	e0
Length	4 mm
Load Capacitance (CL)	50 pF
Logic IC Type	NAND GATE
Max I(ol)	0.008 Amp
Moisture Sensitivity Level	1
Number of Functions	4
Number of Inputs	2
Number of Terminals	14
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	LSSOP
Package Equivalence Code	SOP14,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	225
Power Supplies	2/5.5 V
Prop. Delay@Nom-Sup	8.5 ns
Propagation Delay (tpd)	8.5 ns
Qualification Status	Not Qualified
Schmitt Trigger	NO
Seated Height-Max	1 mm
Sub Category	Gates
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	40
VCC (Max)(V)	5.5
VCC (Min)(V)	2
Width	3 mm
tpd_tpz (Typ.)(nsec)	3.7
グループ	TC74VHC
ピン数	14
回路数	4
機能1	Gate
機能2	NAND
面実装区分	Y
