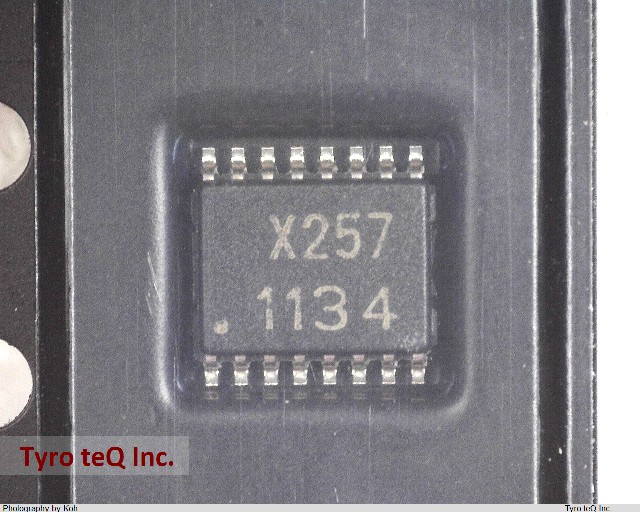

TC74VCX257FK データシート

Name: TC74VCX257FK
Brand: TOSHIBA
SKU: 300377491-0000-0000-0000

TC74VCX257FK - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

低電圧CMOSロジックIC | 74VCXシリーズ|パッケージ : US

TC74VCX257FK の詳細情報

型番	TC74VCX257FK
メーカー	TOSHIBA
カテゴリ	その他-汎用IC
種別	低電圧CMOSロジックIC
データシート
Family	ALVC/VCX/A
IBIS	IBIS
IO (Min)(mA)	24
JESD-30 Code	R-PDSO-G16
Length	4 mm
Load Capacitance (CL)	30 pF
Logic IC Type	MULTIPLEXER
Max I(ol)	0.024 Amp
Number of Functions	4
Number of Inputs	2
Number of Outputs	1
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	3-STATE
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	VSSOP
Package Equivalence Code	TSSOP16,.16,20
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	3.3 V
Prop. Delay@Nom-Sup	3 ns
Propagation Delay (tpd)	40 ns
Qualification Status	Not Qualified
Seated Height-Max	1 mm
Sub Category	Multiplexer/Demultiplexers
Supply Voltage-Max (Vsup)	3.6 V
Supply Voltage-Min (Vsup)	1.2 V
Supply Voltage-Nom (Vsup)	1.5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
VCC (Max)(V)	3.6
VCC (Min)(V)	1.2
Width	3 mm
tpd_tpz (Typ.)(nsec)
グループ	TC74VCX
ピン数	16
回路数	4
機能1	Multiplexer
機能2	2-Channel Multiplexer
面実装区分	Y
