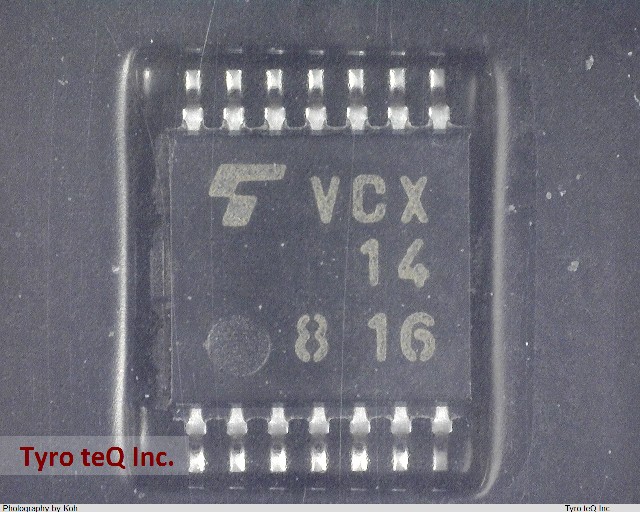

TC74VCX14FT データシート

Name: TC74VCX14FT
Brand: TOSHIBA
SKU: 300238375-0000-0000-0000

TC74VCX14FT - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

低電圧CMOSロジックIC | 74VCXシリーズ|パッケージ : TSSOP

TC74VCX14FT の詳細情報

型番	TC74VCX14FT
メーカー	TOSHIBA
カテゴリ	その他-汎用IC
種別	低電圧CMOSロジックIC
データシート
Family	ALVC/VCX/A
IBIS	IBIS
IO (Min)(mA)	24
JESD-30 Code	R-PDSO-G14
Length	5 mm
Load Capacitance (CL)	30 pF
Logic IC Type	INVERTER
Max I(ol)	0.024 Amp
Number of Functions	6
Number of Inputs	1
Number of Terminals	14
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP14,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	3.3 V
Power Supply Current-Max (ICC)	100 mA
Propagation Delay (tpd)	56 ns
Qualification Status	Not Qualified
Schmitt Trigger	YES
Seated Height-Max	1.2 mm
Sub Category	Gates
Supply Voltage-Max (Vsup)	3.6 V
Supply Voltage-Min (Vsup)	1.2 V
Supply Voltage-Nom (Vsup)	1.4 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
VCC (Max)(V)	3.6
VCC (Min)(V)	1.2
Width	4.4 mm
tpd_tpz (Typ.)(nsec)
グループ	TC74VCX
ピン数	14
回路数	6
機能1	Gate
機能2	Schmitt Inverter
面実装区分	Y
