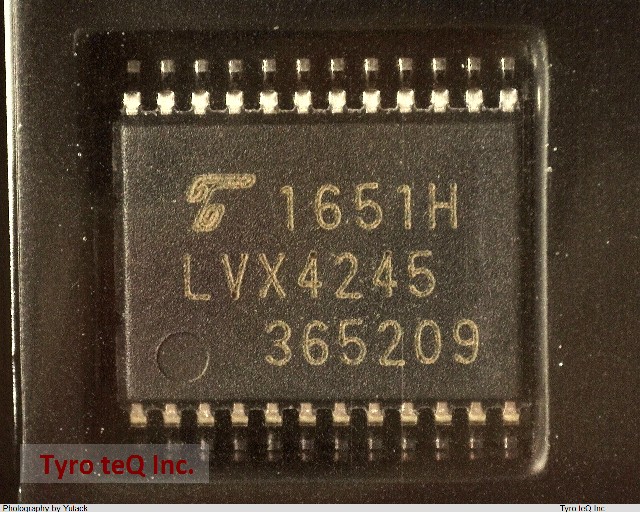

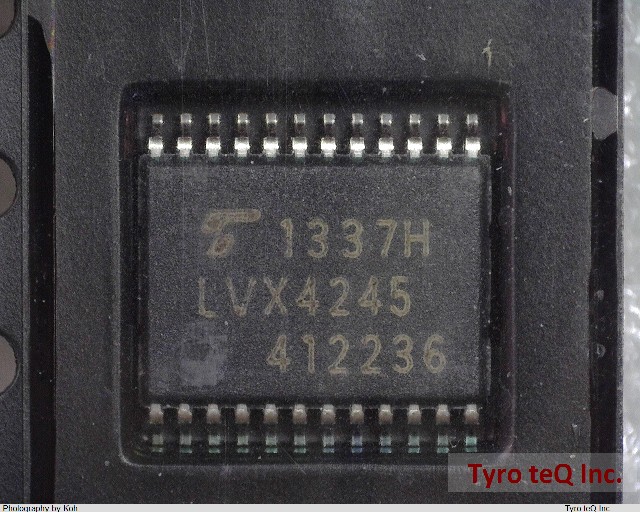

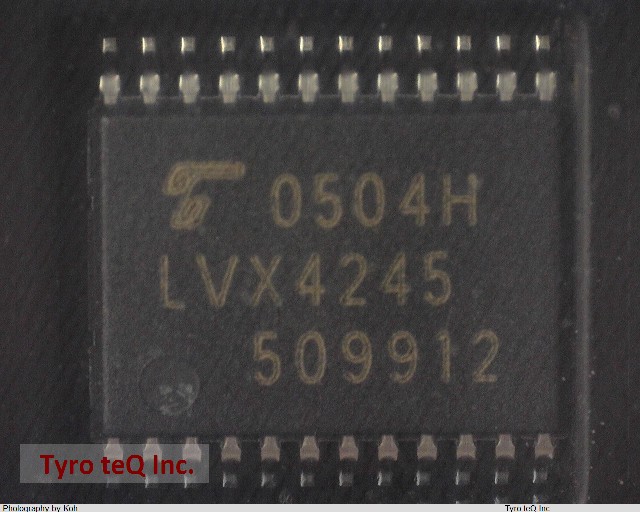

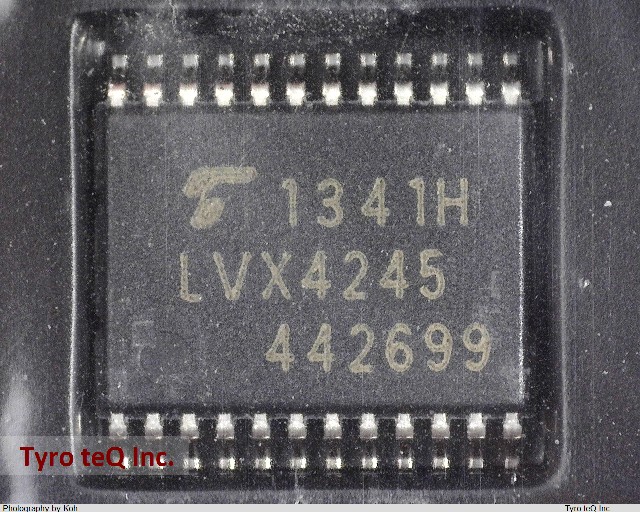

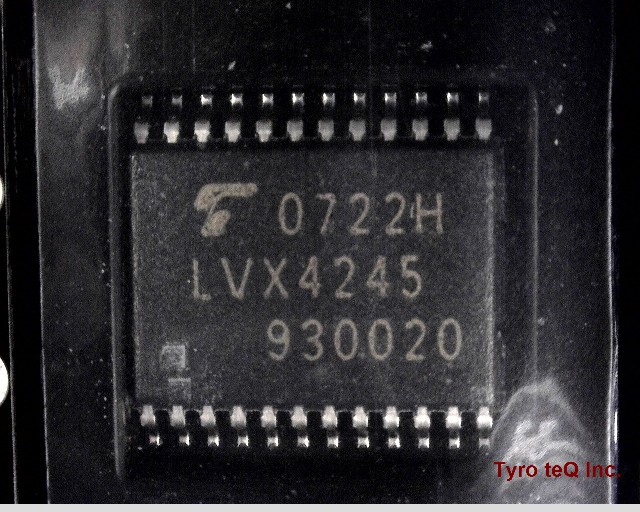

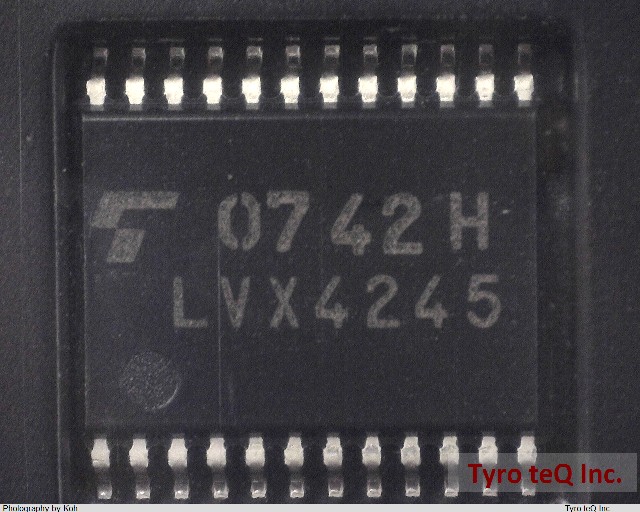

TC74LVX4245FS(EL,F データシート

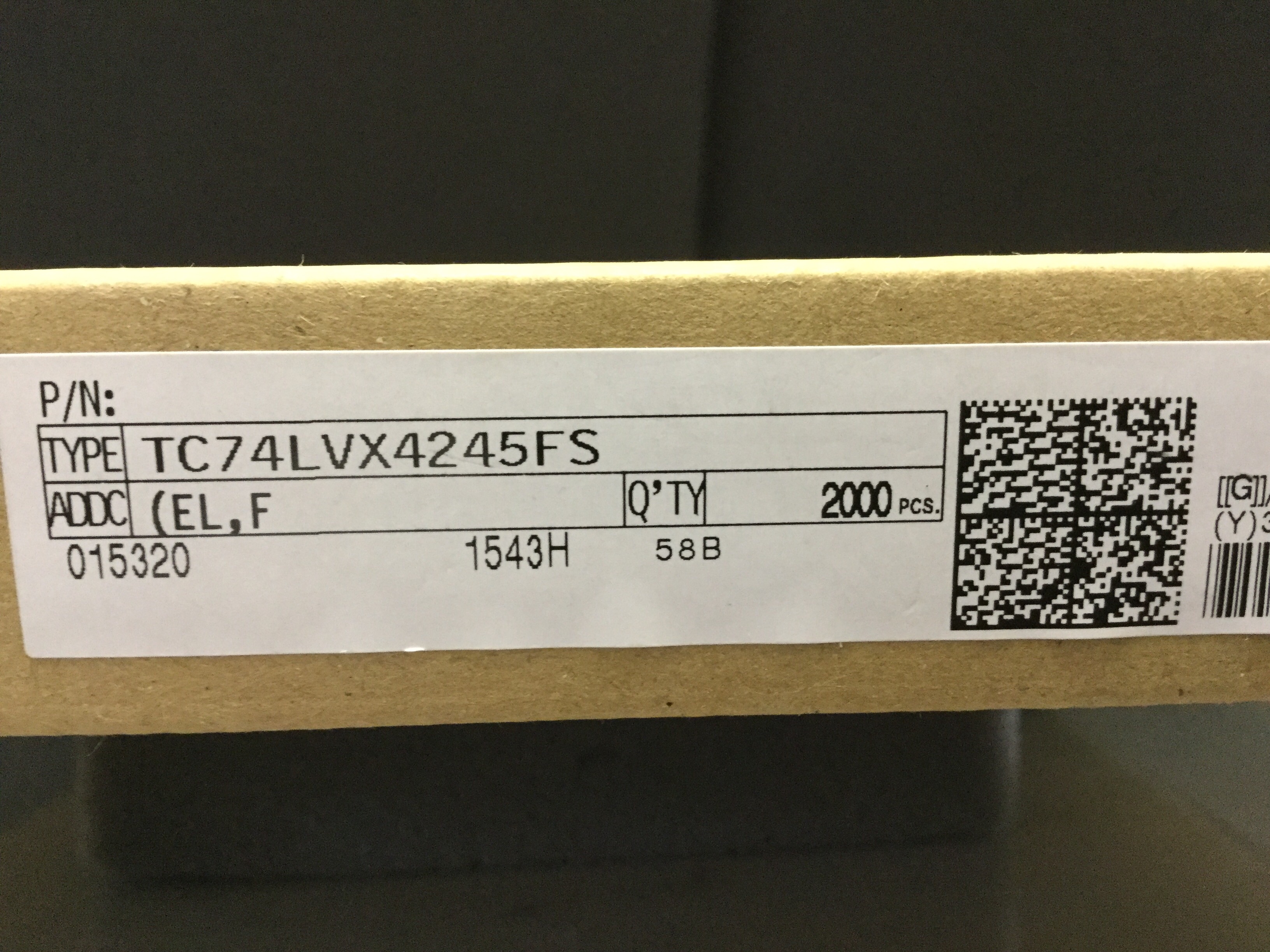

Name: TC74LVX4245FS(EL,F
Brand: TOSHIBA
SKU: 300221371-0000-0000-0000

TC74LVX4245FS(EL,F - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

低電圧CMOSロジックIC | 74LVXシリーズ|パッケージ : SSOP

TC74LVX4245FS(EL,F の詳細情報

型番	TC74LVX4245FS(EL,F
メーカー	TOSHIBA
種別	低電圧CMOSロジックIC
データシート
Control Type	COMMON CONTROL
Count Direction	BIDIRECTIONAL
Family	LV/LV-A/LVX/H
JESD-30 Code	R-PDSO-G24
Length	7.8 mm
Logic IC Type	BUS TRANSCEIVER
Max I(ol)	0.024 Amp
Number of Bits	8
Number of Functions	1
Number of Ports	2
Number of Terminals	24
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	3-STATE
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	LSSOP
Package Equivalence Code	SSOP24,.24
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH Meter
Packing Method	TR
Power Supplies	3.3 V
Prop. Delay@Nom-Sup	9.5 ns
Propagation Delay (tpd)	10.5 ns
Qualification Status	Not Qualified
Seated Height-Max	1.6 mm
Sub Category	Bus Driver/Transceivers
Supply Voltage-Max (Vsup)	3.6 V
Supply Voltage-Min (Vsup)	2.7 V
Supply Voltage-Nom (Vsup)	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Translation	3V & 5V
Width	5.6 mm
