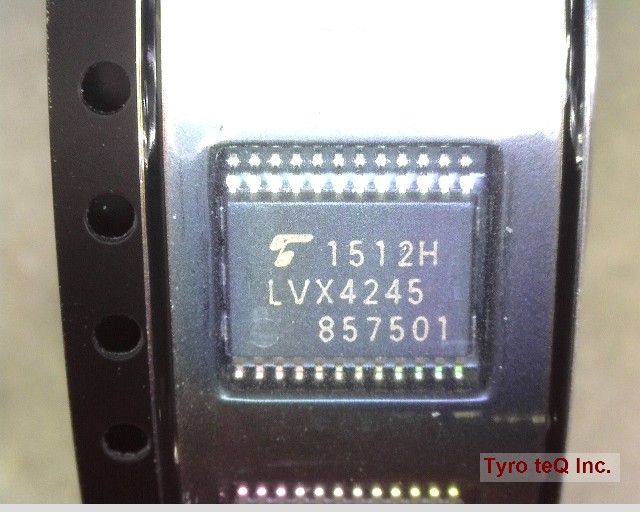

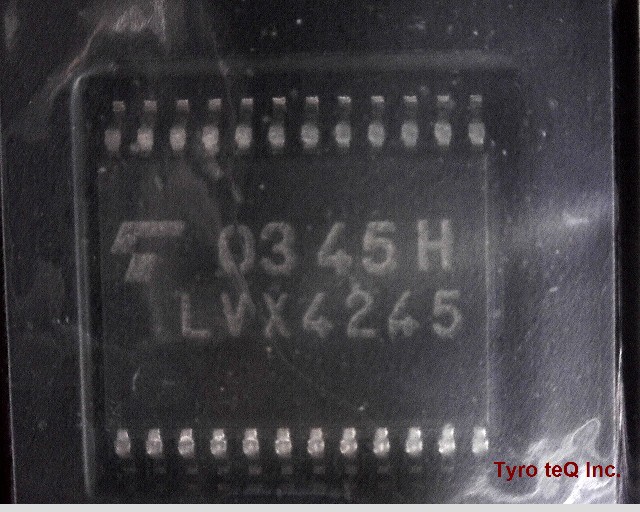

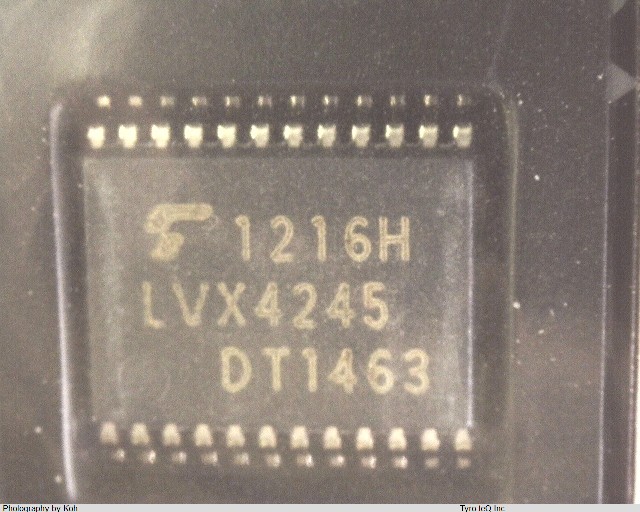

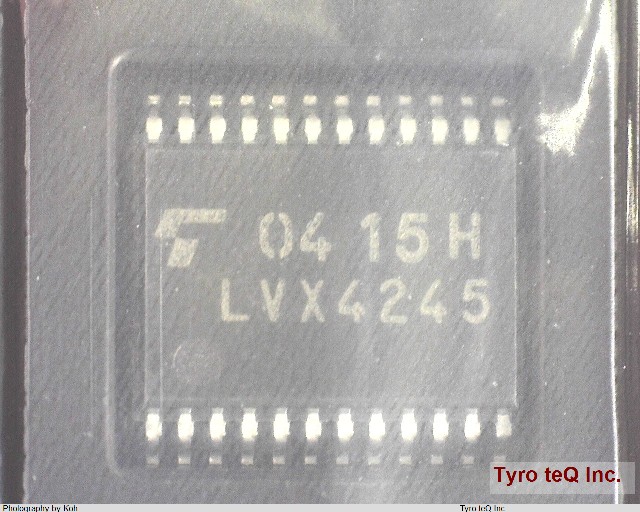

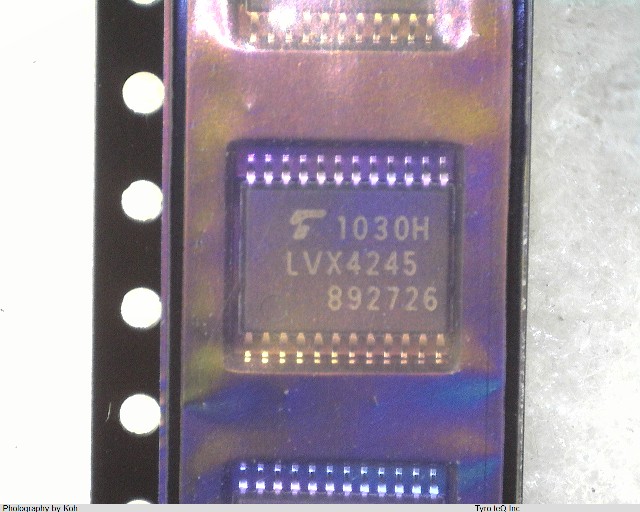

TC74LVX4245FS データシート

Name: TC74LVX4245FS
Brand: TOSHIBA
SKU: 300013411-0000-0000-0000

TC74LVX4245FS - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

低電圧CMOSロジックIC | 74LVXシリーズ|パッケージ : SSOP

TC74LVX4245FS の詳細情報

型番	TC74LVX4245FS
メーカー	TOSHIBA
種別	低電圧CMOSロジックIC
データシート
Additional Feature	3.3V TO 5V BIDIRECTIONAL LEVEL TRANSLATOR; 5V SUPPLY FOR PORT A; 3.3V SUPPLY FOR PORT B
Control Type	COMMON CONTROL
Count Direction	BIDIRECTIONAL
Family	LV/LV-A/LVX/H
JESD-30 Code	R-PDSO-G20
Length	7.8 mm
Load Capacitance (CL)	50 pF
Logic IC Type	BUS TRANSCEIVER
Max I(ol)	0.024 Amp
Number of Bits	8
Number of Functions	1
Number of Ports	2
Number of Terminals	20
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	3-STATE
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	LSSOP
Package Equivalence Code	SSOP24,.24
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	3.3 V
Prop. Delay@Nom-Sup	9.5 ns
Propagation Delay (tpd)	9.5 ns
Qualification Status	Not Qualified
Seated Height-Max	1.6 mm
Sub Category	Bus Driver/Transceivers
Supply Voltage-Max (Vsup)	3.6 V
Supply Voltage-Min (Vsup)	2.7 V
Supply Voltage-Nom (Vsup)	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Translation	3V & 5V
Width	5.6 mm
