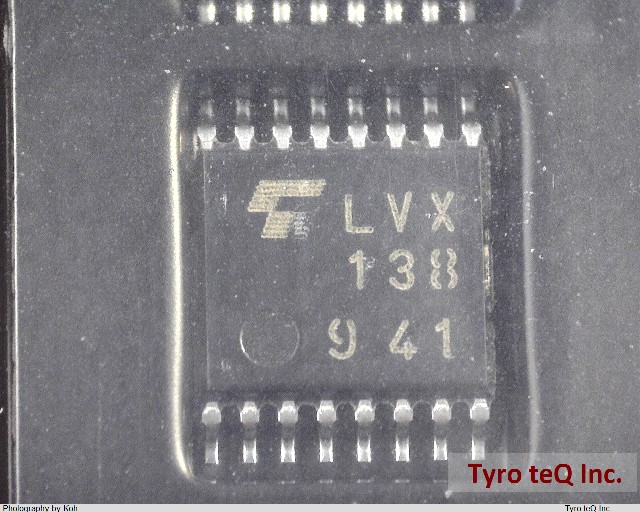

TC74LVX138FT データシート

Name: TC74LVX138FT
Brand: TOSHIBA
SKU: 300019248-0000-0000-0000

TC74LVX138FT - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

低電圧CMOSロジックIC | 74LVXシリーズ|パッケージ : TSSOP

TC74LVX138FT の詳細情報

型番	TC74LVX138FT
メーカー	TOSHIBA
種別	低電圧CMOSロジックIC
データシート
Additional Feature	3 ENABLE INPUTS
Family	LV/LV-A/LVX/H
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e4
Load Capacitance (CL)	50 pF
Logic IC Type	OTHER DECODER/DRIVER
Max I(ol)	0.004 Amp
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Polarity	INVERTED
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	TSSOP16,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	3.3 V
Prop. Delay@Nom-Sup	14 ns
Propagation Delay (tpd)	20 ns
Qualification Status	Not Qualified
Sub Category	Decoder/Drivers
Supply Voltage-Max (Vsup)	3.6 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	2.7 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	0.635 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
