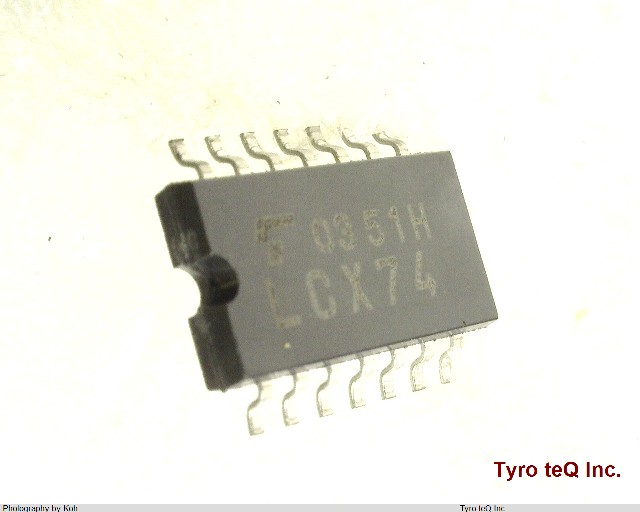

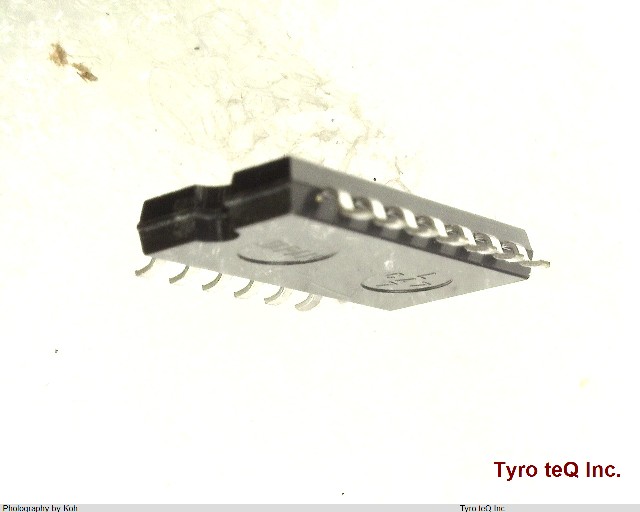

TC74LCX74F データシート

Name: TC74LCX74F
Brand: TOSHIBA
SKU: 300019228-0000-0000-0000

TC74LCX74F - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

低電圧CMOSロジックIC | 74LCXシリーズ|パッケージ : SOP

TC74LCX74F の詳細情報

型番	TC74LCX74F
メーカー	TOSHIBA
カテゴリ	その他-汎用IC
種別	低電圧CMOSロジックIC
データシート
Additional Feature	NOT AVAILABLE IN JAPAN
Family	LVC/LCX/Z
IBIS	IBIS
IO (Min)(mA)	24
JESD-30 Code	R-PDSO-G14
JESD-609 Code	e0
Length	4 mm
Load Capacitance (CL)	50 pF
Logic IC Type	D FLIP-FLOP
Max Frequency@Nom-Sup	150000000 Hz
Max I(ol)	0.024 Amp
Number of Bits	1
Number of Functions	2
Number of Terminals	14
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Polarity	COMPLEMENTARY
Package Body Material	PLASTIC/EPOXY
Package Code	LSSOP
Package Equivalence Code	SOP14,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	240
Power Supplies	3.3 V
Power Supply Current-Max (ICC)	100 mA
Prop. Delay@Nom-Sup	7 ns
Propagation Delay (tpd)	7 ns
Qualification Status	Not Qualified
Seated Height-Max	1 mm
Sub Category	FF/Latches
Supply Voltage-Max (Vsup)	3.6 V
Supply Voltage-Min (Vsup)	1.65 V
Supply Voltage-Nom (Vsup)	1.8 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	NICKEL/PALLADIUM/GOLD (NI/PD/AU)
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Trigger Type	POSITIVE EDGE
VCC (Max)(V)	3.6
VCC (Min)(V)	1.65
Width	3 mm
fmax-Min	150 MHz
tpd_tpz (Typ.)(nsec)
グループ	TC74LCX
ピン数	14
回路数	2
機能1	Flip-Flop
機能2	D-Type Flip-Flop
面実装区分	Y
