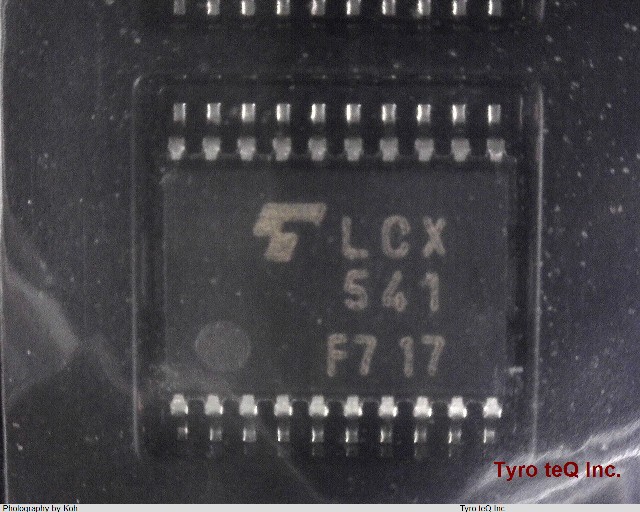

TC74LCX541FK データシート

Name: TC74LCX541FK
Brand: TOSHIBA
SKU: 300391729-0000-0000-0000

TC74LCX541FK - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

低電圧CMOSロジックIC | 74LCXシリーズ|パッケージ : US

TC74LCX541FK の詳細情報

型番	TC74LCX541FK
メーカー	TOSHIBA
カテゴリ	その他-汎用IC
種別	低電圧CMOSロジックIC
データシート
Control Type	ENABLE LOW
Family	LVC/LCX/Z
IBIS	IBIS
IO (Min)(mA)	24
JESD-30 Code	R-PDSO-G20
Length	5 mm
Logic IC Type	BUS DRIVER
Max I(ol)	0.024 Amp
Number of Bits	8
Number of Functions	1
Number of Ports	2
Number of Terminals	20
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	3-STATE
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	VSSOP
Package Equivalence Code	TSSOP20,.16,20
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	3.3 V
Prop. Delay@Nom-Sup	6.5 ns
Propagation Delay (tpd)	25 ns
Qualification Status	Not Qualified
Seated Height-Max	1 mm
Sub Category	Bus Driver/Transceivers
Supply Voltage-Max (Vsup)	3.6 V
Supply Voltage-Min (Vsup)	1.65 V
Supply Voltage-Nom (Vsup)	1.8 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
VCC (Max)(V)	3.6
VCC (Min)(V)	1.65
Width	3 mm
tpd_tpz (Typ.)(nsec)
グループ	TC74LCX
ピン数	20
回路数	8
機能1	Gate
機能2	Bus Buffer
面実装区分	Y
