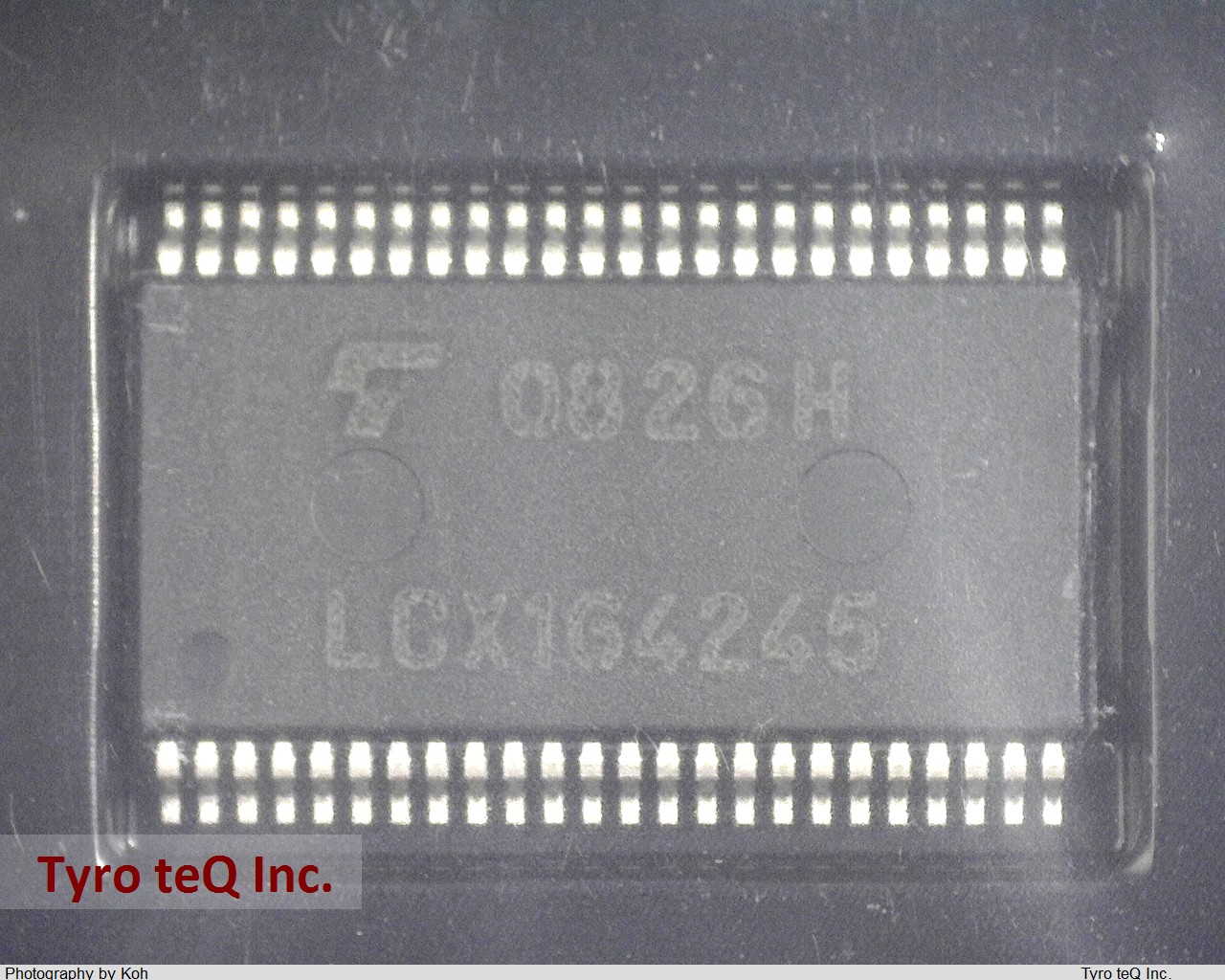

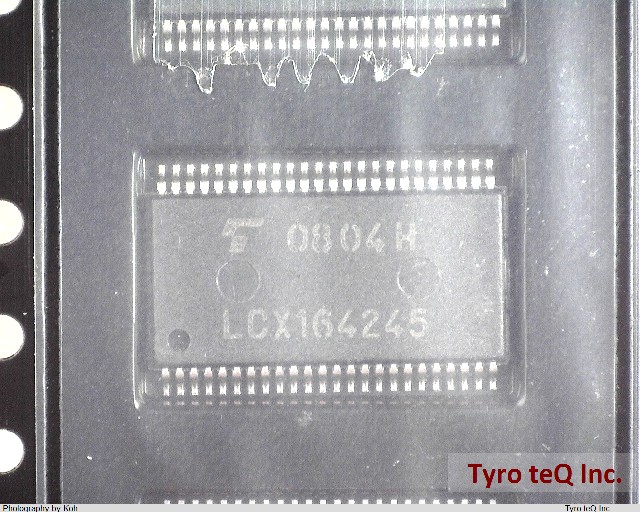

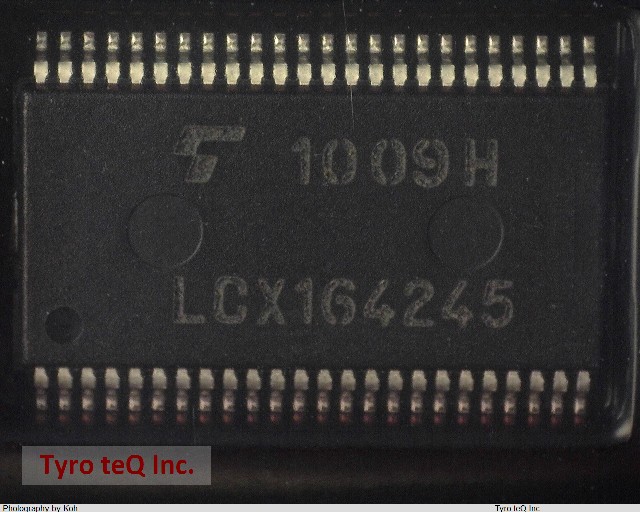

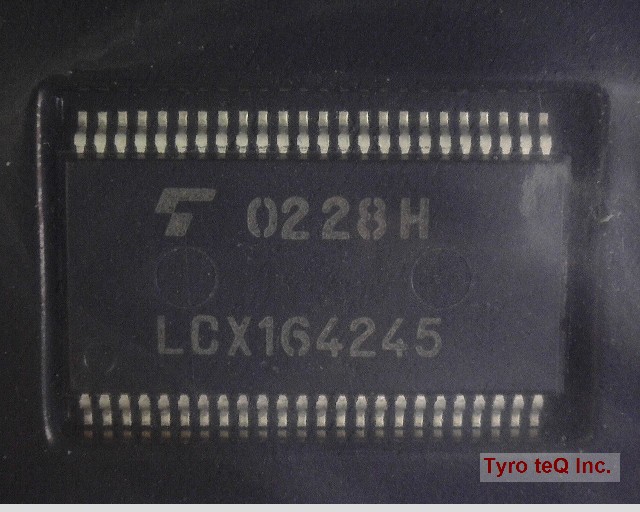

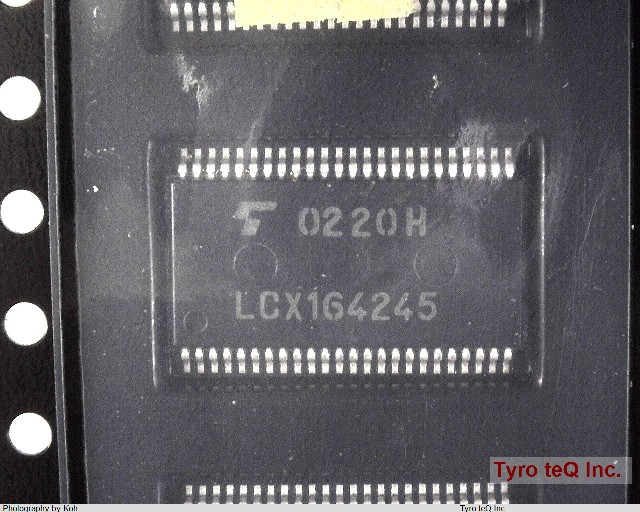

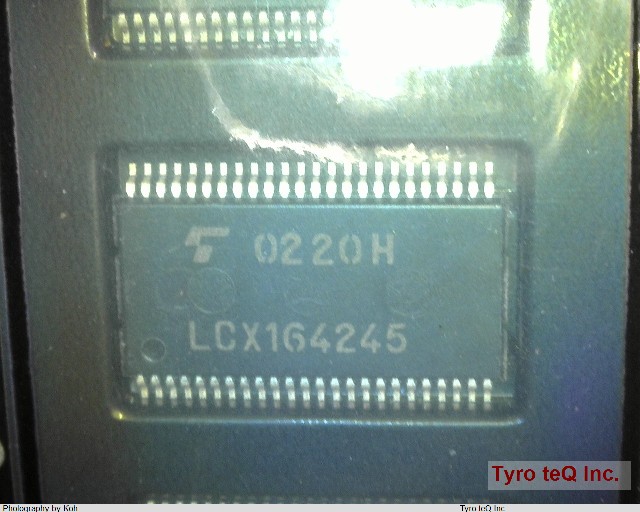

TC74LCX164245FT データシート

Name: TC74LCX164245FT
Brand: TOSHIBA
SKU: 300238360-0000-0000-0000

TC74LCX164245FT - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

低電圧CMOSロジックIC | 74LCXシリーズ|パッケージ : TSSOP

TC74LCX164245FT の詳細情報

型番	TC74LCX164245FT
メーカー	TOSHIBA
カテゴリ	その他-汎用IC
種別	低電圧CMOSロジックIC
データシート
Additional Feature	PORT B OPERATES WITH 4.5 TO 5.5V SUPPLY
Control Type	COMMON CONTROL
Count Direction	BIDIRECTIONAL
Family	LVC/LCX/Z
IBIS
IO (Min)(mA)	24
JESD-30 Code	R-PDSO-G48
Length	12.5 mm
Load Capacitance (CL)	50 pF
Logic IC Type	BUS TRANSCEIVER
Max I(ol)	0.024 Amp
Number of Bits	8
Number of Functions	2
Number of Ports	2
Number of Terminals	48
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	3-STATE
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP48,.3,20
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	3.3 V
Prop. Delay@Nom-Sup	5.8 ns
Propagation Delay (tpd)	9 ns
Qualification Status	Not Qualified
Seated Height-Max	1.2 mm
Sub Category	Bus Driver/Transceivers
Supply Voltage-Max (Vsup)	3.6 V
Supply Voltage-Min (Vsup)	2.3 V
Supply Voltage-Nom (Vsup)	2.5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Translation	3V & 5V
VCC (Max)(V)	5.5
VCC (Min)(V)	2.3
Width	6.1 mm
tpd_tpz (Typ.)(nsec)
グループ	TC74LCX
ピン数	48
回路数	16
機能1	Gate
機能2	Dual Supply Bus Transceiver
面実装区分	Y
