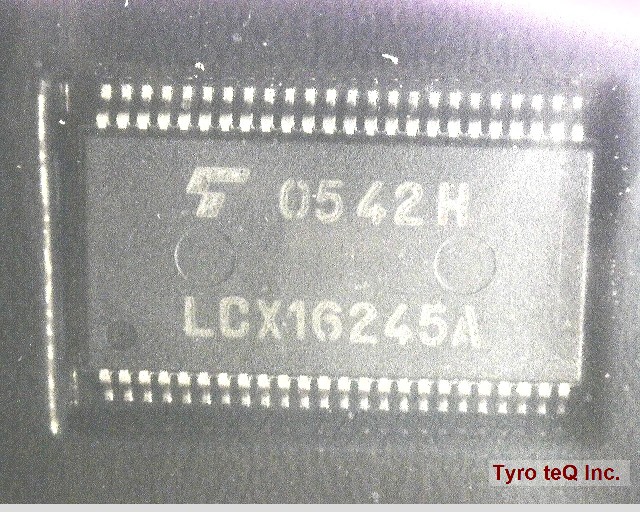

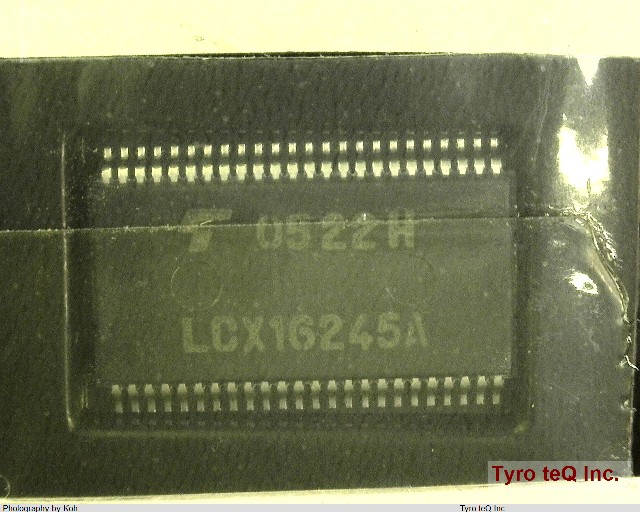

TC74LCX16245A(EL,F)

Name: TC74LCX16245A(EL,F)
Brand: TOSHIBA
SKU: 400095653-0000-0000-0000

TC74LCX16245A(EL,F) - TOSHIBA の商品詳細ページです。

No Image

２営業日以内に回答いたします

TC74LCX16245A(EL,F) の詳細情報

型番	TC74LCX16245A(EL,F)
メーカー	TOSHIBA
種別	低電圧CMOSロジックIC
Control Type	COMMON CONTROL
DLA Qualification	Not Qualified
Direction	BIDIRECTIONAL
Family	LVC/LCX/Z
J-STD-609 Code	e4
JESD-30 Code	R-PDSO-G48
Length (mm)	12.5
Load Capacitance (pF)	50
Logic IC Type	BUS TRANSCEIVER
Number of Bits	8
Number of Functions	2
Number of Ports	2
Number of Terminals	48
Operating Temperature-Max (Cel)	85
Operating Temperature-Min (Cel)	-40
Output Characteristics	3-STATE
Output Low Current-Max (mA)	24
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP48,.3,20
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies (V)	3.3
Propagation Delay (ns)	6.2
Propagation Delay-Max@Nom-Sup (ns)	5.2
Seated Height-Max (mm)	1.2
Sub Category	Bus Driver/Transceivers
Supply Voltage-Max (V)	3.6
Supply Voltage-Min (V)	2
Supply Voltage-Nom (V)	3.3
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	NICKEL PALLADIUM GOLD
Terminal Form	GULL WING
Terminal Pitch (mm)	0.5
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width (mm)	6.1
