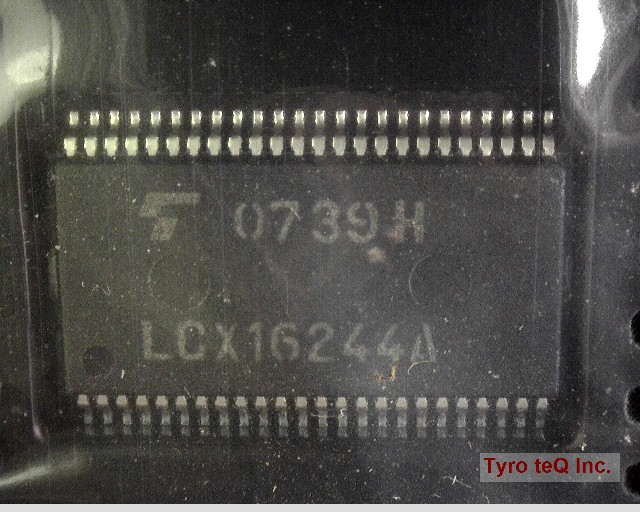

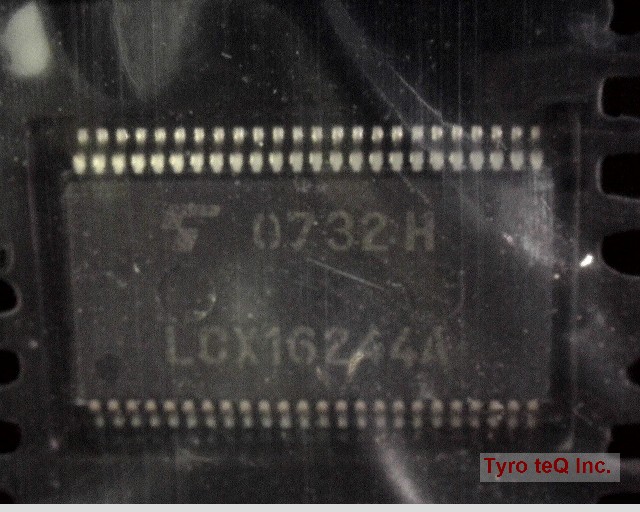

TC74LCX16244A(EL,F)

Name: TC74LCX16244A(EL,F)
Brand: TOSHIBA
SKU: 400095623-0000-0000-0000

TC74LCX16244A(EL,F) - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

TC74LCX16244A(EL,F) の詳細情報

型番	TC74LCX16244A(EL,F)
メーカー	TOSHIBA
種別	低電圧CMOSロジックIC
Control Type	ENABLE LOW
Family	LVC/LCX/Z
JESD-30 Code	R-PDSO-G48
JESD-609 Code	e4
Length	12.5 mm
Load Capacitance (CL)	50 pF
Logic IC Type	BUS DRIVER
Max I(ol)	24 Amp
Number of Bits	4
Number of Functions	4
Number of Ports	2
Number of Terminals	48
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	3-STATE
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP48,.3,20
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Prop. Delay@Nom-Sup	5.2 ns
Propagation Delay (tpd)	6.2 ns
Qualification Status	Not Qualified
Seated Height-Max	1.2 mm
Supply Voltage-Max (Vsup)	3.6 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	NICKEL PALLADIUM GOLD
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	6.1 mm
