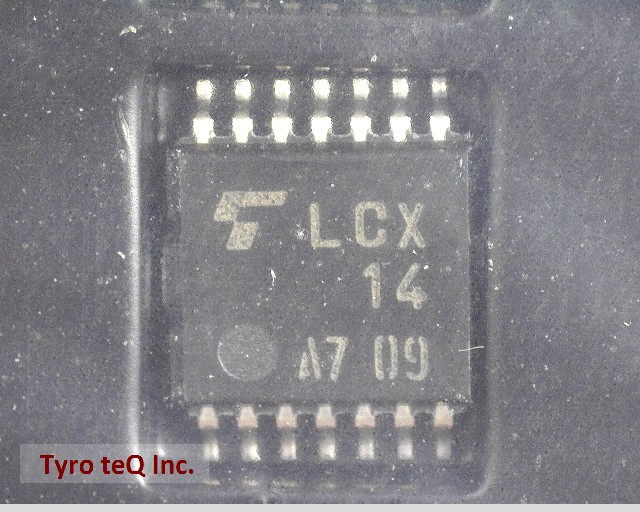

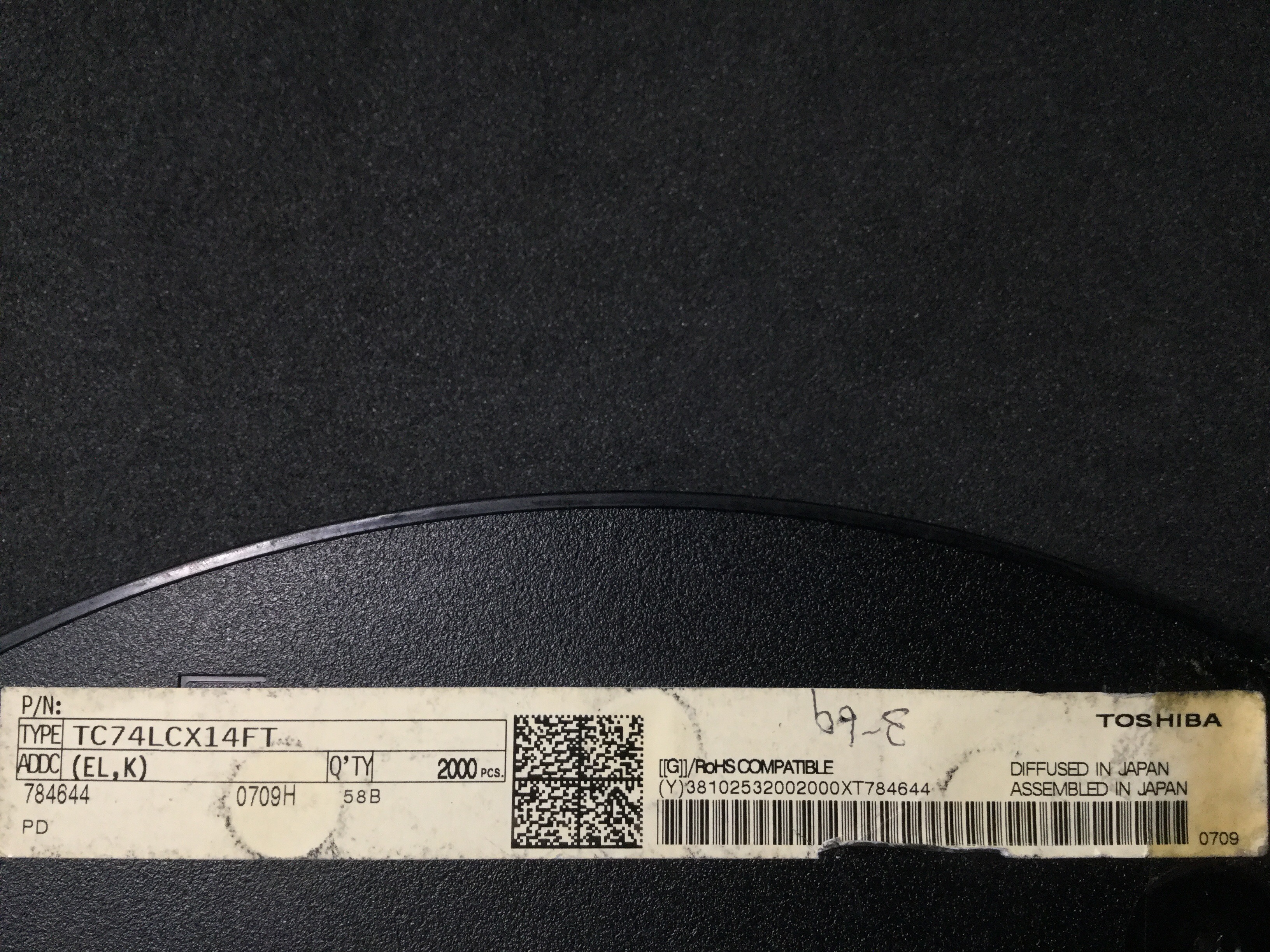

TC74LCX14FT(EL,K) データシート

Name: TC74LCX14FT(EL,K)
Brand: TOSHIBA
SKU: 300246245-0000-0000-0000

TC74LCX14FT(EL,K) - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

低電圧CMOSロジックIC | 74LCXシリーズ|パッケージ : TSSOP

TC74LCX14FT(EL,K) の詳細情報

型番	TC74LCX14FT(EL,K)
メーカー	TOSHIBA
種別	低電圧CMOSロジックIC
データシート
Family	LVC/LCX/Z
JESD-30 Code	R-PDSO-G14
Length	5 mm
Load Capacitance (CL)	50 pF
Logic IC Type	INVERTER
Number of Functions	6
Number of Inputs	1
Number of Terminals	14
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP14,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Packing Method	TR
Power Supplies	3.3 V
Prop. Delay@Nom-Sup	6.5 ns
Propagation Delay (tpd)	25 ns
Qualification Status	Not Qualified
Schmitt Trigger	YES
Seated Height-Max	1.2 mm
Sub Category	Gates
Supply Voltage-Max (Vsup)	3.6 V
Supply Voltage-Min (Vsup)	1.65 V
Supply Voltage-Nom (Vsup)	1.8 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Width	4.4 mm
