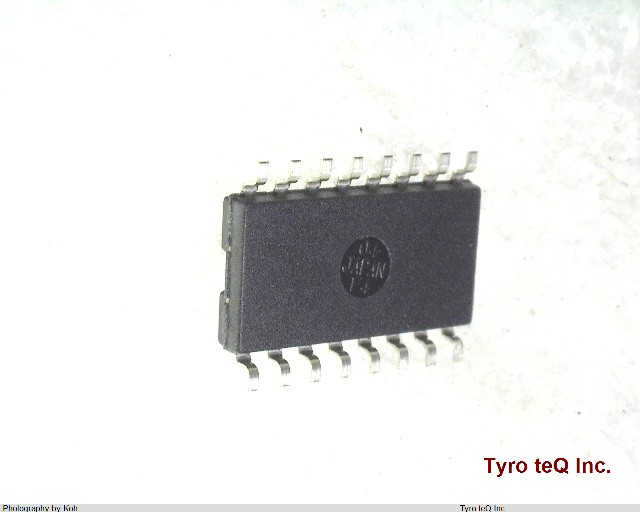

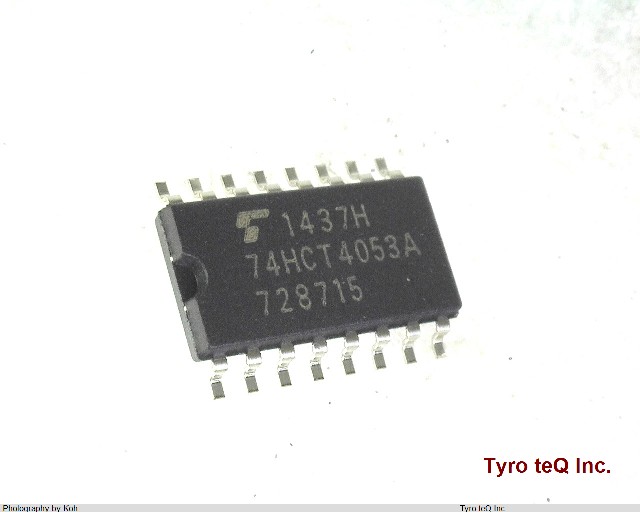

TC74HCT4053AF データシート

Name: TC74HCT4053AF
Brand: TOSHIBA
SKU: 300238124-0000-0000-0000

TC74HCT4053AF - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

CMOSロジックIC | 74HCシリーズ|パッケージ : SOP

TC74HCT4053AF の詳細情報

型番	TC74HCT4053AF
メーカー	TOSHIBA
カテゴリ	その他-汎用IC
種別	CMOSロジックIC
データシート
Additional Feature	2-CHANNEL MUX/DEMUX
Analog IC - Other Type	SINGLE-ENDED MULTIPLEXER
IBIS	IBIS
IO (Min)(mA)
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e0
Length	5 mm
Neg Supply Voltage-Max (Vsup)	-7.5 V
Neg Supply Voltage-Min (Vsup)	0 V
Neg Supply Voltage-Nom (Vsup)	-5.5 V
Number of Channels	1
Number of Functions	3
Number of Terminals	16
Off-state Isolation-Nom	50 dB
On-state Resistance Match-Nom	5 ohm
On-state Resistance-Max (Ron)	110 ohm
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP16,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	4.5/9,GND/-5.5 V
Qualification Status	Not Qualified
Seated Height-Max	1.2 mm
Signal Current-Max	0.025 A
Sub Category	Multiplexer or Switches
Supply Voltage-Max (Vsup)	12 V
Supply Voltage-Min (Vsup)	4.5 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Switch-off Time-Max	59 ns
Switch-on Time-Max	33 ns
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	TIN LEAD
Terminal Form	GULL WING
Terminal Pitch	0.635 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
VCC (Max)(V)	12
VCC (Min)(V)	4.5
Width	3.9 mm
tpd_tpz (Typ.)(nsec)	30
グループ	TC74HCT
ピン数	16
回路数	3
機能1	Multiplexer
機能2	2-Channel Analog Multiplexer
面実装区分	Y
