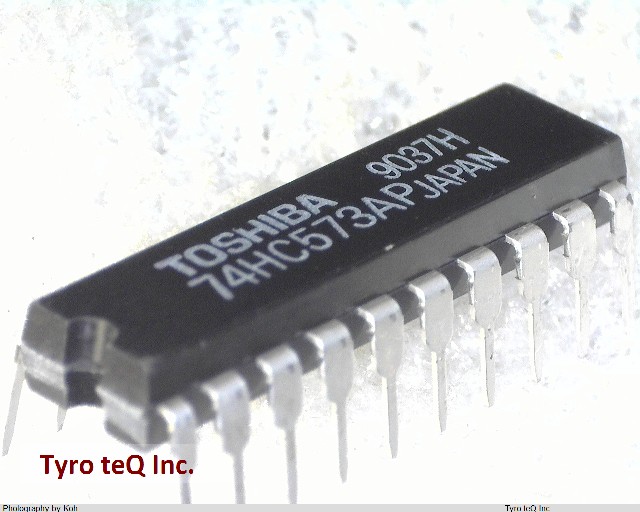

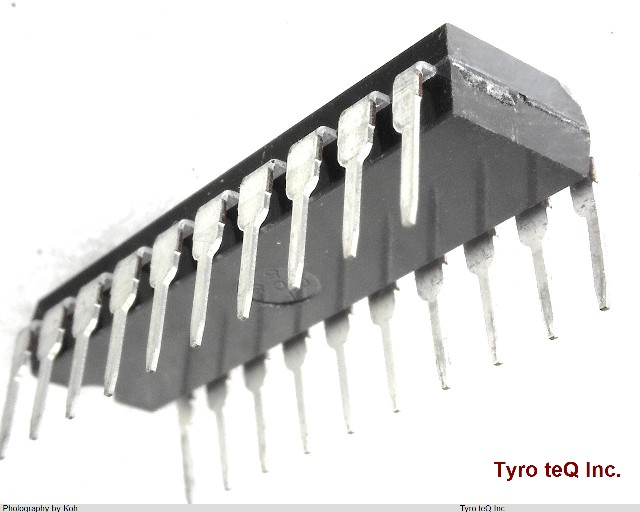

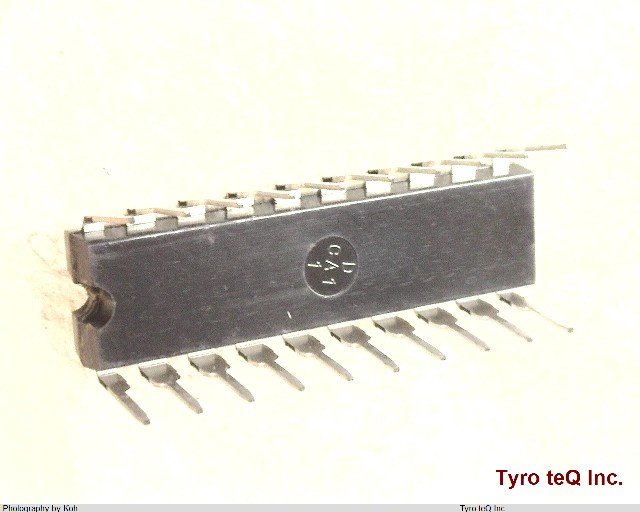

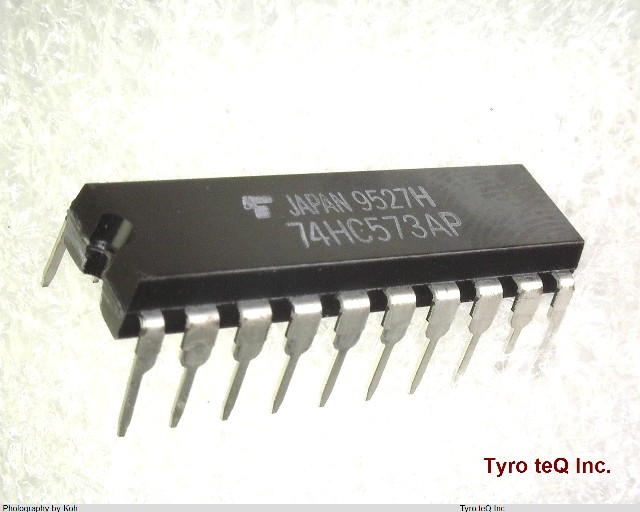

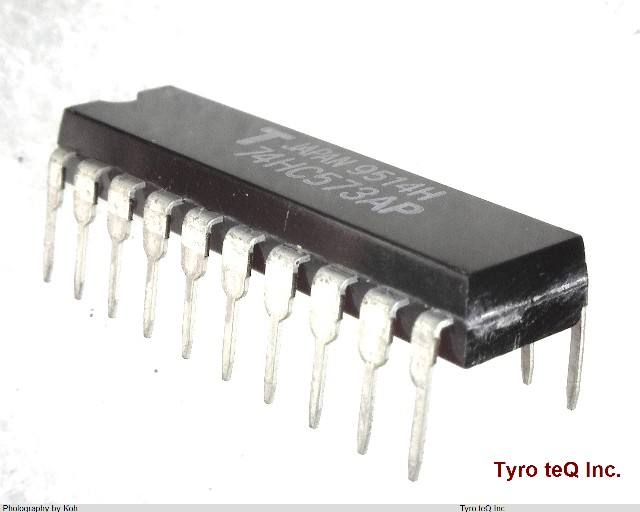

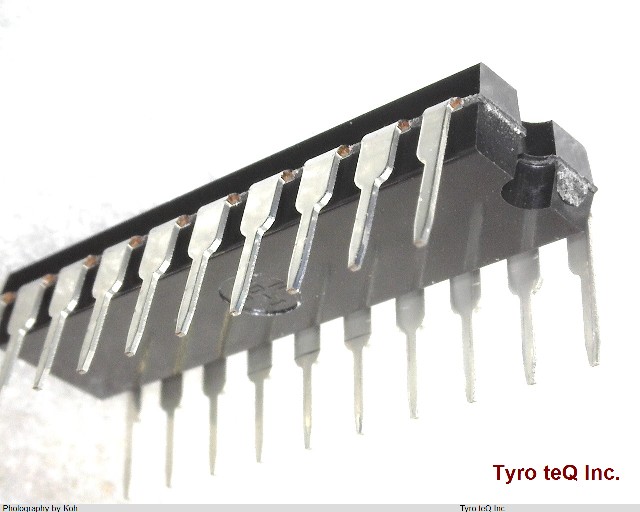

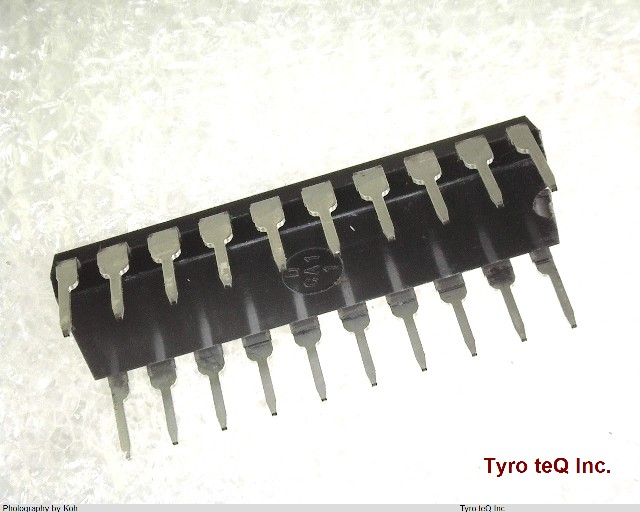

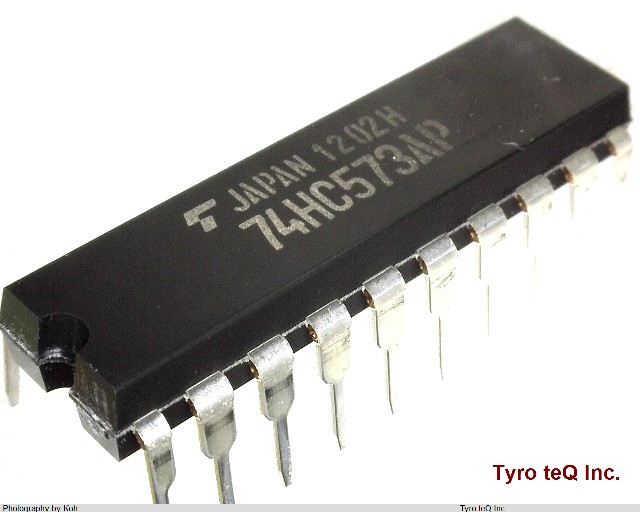

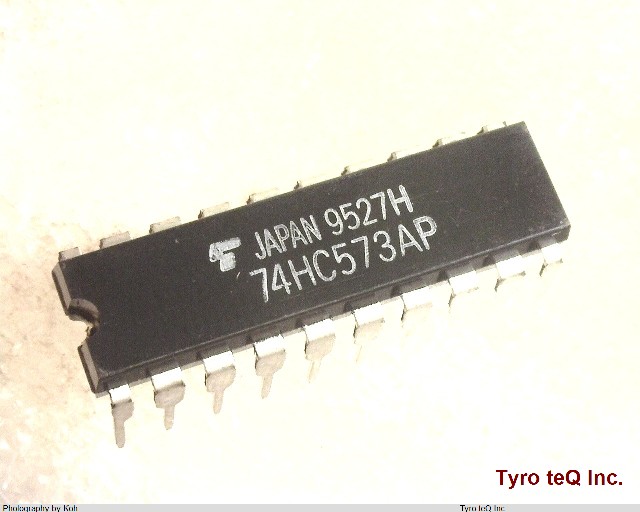

TC74HC573AP データシート

Name: TC74HC573AP
Brand: TOSHIBA
SKU: 300001158-0000-0000-0000

TC74HC573AP - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

CMOSロジックIC | 74HCシリーズ|パッケージ : DIP

TC74HC573AP の詳細情報

型番	TC74HC573AP
メーカー	TOSHIBA
カテゴリ	その他-汎用IC
種別	CMOSロジックIC
データシート
Family	HC/UH
IBIS	IBIS
IO (Min)(mA)	6
JESD-30 Code	R-PDIP-T20
Length	24.6 mm
Load Capacitance (CL)	150 pF
Logic IC Type	BUS DRIVER
Max I(ol)	0.004 Amp
Number of Bits	8
Number of Functions	1
Number of Ports	2
Number of Terminals	20
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	3-STATE
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	2/6 V
Prop. Delay@Nom-Sup	33 ns
Propagation Delay (tpd)	195 ns
Qualification Status	Not Qualified
Seated Height-Max	4.45 mm
Sub Category	FF/Latches
Supply Voltage-Max (Vsup)	6 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	4.5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
VCC (Max)(V)	6
VCC (Min)(V)	2
Width	7.62 mm
tpd_tpz (Typ.)(nsec)	13
グループ	TC74HC
ピン数	20
回路数	8
機能1	Latch
機能2	D-Type Latch
面実装区分	N
