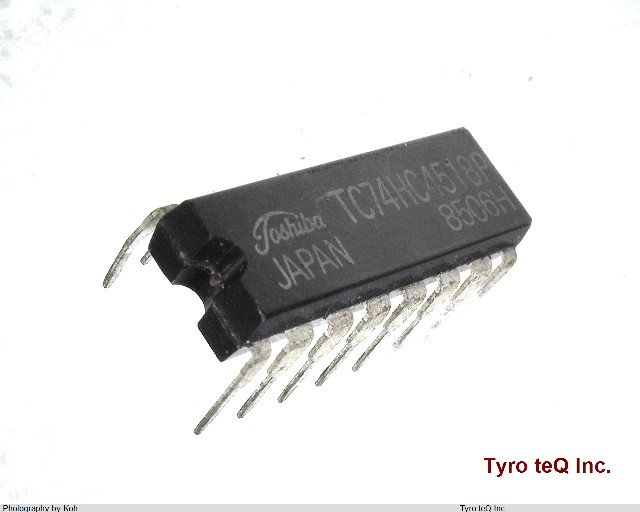

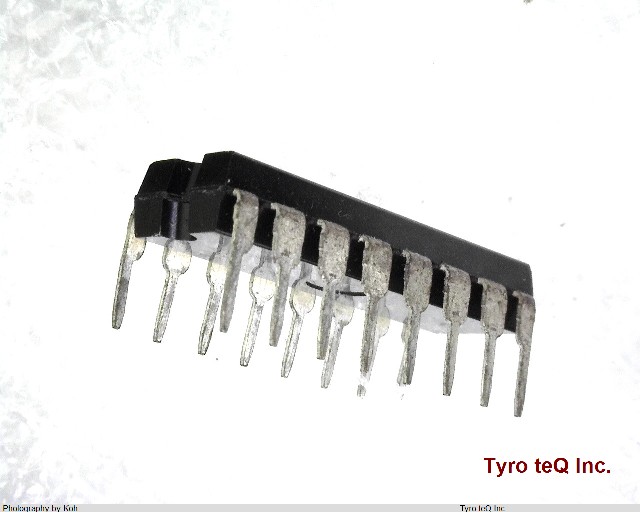

TC74HC4518P

Name: TC74HC4518P
Brand: TOSHIBA
SKU: 400048529-0000-0000-0000

TC74HC4518P - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

TC74HC4518P の詳細情報

型番	TC74HC4518P
メーカー	TOSHIBA
種別	CMOSロジックIC
Additional Feature	GATED CLOCK; SCHMITT TRIGGER ON CLOCK INPUT
Count Direction	UP
Family	HC/UH
JESD-30 Code	R-PDIP-T16
JESD-609 Code	e0
Length	19.25 mm
Load Capacitance (CL)	50 pF
Load/Preset Input	NO
Logic IC Type	DECADE COUNTER
Mode of Operation	SYNCHRONOUS
Number of Bits	4
Number of Functions	2
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Propagation Delay (tpd)	48 ns
Qualification Status	Not Qualified
Seated Height-Max	4.45 mm
Supply Voltage-Max (Vsup)	6 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	TIN LEAD
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Trigger Type	POSITIVE EDGE
Width	7.62 mm
fmax-Min	20 MHz
