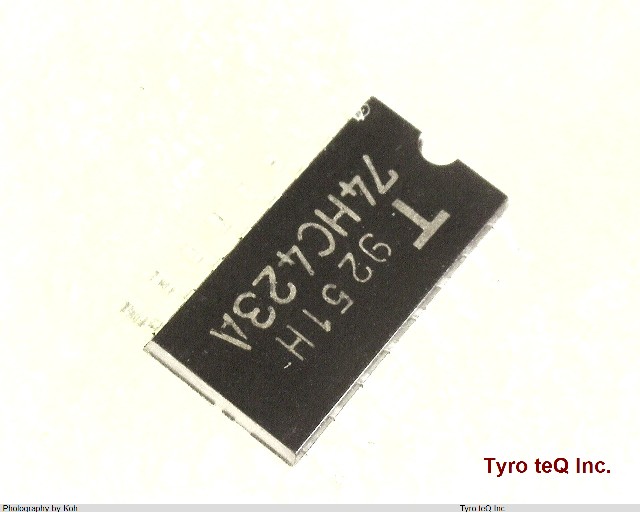

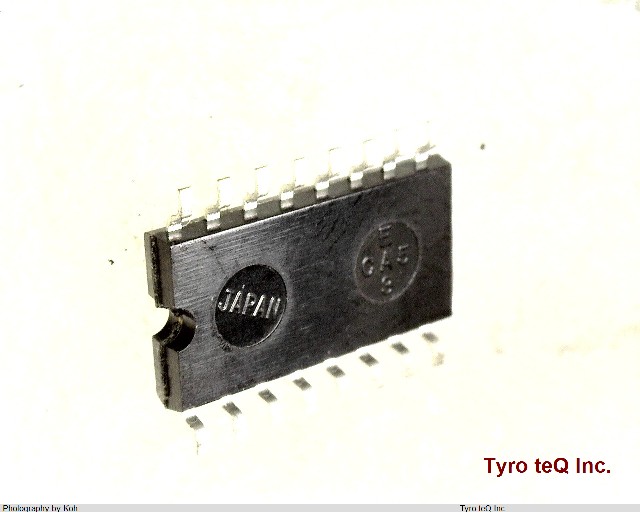

TC74HC423AF データシート

Name: TC74HC423AF
Brand: TOSHIBA
SKU: 300018911-0000-0000-0000

TC74HC423AF - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

CMOSロジックIC | 74HCシリーズ|パッケージ : SOP

TC74HC423AF の詳細情報

型番	TC74HC423AF
メーカー	TOSHIBA
カテゴリ	その他-汎用IC
種別	CMOSロジックIC
データシート
Additional Feature	RETRIGGERABLE; MIN O/P PULSE WIDTH = 250NS @ REXT = 2K OHM & CEXT = 28PF
Family	HC/UH
IBIS	IBIS
IO (Min)(mA)	4
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e0
Length	10.3 mm
Load Capacitance (CL)	50 pF
Logic IC Type	MONOSTABLE MULTIVIBRATOR
Number of Data/Clock Inputs	1
Number of Functions	2
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Polarity	COMPLEMENTARY
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP16,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	240
Power Supplies	2/6 V
Propagation Delay (tpd)	53 ns
Qualification Status	Not Qualified
Seated Height-Max	1.9 mm
Sub Category	Prescaler/Multivibrators
Supply Voltage-Max (Vsup)	6 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
VCC (Max)(V)	6
VCC (Min)(V)	2
Width	5.3 mm
tpd_tpz (Typ.)(nsec)	25
グループ	TC74HC
ピン数	16
回路数	2
機能1	Multivibrator
機能2	Monostable Multivibrator
面実装区分	Y
