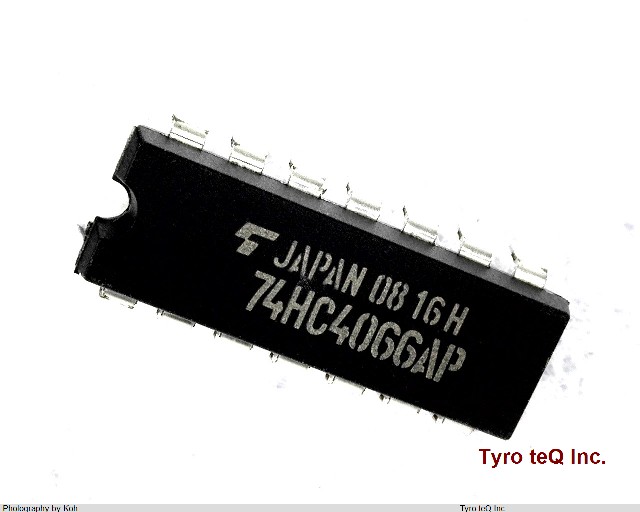

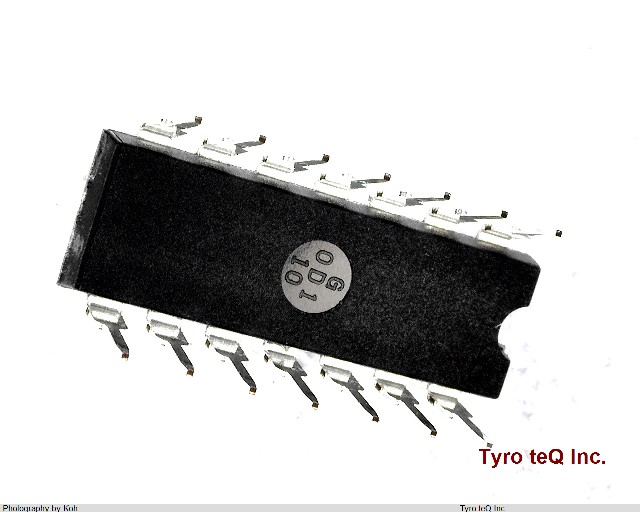

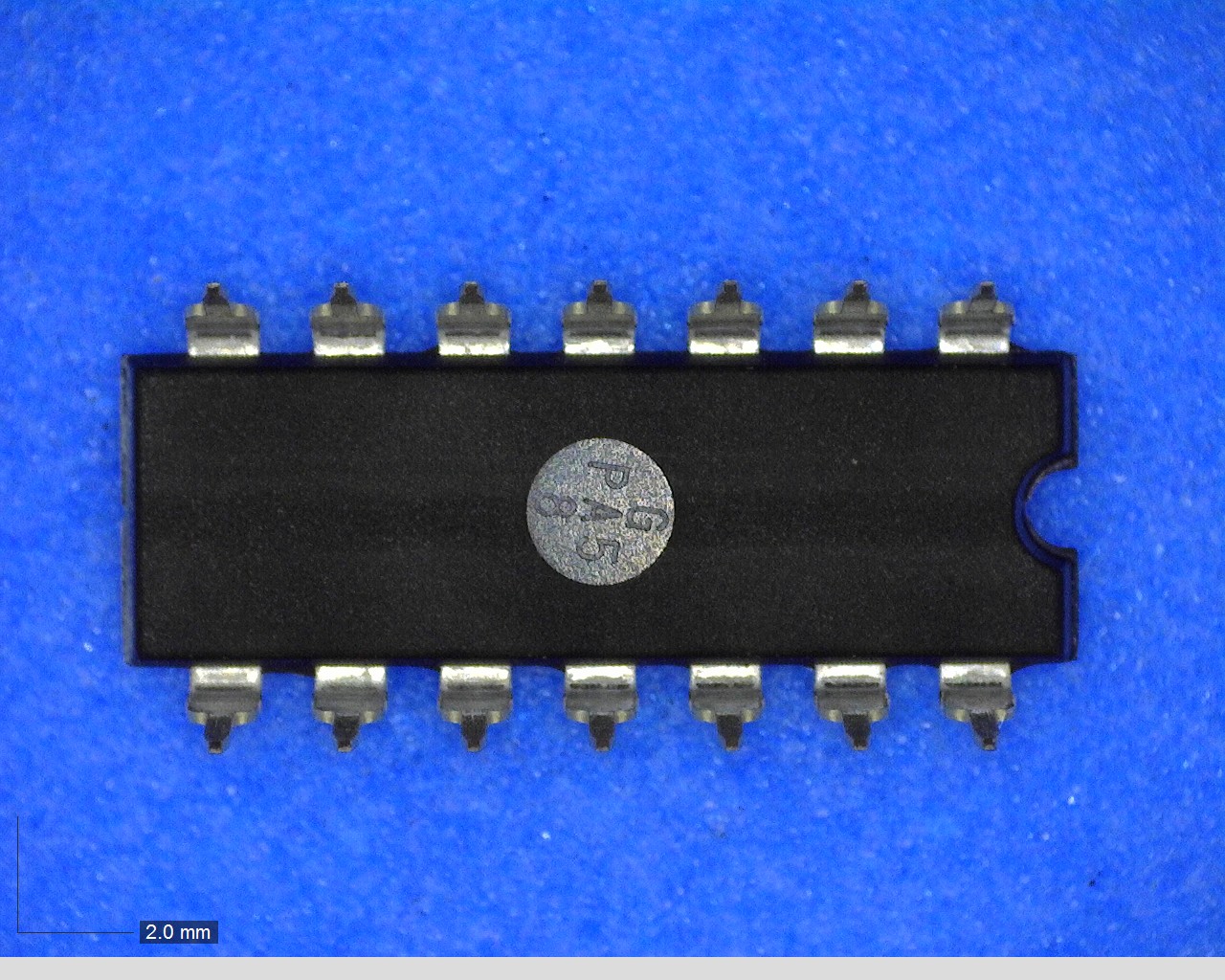

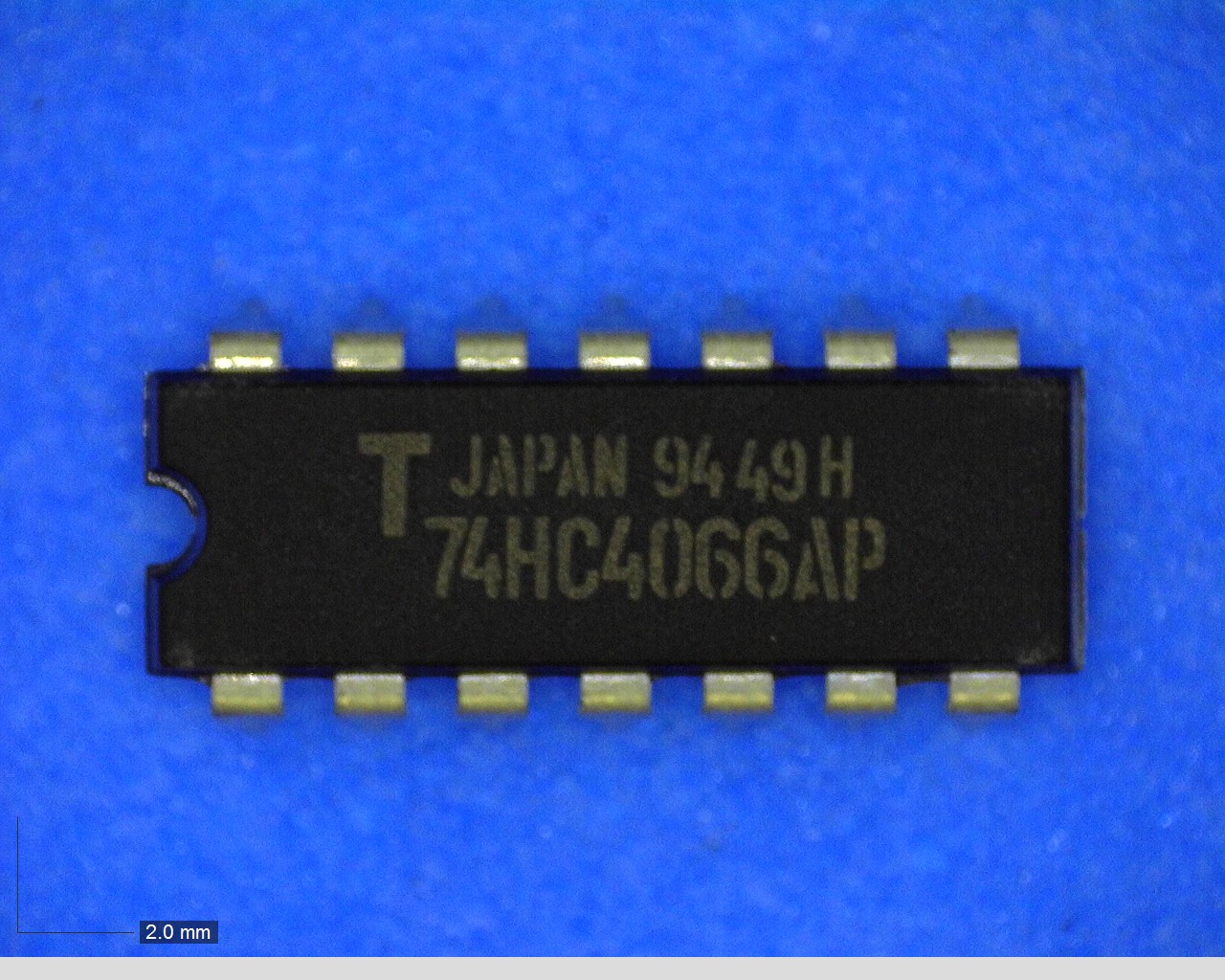

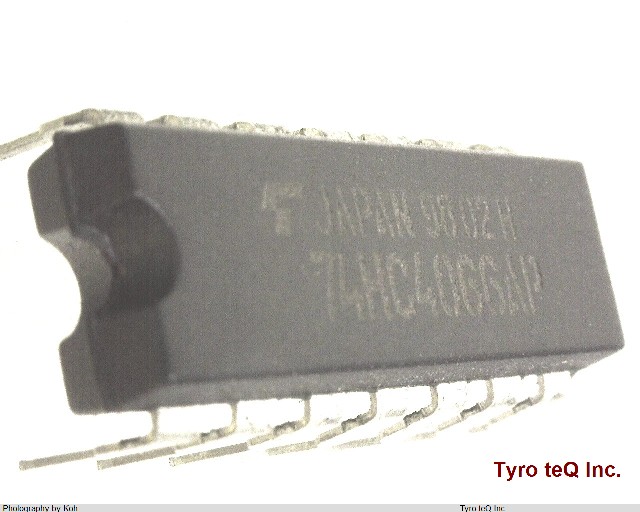

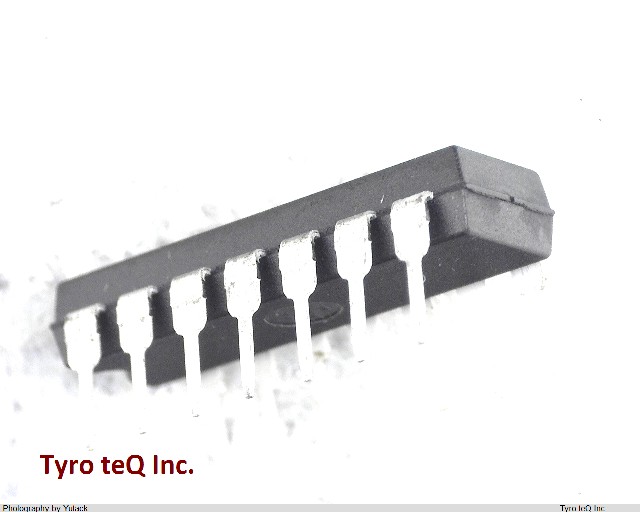

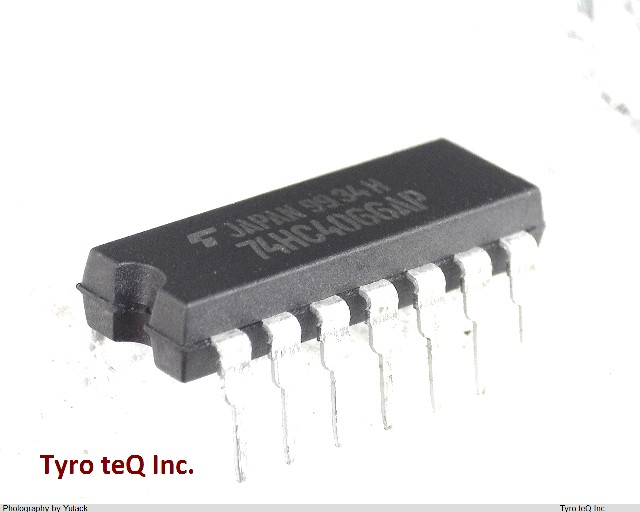

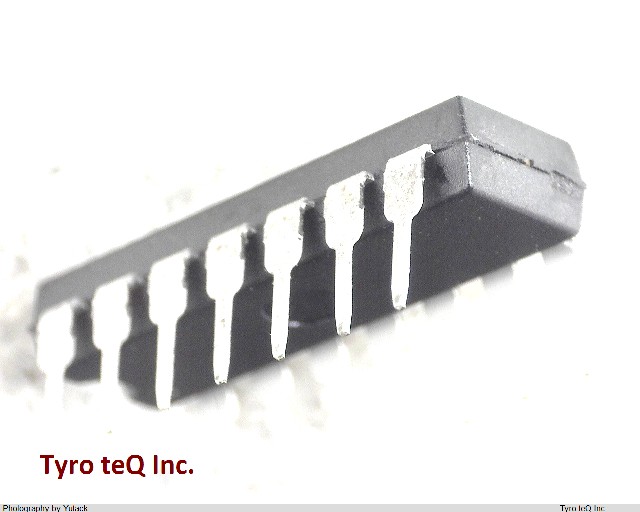

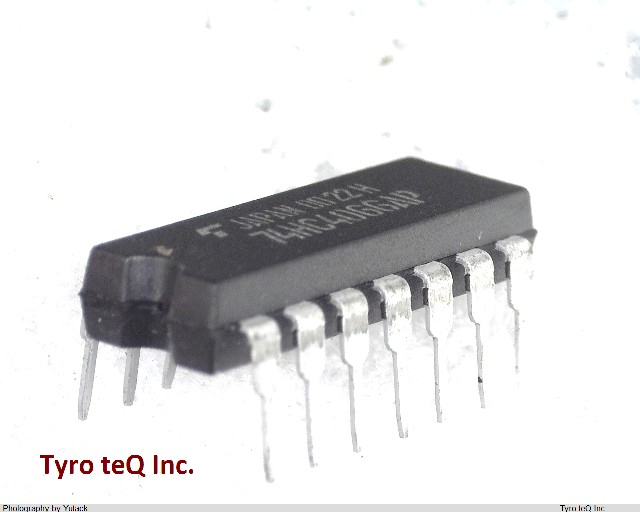

TC74HC4066AP データシート

Name: TC74HC4066AP
Brand: TOSHIBA
SKU: 300000336-0000-0000-0000

TC74HC4066AP - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

CMOSロジックIC | 74HCシリーズ|パッケージ : DIP

TC74HC4066AP の詳細情報

型番	TC74HC4066AP
メーカー	TOSHIBA
カテゴリ	その他-汎用IC
種別	CMOSロジックIC
データシート
Analog IC - Other Type	SPST
IBIS	IBIS
IO (Min)(mA)
JESD-30 Code	R-PDIP-T14
Length	19.25 mm
Normal Position	NO V
Number of Channels	1
Number of Functions	4
Number of Terminals	14
Off-state Isolation-Nom	60 dB
On-state Resistance Match-Nom	10 ohm
On-state Resistance-Max (Ron)	130 ohm
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output	SEPARATE OUTPUT V
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP14,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	2/12 V
Qualification Status	Not Qualified
Seated Height-Max	4.45 mm
Sub Category	Multiplexer or Switches
Supply Voltage-Max (Vsup)	12 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	4.5 V
Surface Mount	NO
Switch-off Time-Max	145 ns
Switch-on Time-Max	125 ns
Switching	MAKE-BEFORE-BREAK V
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
VCC (Max)(V)	12
VCC (Min)(V)	2
Width	7.62 mm
tpd_tpz (Typ.)(nsec)	7
グループ	TC74HC
ピン数	14
回路数	4
機能1	Other
機能2	Bilateral Switch
面実装区分	N
