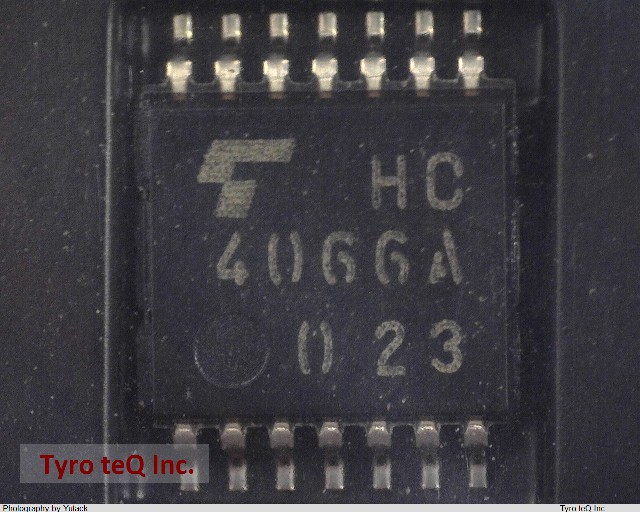

TC74HC4066AFT(EL)

Name: TC74HC4066AFT(EL)
Brand: TOSHIBA
SKU: 300018887-0000-0000-0000

TC74HC4066AFT(EL) - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

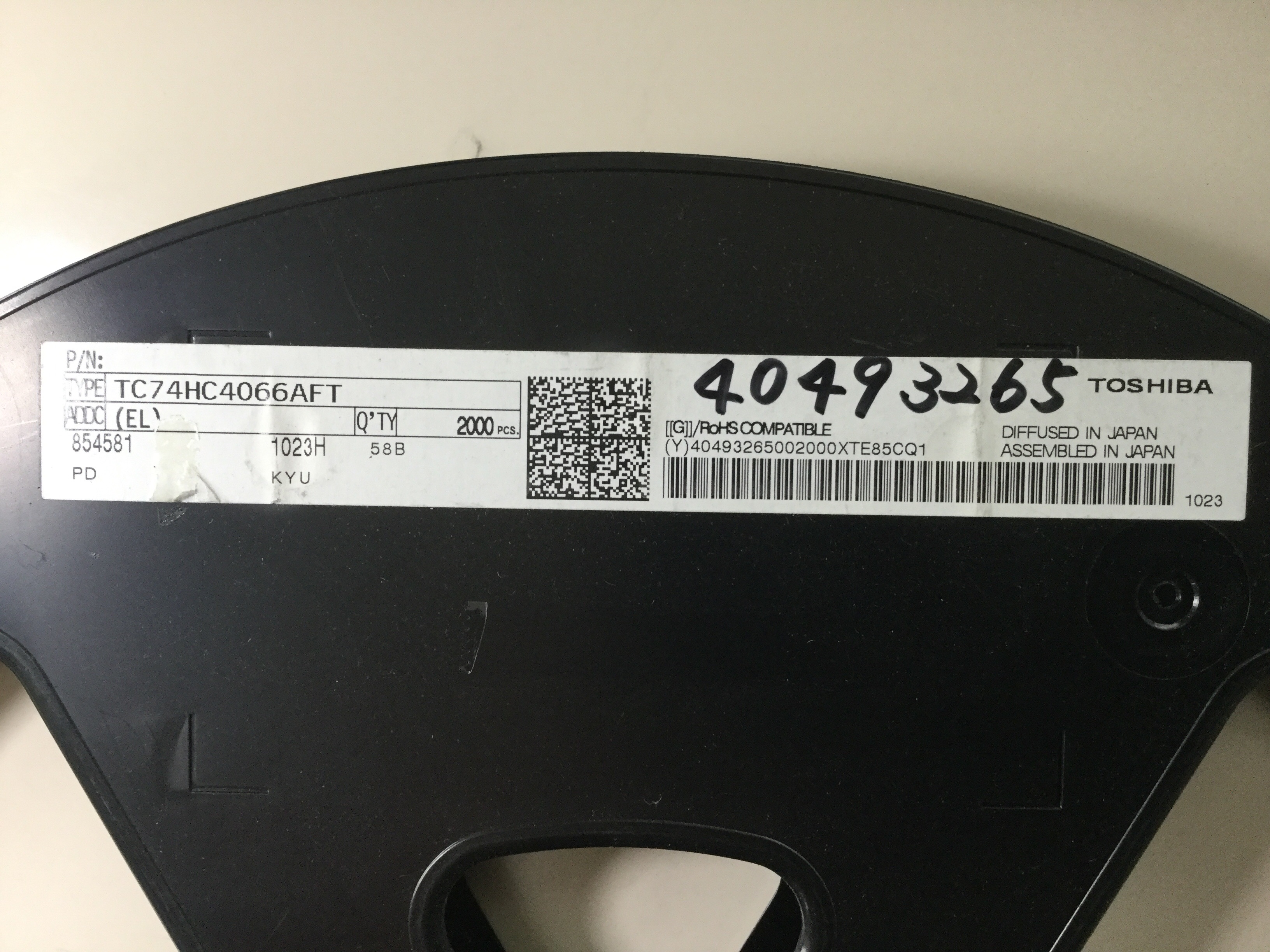

EL:エンボスリール左巻|CMOSロジックIC | 74HCシリーズ|パッケージ : TSSOP

TC74HC4066AFT(EL) の詳細情報

型番	TC74HC4066AFT(EL)
メーカー	TOSHIBA
種別	CMOSロジックIC
Analog IC - Other Type	SPST
JESD-30 Code	R-PDSO-G14
Length	5 mm
Normal Position	NO V
Number of Channels	1
Number of Functions	4
Number of Terminals	14
Off-state Isolation-Nom	60 dB
On-state Resistance Match-Nom	10 ohm
On-state Resistance-Max (Ron)	170 ohm
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output	SEPARATE OUTPUT V
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP14,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Power Supplies	2/12 V
Qualification Status	Not Qualified
Seated Height-Max	1.2 mm
Sub Category	Multiplexer or Switches
Supply Voltage-Max (Vsup)	12 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	4.5 V
Surface Mount	YES
Switch-off Time-Max	145 ns
Switch-on Time-Max	125 ns
Switching	MAKE-BEFORE-BREAK V
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Width	4.4 mm
