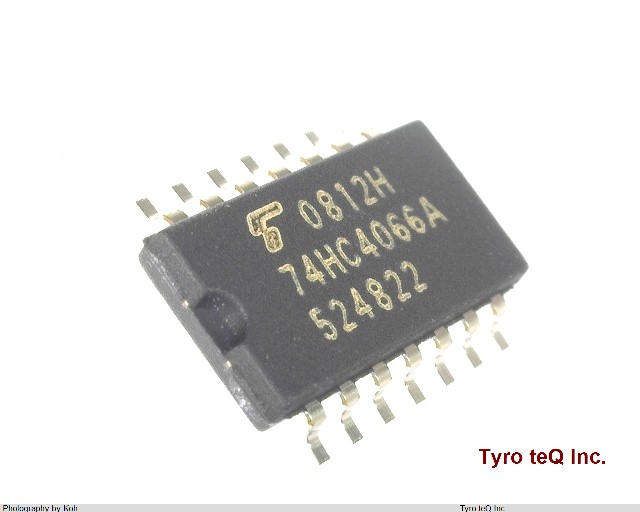

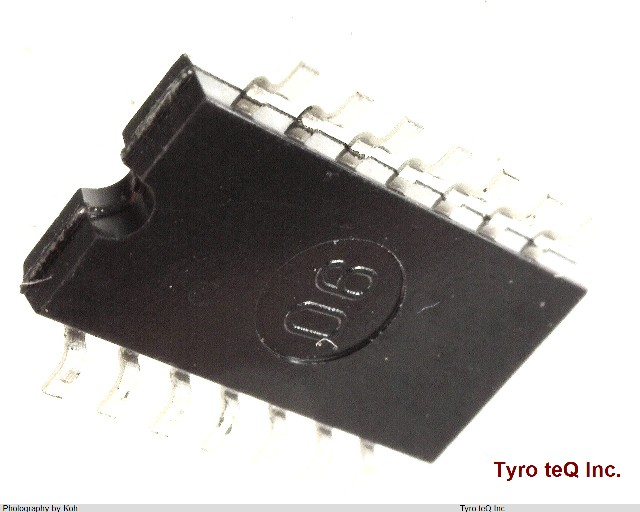

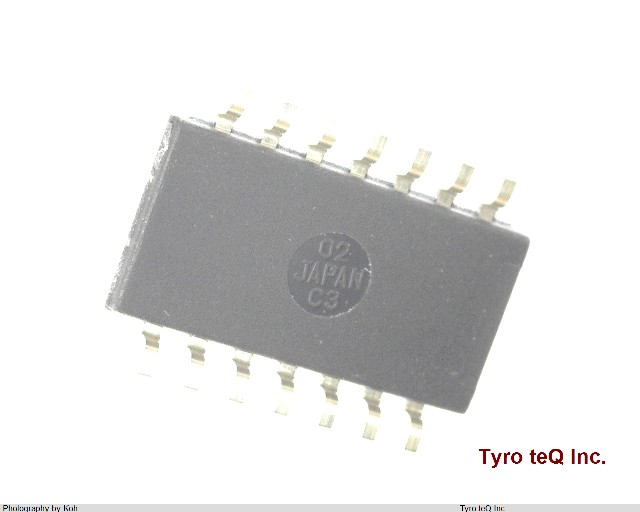

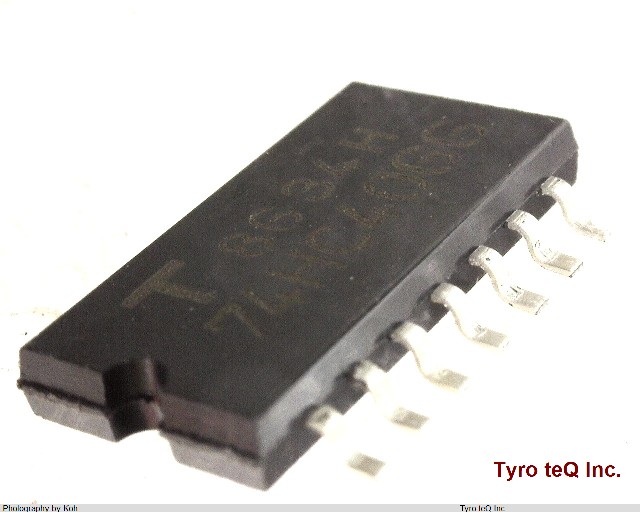

TC74HC4066AF データシート

Name: TC74HC4066AF
Brand: TOSHIBA
SKU: 300000335-0000-0000-0000

TC74HC4066AF - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

CMOSロジックIC | 74HCシリーズ|パッケージ : SOP

TC74HC4066AF の詳細情報

型番	TC74HC4066AF
メーカー	TOSHIBA
カテゴリ	その他-汎用IC
種別	CMOSロジックIC
データシート
Additional Feature	NOT AVAILABLE IN JAPAN
Analog IC - Other Type	SPST
IBIS	IBIS
IO (Min)(mA)
JESD-30 Code	R-PDSO-G14
JESD-609 Code	e0
Length	5 mm
Neg Supply Voltage-Nom (Vsup)	0 V
Normal Position	NO V
Number of Channels	1
Number of Functions	4
Number of Terminals	14
Off-state Isolation-Nom	60 dB
On-state Resistance Match-Nom	5 ohm
On-state Resistance-Max (Ron)	80 ohm
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output	SEPARATE OUTPUT V
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP14,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	240
Power Supplies	2/12 V
Qualification Status	Not Qualified
Seated Height-Max	1.2 mm
Sub Category	Multiplexer or Switches
Supply Current-Max (Isup)	0.08 mA
Supply Voltage-Max (Vsup)	12 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	4.5 V
Surface Mount	YES
Switch-off Time-Max	18 ns
Switch-on Time-Max	12 ns
Switching	MAKE-BEFORE-BREAK V
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
VCC (Max)(V)	12
VCC (Min)(V)	2
Width	3.9 mm
tpd_tpz (Typ.)(nsec)	7
グループ	TC74HC
ピン数	14
回路数	4
機能1	Other
機能2	Bilateral Switch
面実装区分	Y
