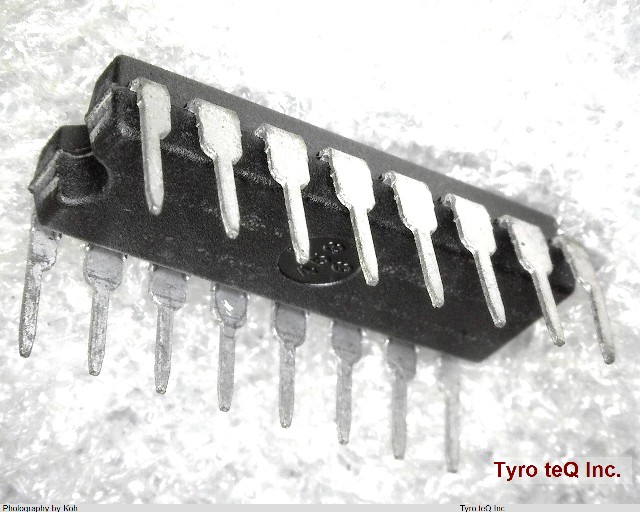

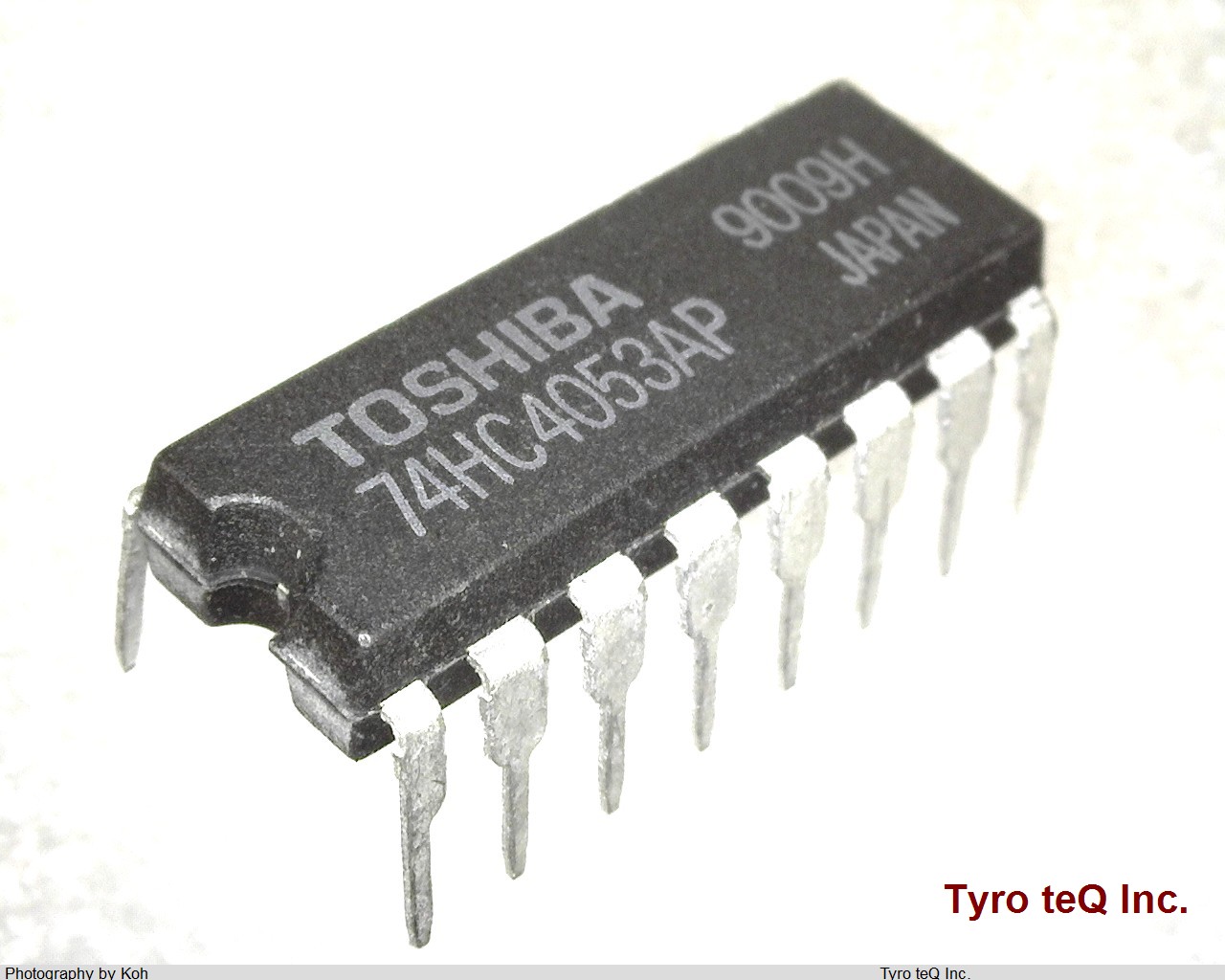

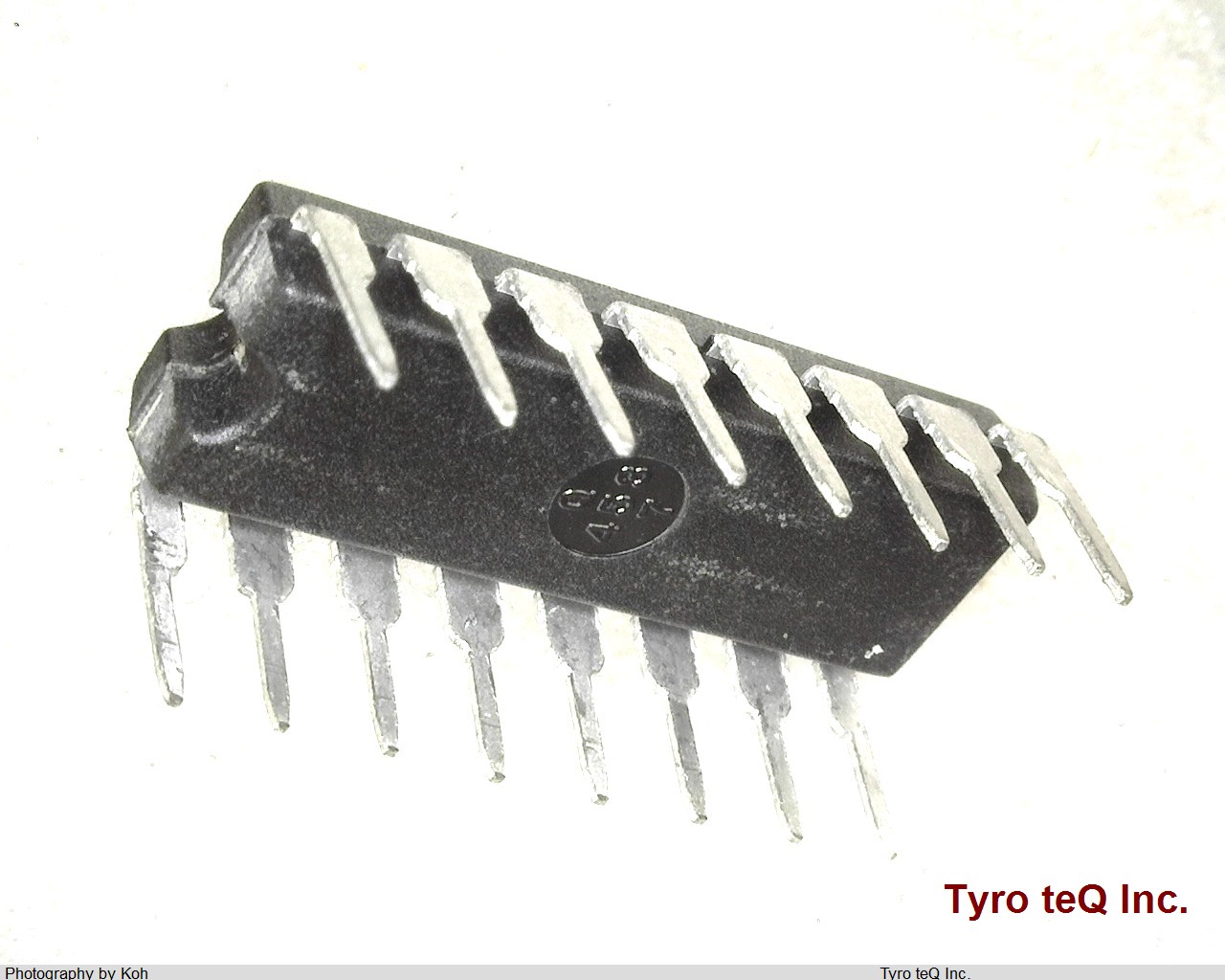

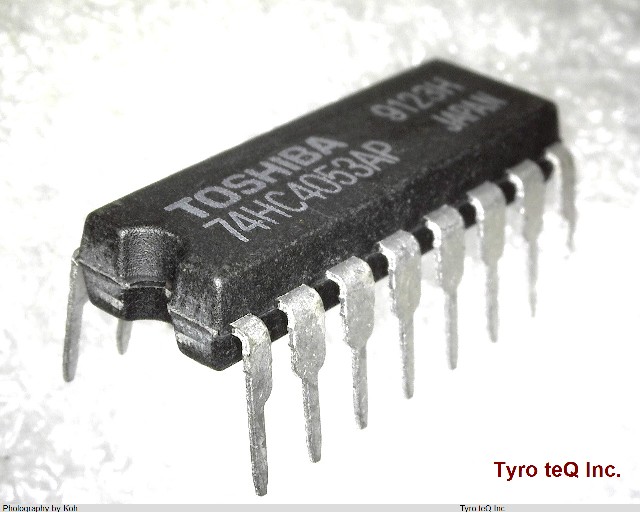

TC74HC4053AP データシート

Name: TC74HC4053AP
Brand: TOSHIBA
SKU: 300008025-0000-0000-0000

TC74HC4053AP - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

CMOSロジックIC | 74HCシリーズ|パッケージ : DIP

TC74HC4053AP の詳細情報

型番	TC74HC4053AP
メーカー	TOSHIBA
カテゴリ	その他-汎用IC
種別	CMOSロジックIC
データシート
Additional Feature	IT CAN ALSO OPERATE WITH 2 TO 12 V SUPPLY
Analog IC - Other Type	SINGLE-ENDED MULTIPLEXER
IBIS	IBIS
IO (Min)(mA)
JESD-30 Code	R-PDIP-T16
Length	19.25 mm
Neg Supply Voltage-Max (Vsup)	-6 V
Neg Supply Voltage-Min (Vsup)	0 V
Neg Supply Voltage-Nom (Vsup)	-4.5 V
Number of Channels	2
Number of Functions	1
Number of Terminals	16
Off-state Isolation-Nom	50 dB
On-state Resistance Match-Nom	5 ohm
On-state Resistance-Max (Ron)	55 ohm
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	2/6,GND/-6 V
Qualification Status	Not Qualified
Seated Height-Max	4.45 mm
Signal Current-Max	0.025 A
Sub Category	Multiplexer or Switches
Supply Current-Max (Isup)	0.08 mA
Supply Voltage-Max (Vsup)	6 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	4.5 V
Surface Mount	NO
Switch-off Time-Max	45 ns
Switch-on Time-Max	45 ns
Switching	BREAK-BEFORE-MAKE V
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
VCC (Max)(V)	6
VCC (Min)(V)	2
Width	7.62 mm
tpd_tpz (Typ.)(nsec)	15
グループ	TC74HC
ピン数	16
回路数	3
機能1	Multiplexer
機能2	2-Channel Analog Multiplexer
面実装区分	N
