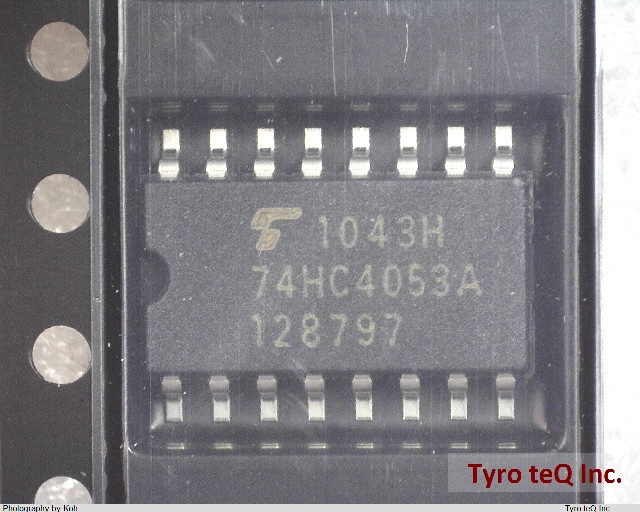

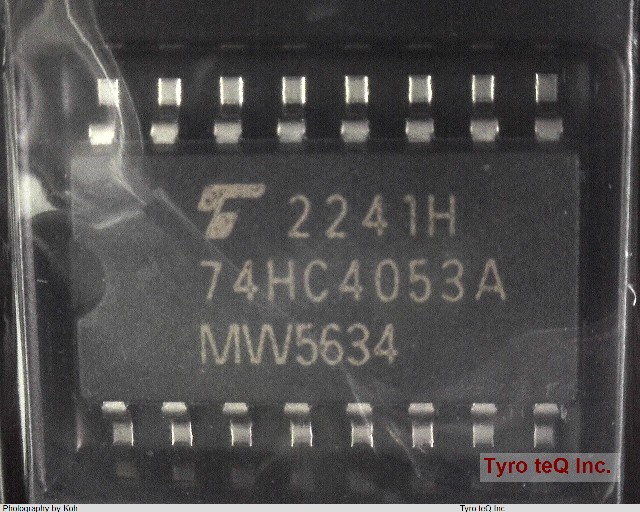

TC74HC4053AF(EL,F)

Name: TC74HC4053AF(EL,F)
Brand: TOSHIBA
SKU: 300256946-0000-0000-0000

TC74HC4053AF(EL,F) - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

EL:エンボスリール左巻 F:RoHS品|CMOSロジックIC | 74HCシリーズ|パッケージ : SOP

TC74HC4053AF(EL,F) の詳細情報

型番	TC74HC4053AF(EL,F)
メーカー	TOSHIBA
種別	CMOSロジックIC
Additional Feature	IT CAN ALSO OPERATE WITH 2 TO 12 V SUPPLY
Analog IC - Other Type	SINGLE-ENDED MULTIPLEXER
JESD-30 Code	R-PDSO-G16
Length	10.3 mm
Neg Supply Voltage-Max (Vsup)	-6 V
Neg Supply Voltage-Min (Vsup)	0 V
Neg Supply Voltage-Nom (Vsup)	-4.5 V
Number of Channels	2
Number of Functions	3
Number of Terminals	16
Off-state Isolation-Nom	50 dB
On-state Resistance Match-Nom	5 ohm
On-state Resistance-Max (Ron)	120 ohm
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP16,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Power Supplies	2/6,GND/-6 V
Qualification Status	Not Qualified
Seated Height-Max	1.9 mm
Signal Current-Max	0.025 A
Sub Category	Multiplexer or Switches
Supply Current-Max (Isup)	0.08 mA
Supply Voltage-Max (Vsup)	6 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	4.5 V
Surface Mount	YES
Switch-off Time-Max	280 ns
Switch-on Time-Max	280 ns
Switching	BREAK-BEFORE-MAKE V
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Width	5.3 mm
