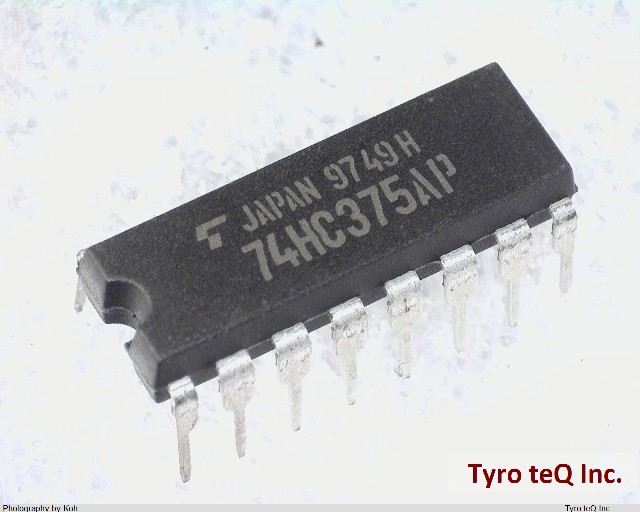

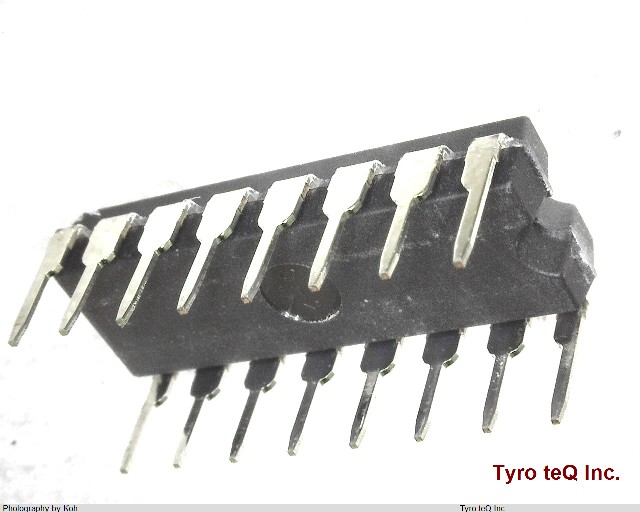

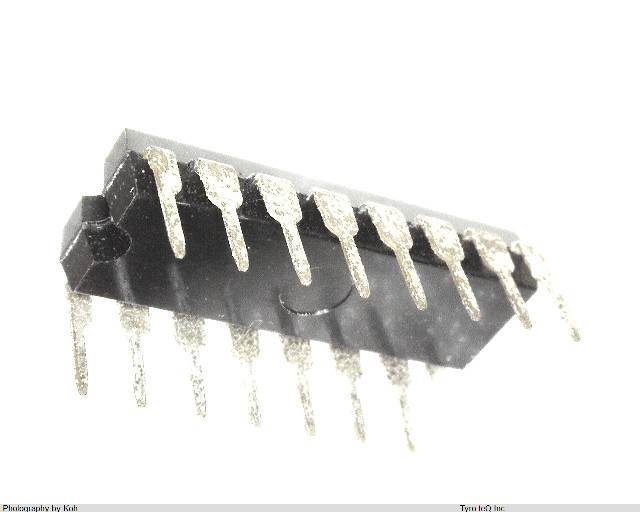

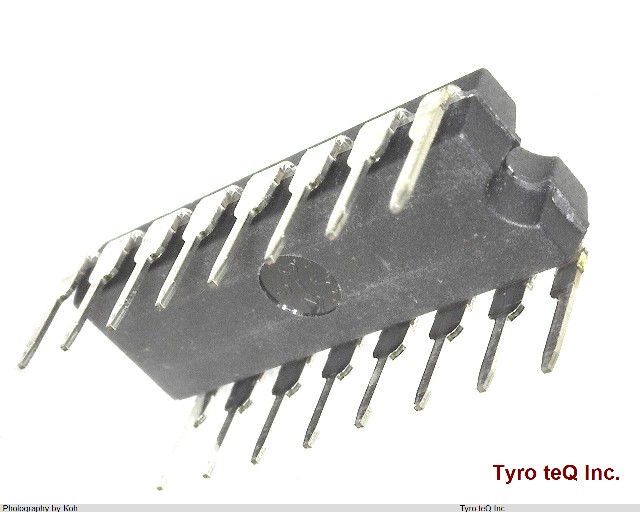

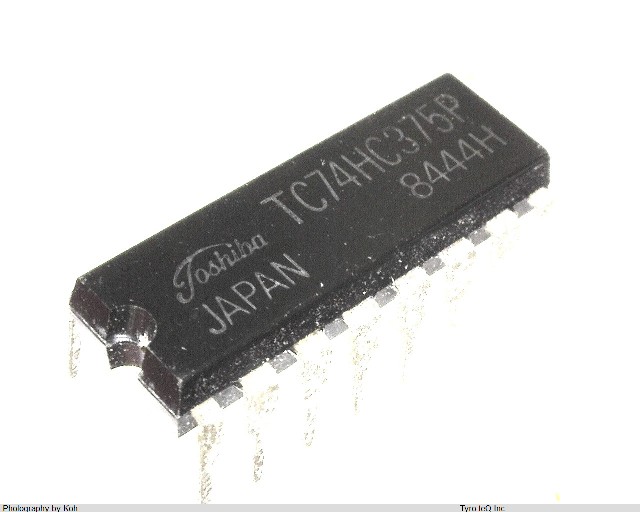

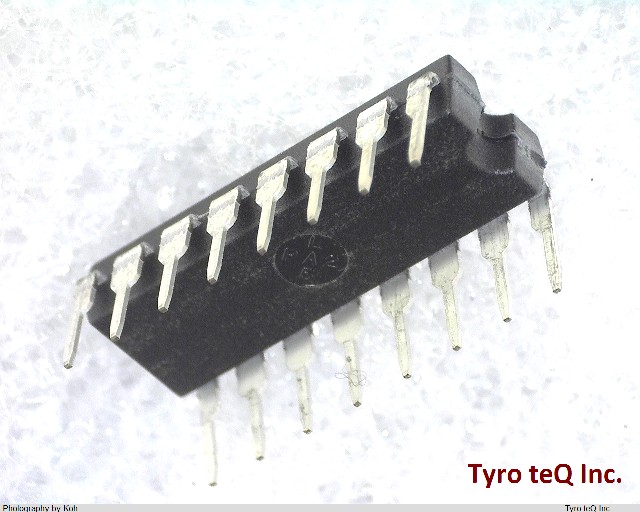

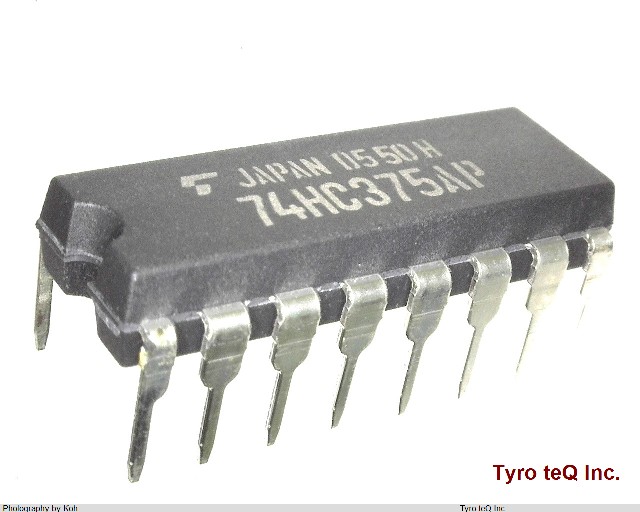

TC74HC375AP データシート

Name: TC74HC375AP
Brand: TOSHIBA
SKU: 300018803-0000-0000-0000

TC74HC375AP - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

CMOSロジックIC | 74HCシリーズ|パッケージ : DIP

TC74HC375AP の詳細情報

型番	TC74HC375AP
メーカー	TOSHIBA
種別	CMOSロジックIC
データシート
Family	HC/UH
JESD-30 Code	R-PDIP-T16
Length	19.25 mm
Load Capacitance (CL)	50 pF
Logic IC Type	D LATCH
Max I(ol)	0.004 Amp
Number of Bits	2
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Polarity	COMPLEMENTARY
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Packing Method	TUBE
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	2/6 V
Prop. Delay@Nom-Sup	30 ns
Propagation Delay (tpd)	150 ns
Qualification Status	Not Qualified
Seated Height-Max	4.45 mm
Sub Category	FF/Latches
Supply Voltage-Max (Vsup)	6 V
Supply Voltage-Min (Vsup)	2 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Trigger Type	HIGH LEVEL
Width	7.62 mm
