TC74HC273AF(EL) データシート

Name: TC74HC273AF(EL)
Brand: TOSHIBA
SKU: 300392997-0000-0000-0000

TC74HC273AF(EL) - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

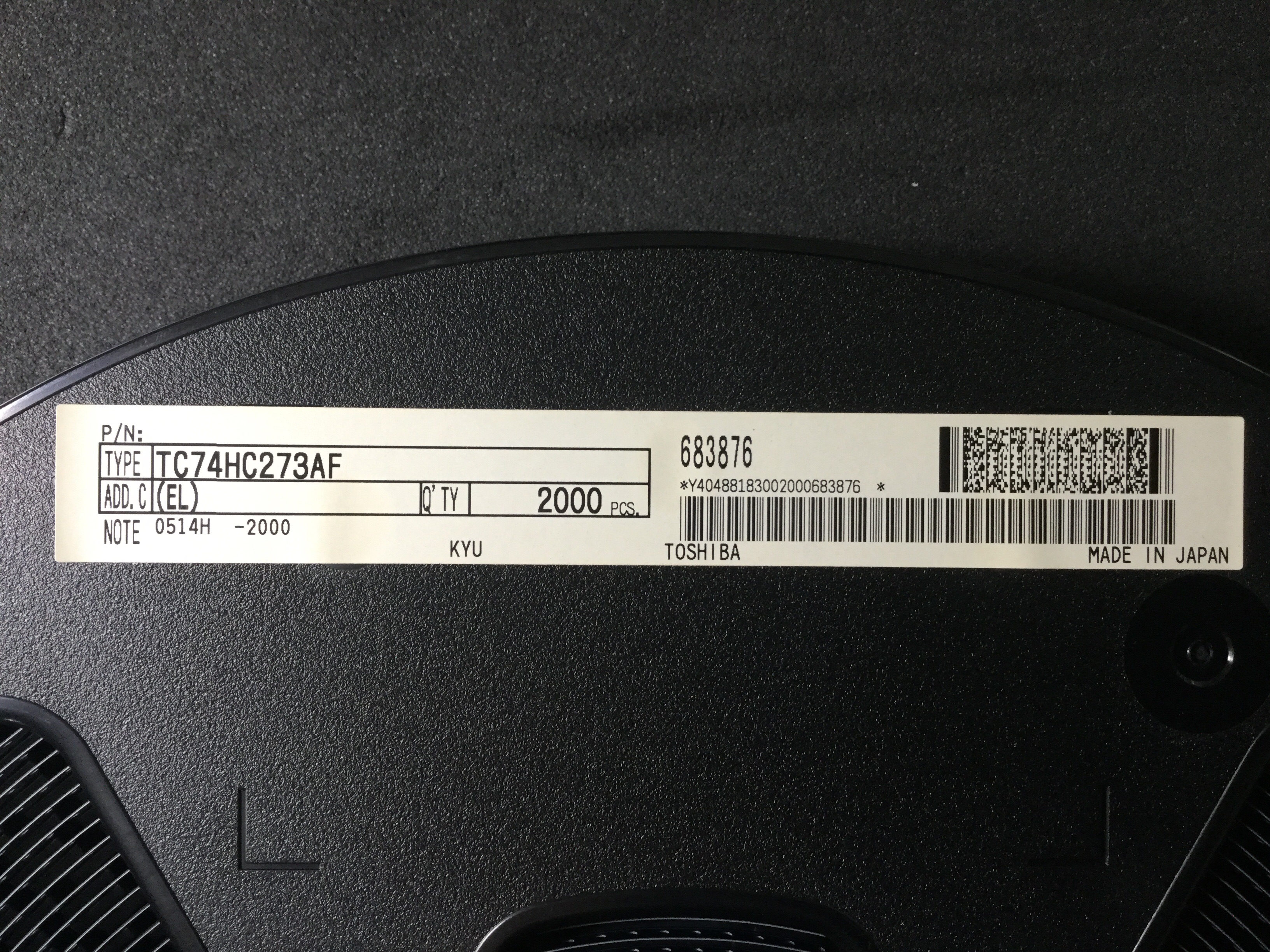

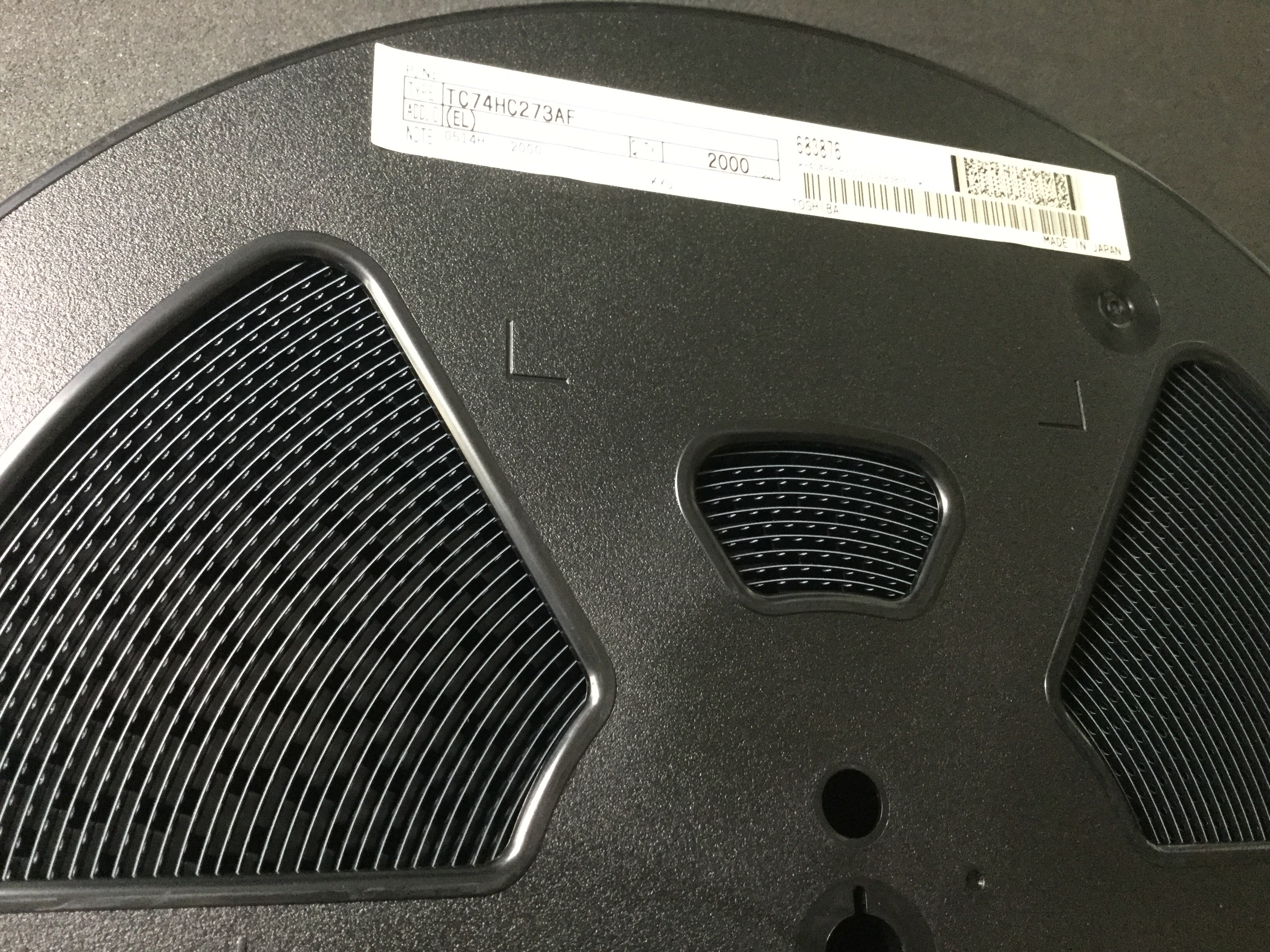

EL:エンボスリール左巻|CMOSロジックIC | 74HCシリーズ|パッケージ : SOP

TC74HC273AF(EL) の詳細情報

型番	TC74HC273AF(EL)
メーカー	TOSHIBA
種別	CMOSロジックIC
データシート
Family	HC/UH
JESD-30 Code	R-PDSO-G20
JESD-609 Code	e0
Length	12.8 mm
Load Capacitance (CL)	50 pF
Logic IC Type	D FLIP-FLOP
Max Frequency@Nom-Sup	24000000 Hz
Max I(ol)	0.004 Amp
Number of Bits	8
Number of Functions	1
Number of Terminals	20
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP20,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	240
Power Supplies	2/6 V
Propagation Delay (tpd)	36 ns
Qualification Status	Not Qualified
Seated Height-Max	1.8 mm
Sub Category	FF/Latches
Supply Voltage-Max (Vsup)	6 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Trigger Type	POSITIVE EDGE
Width	5.3 mm
fmax-Min	24 MHz
