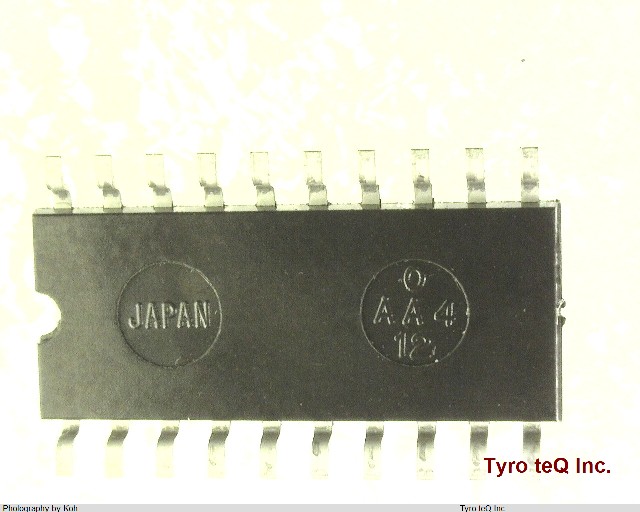

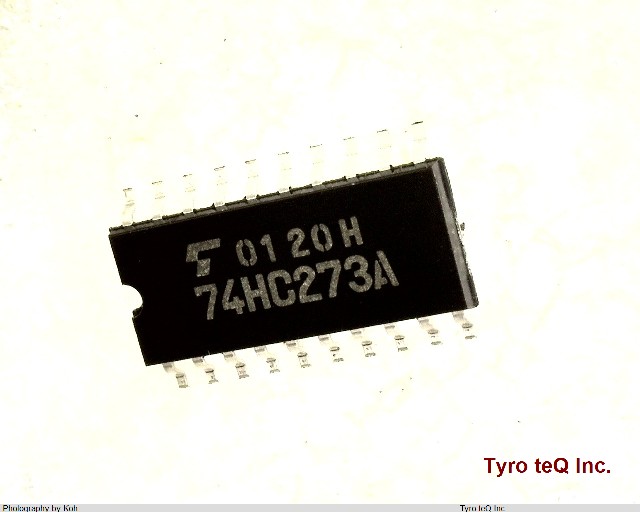

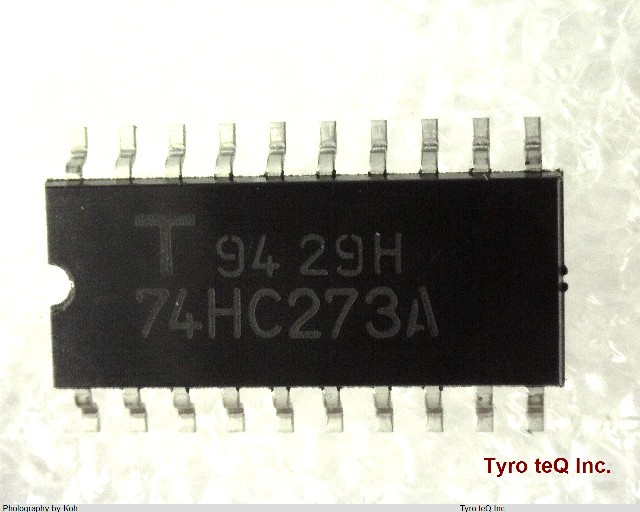

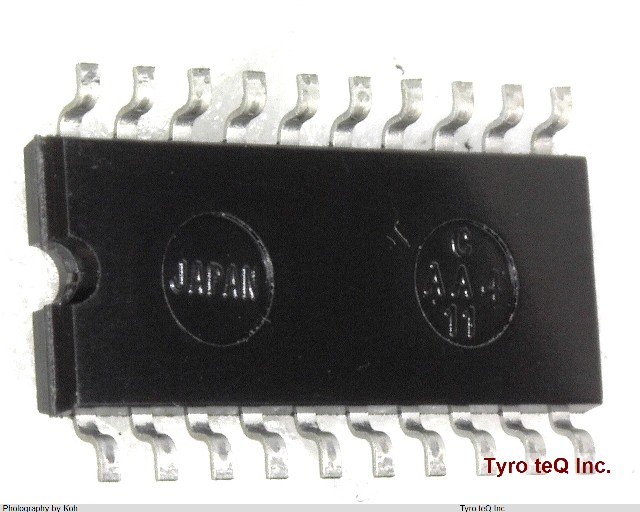

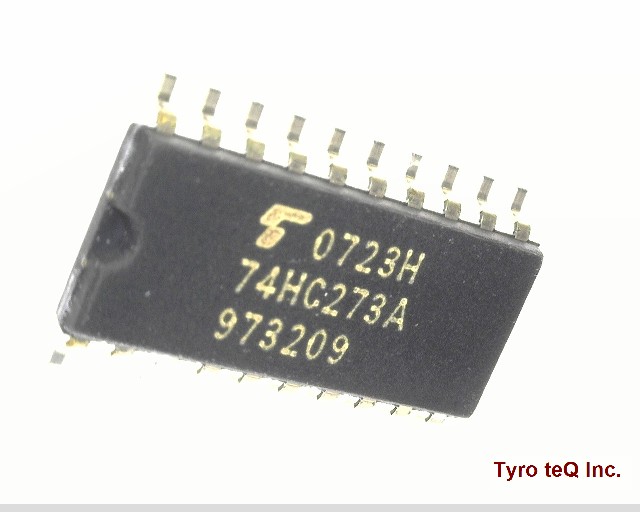

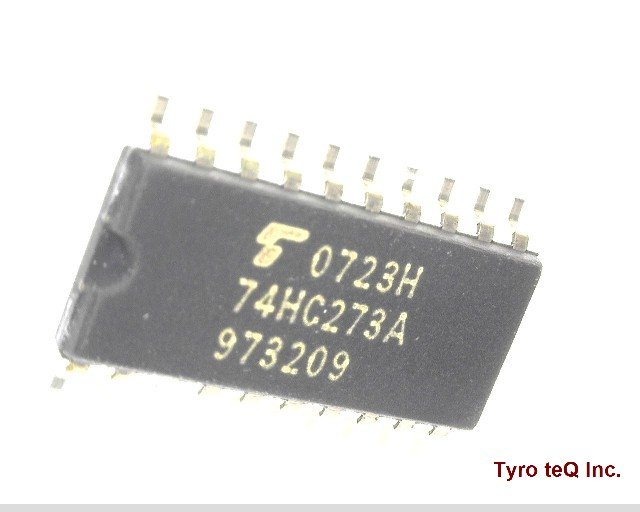

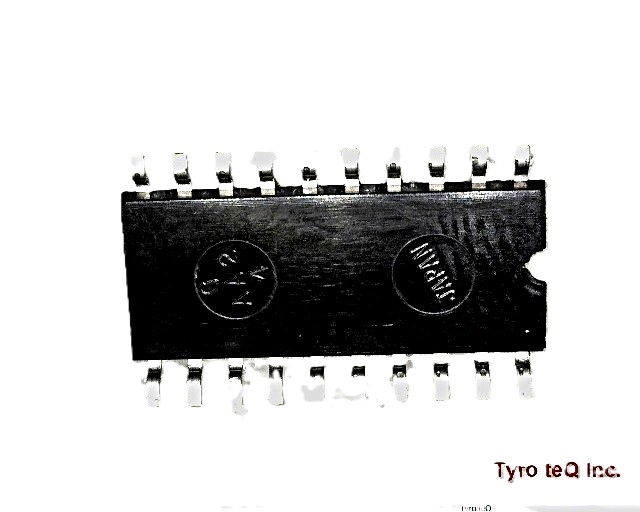

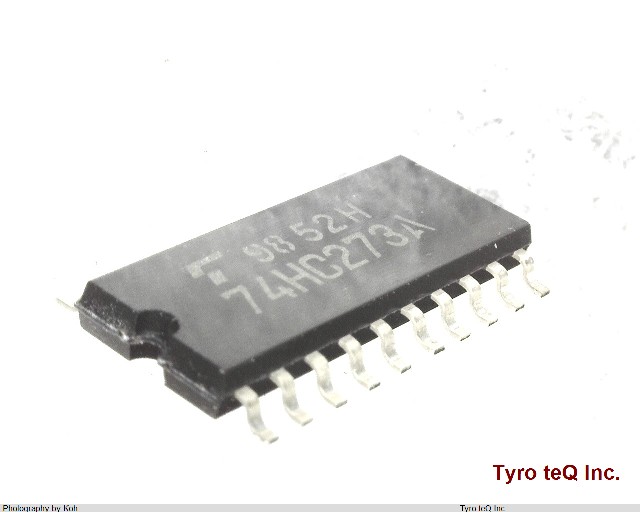

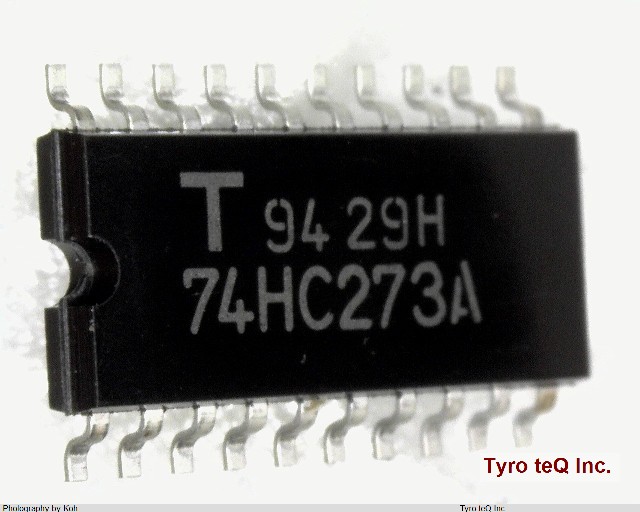

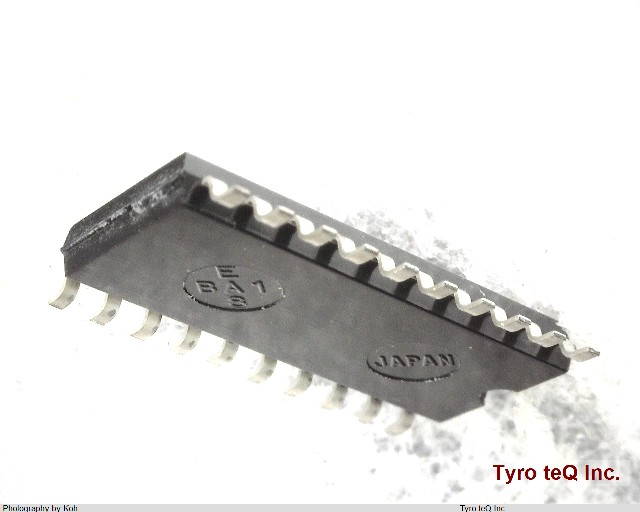

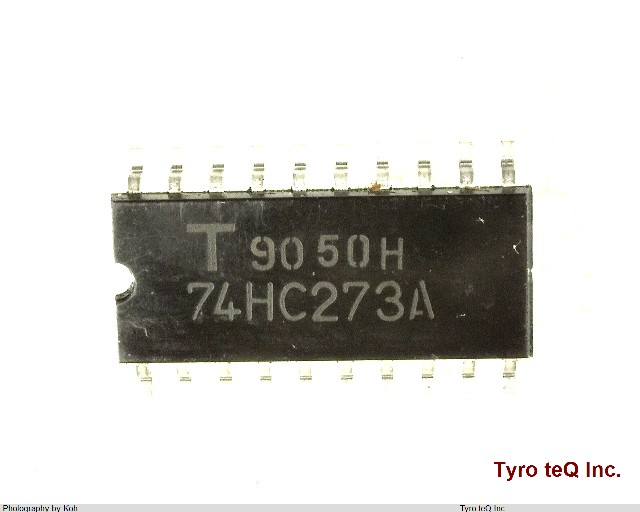

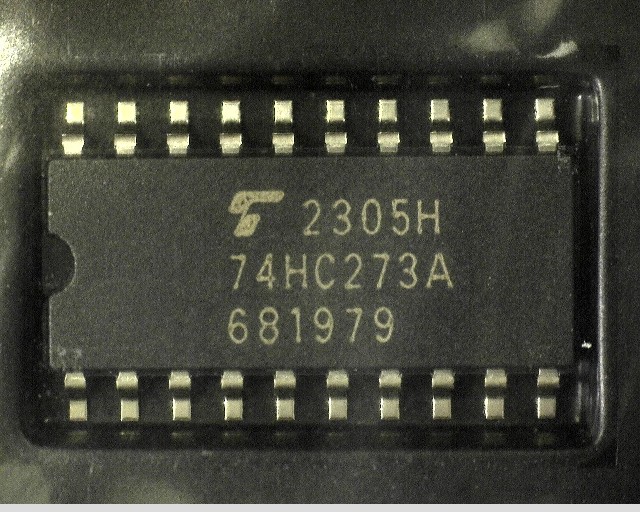

TC74HC273AF データシート

Name: TC74HC273AF
Brand: TOSHIBA
SKU: 300000314-0000-0000-0000

TC74HC273AF - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

CMOSロジックIC | 74HCシリーズ|パッケージ : SOP

TC74HC273AF の詳細情報

型番	TC74HC273AF
メーカー	TOSHIBA
カテゴリ	その他-汎用IC
種別	CMOSロジックIC
データシート
Additional Feature	NOT AVAILABLE IN JAPAN
Family	HC/UH
IBIS	IBIS
IO (Min)(mA)	4
JESD-30 Code	R-PDSO-G20
JESD-609 Code	e0
Length	12.8 mm
Load Capacitance (CL)	50 pF
Logic IC Type	D FLIP-FLOP
Max Frequency@Nom-Sup	24000000 Hz
Max I(ol)	0.004 Amp
Number of Bits	8
Number of Functions	1
Number of Terminals	20
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP20,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	240
Power Supplies	2/6 V
Propagation Delay (tpd)	36 ns
Qualification Status	Not Qualified
Seated Height-Max	1.8 mm
Sub Category	FF/Latches
Supply Voltage-Max (Vsup)	6 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Trigger Type	POSITIVE EDGE
VCC (Max)(V)	6
VCC (Min)(V)	2
Width	5.3 mm
fmax-Min	24 MHz
tpd_tpz (Typ.)(nsec)	15
グループ	TC74HC
ピン数	20
回路数	8
機能1	Flip-Flop
機能2	D-Type Flip-Flop
面実装区分	Y
