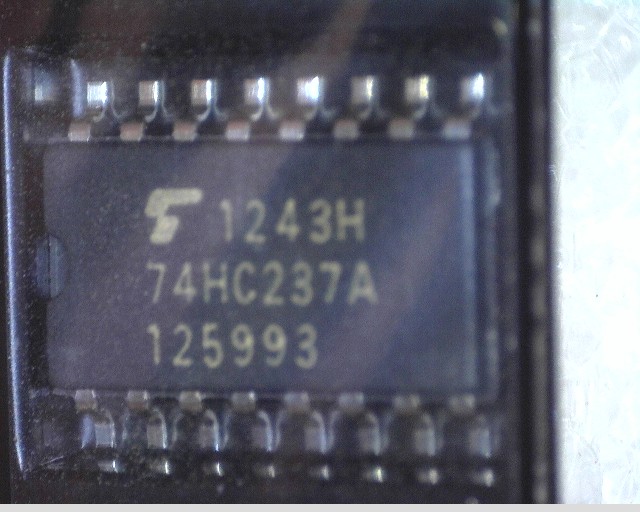

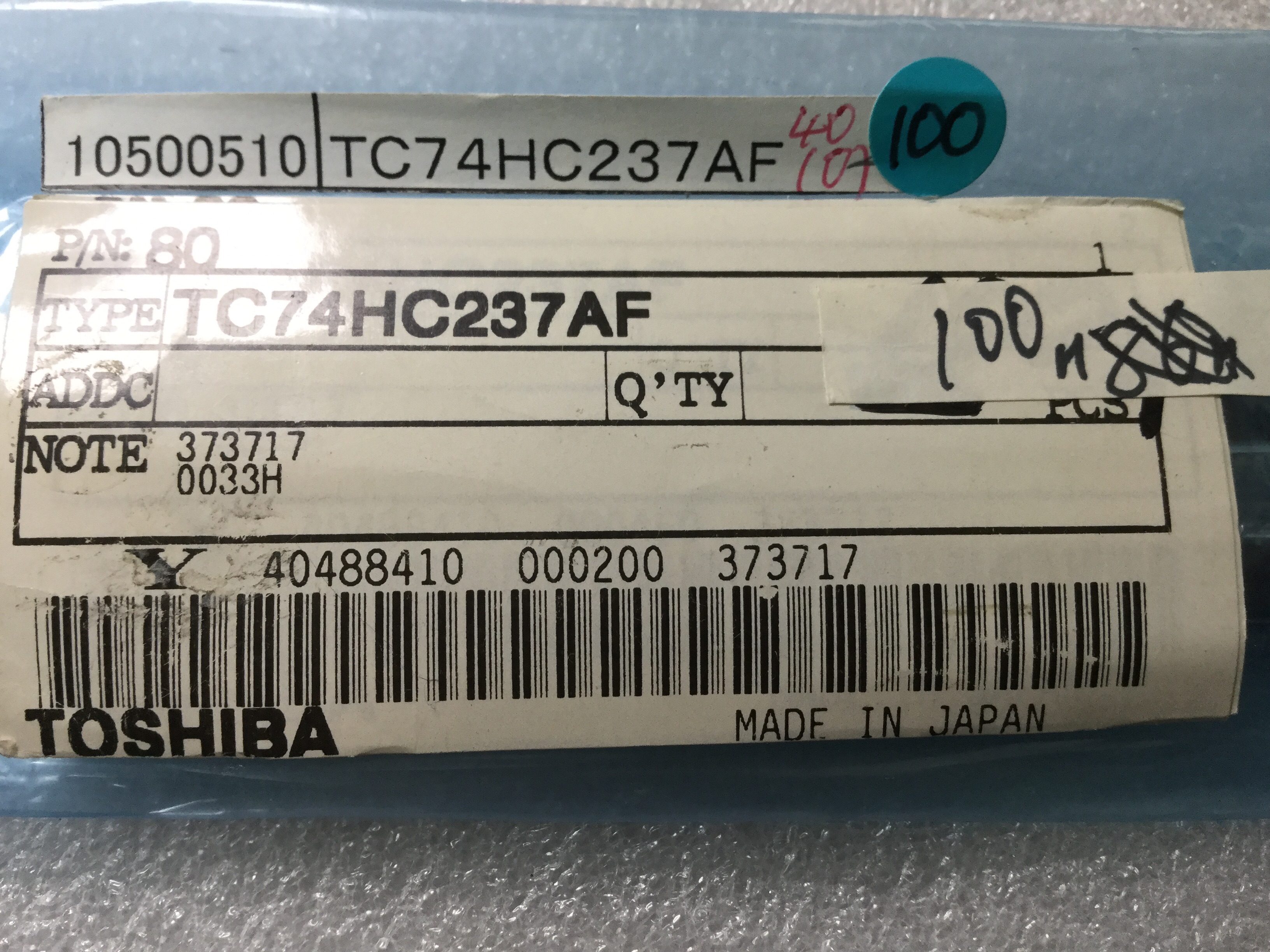

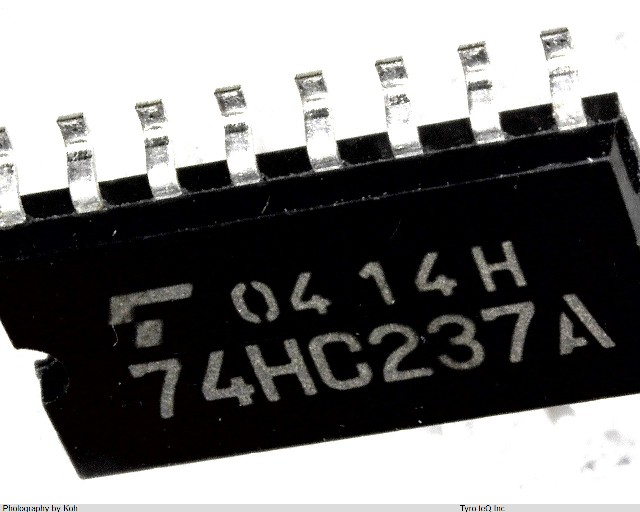

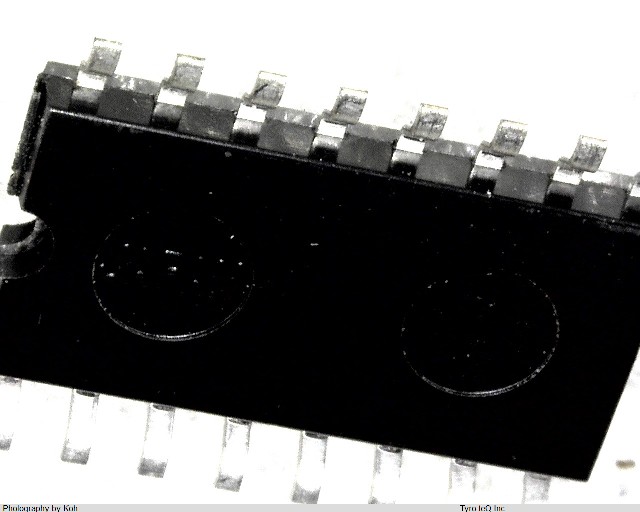

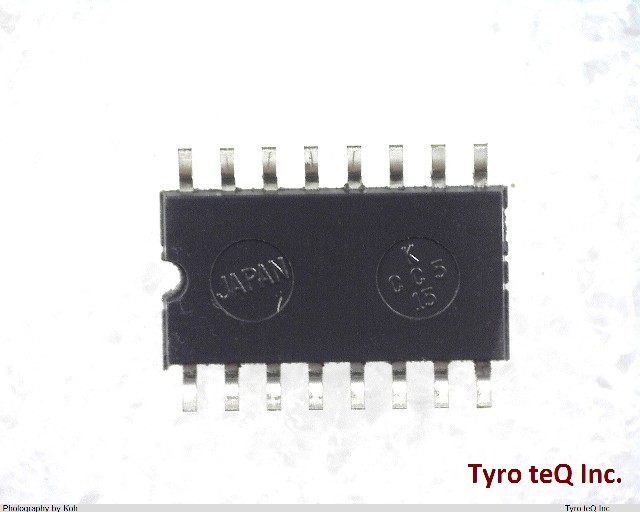

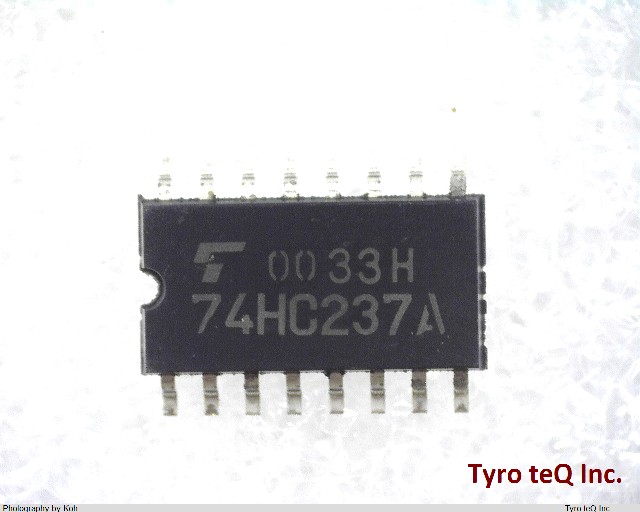

TC74HC237AF データシート

Name: TC74HC237AF
Brand: TOSHIBA
SKU: 300018698-0000-0000-0000

TC74HC237AF - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

CMOSロジックIC | 74HCシリーズ|パッケージ : SOP

TC74HC237AF の詳細情報

型番	TC74HC237AF
メーカー	TOSHIBA
種別	CMOSロジックIC
データシート
Additional Feature	ADDRESS LATCHES; 2 ENABLE INPUTS
Family	HC/UH
Input Conditioning	LATCHED
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e0
Length	10.3 mm
Load Capacitance (CL)	50 pF
Logic IC Type	OTHER DECODER/DRIVER
Max I(ol)	0.004 Amp
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP16,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	240
Power Supplies	2/6 V
Prop. Delay@Nom-Sup	45 ns
Propagation Delay (tpd)	45 ns
Qualification Status	Not Qualified
Seated Height-Max	1.9 mm
Sub Category	Decoder/Drivers
Supply Voltage-Max (Vsup)	6 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	4.5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	TIN COPPER/TIN SILVER
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	5.3 mm
