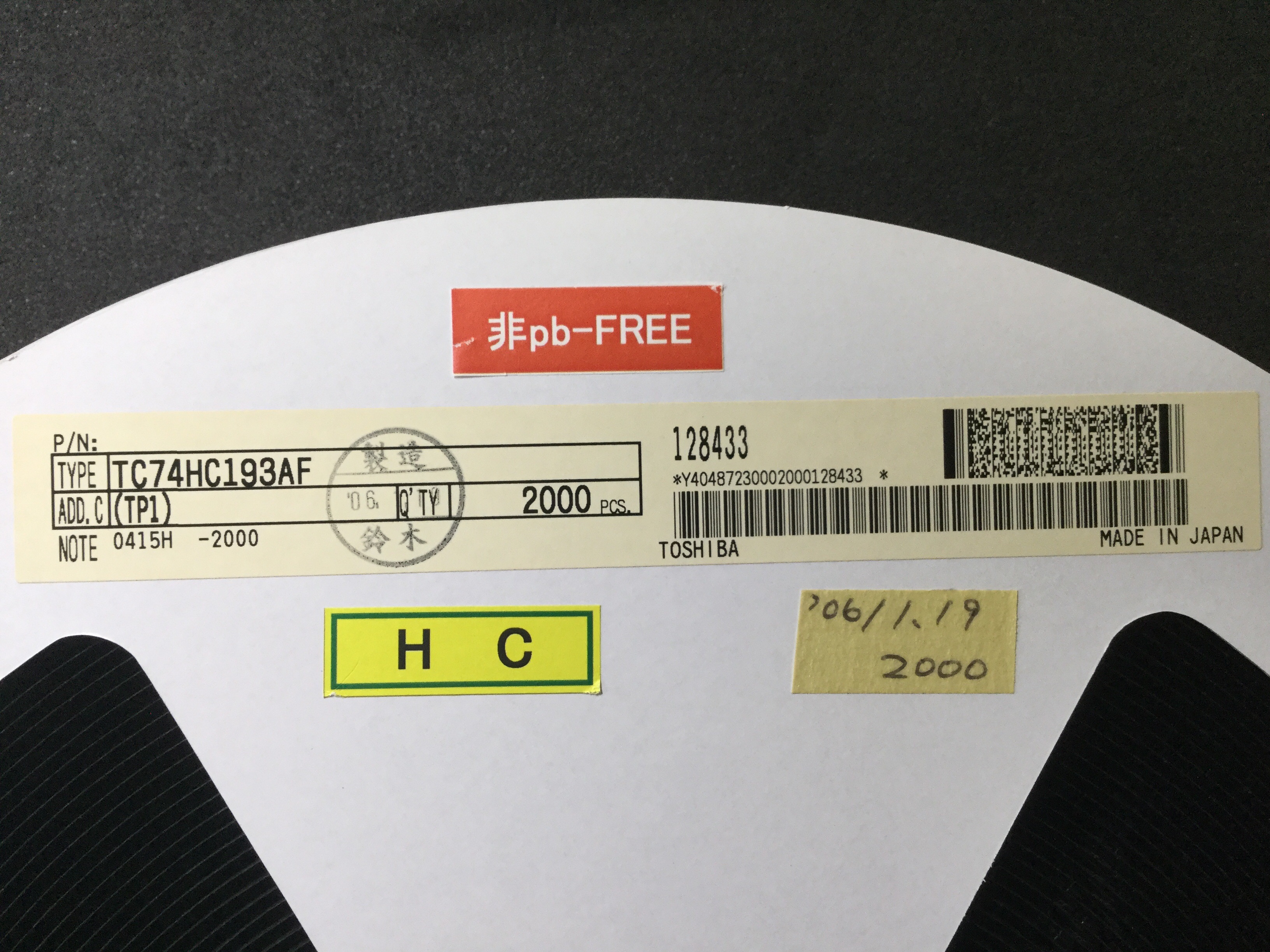

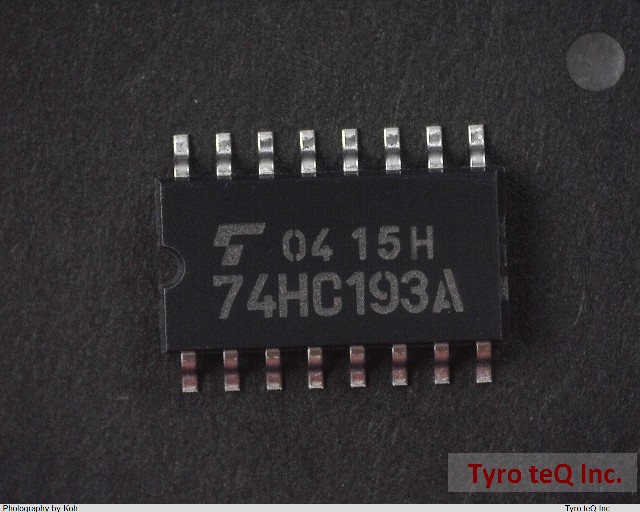

TC74HC193AF(TP1) データシート

Name: TC74HC193AF(TP1)
Brand: TOSHIBA
SKU: 300393877-0000-0000-0000

TC74HC193AF(TP1) - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

CMOSロジックIC | 74HCシリーズ|パッケージ : SOP

TC74HC193AF(TP1) の詳細情報

型番	TC74HC193AF(TP1)
メーカー	TOSHIBA
種別	CMOSロジックIC
データシート
Additional Feature	TCO UP AND TCO DOWN OUTPUTS; SEPARATE UP/DOWN CLOCK
Count Direction	BIDIRECTIONAL
Family	HC/UH
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e0
Length	10.3 mm
Load Capacitance (CL)	50 pF
Load/Preset Input	YES
Logic IC Type	BINARY COUNTER
Mode of Operation	SYNCHRONOUS
Number of Bits	4
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	240
Propagation Delay (tpd)	48 ns
Qualification Status	Not Qualified
Seated Height-Max	1.9 mm
Supply Voltage-Max (Vsup)	6 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Trigger Type	POSITIVE EDGE
Width	5.3 mm
fmax-Min	20 MHz
