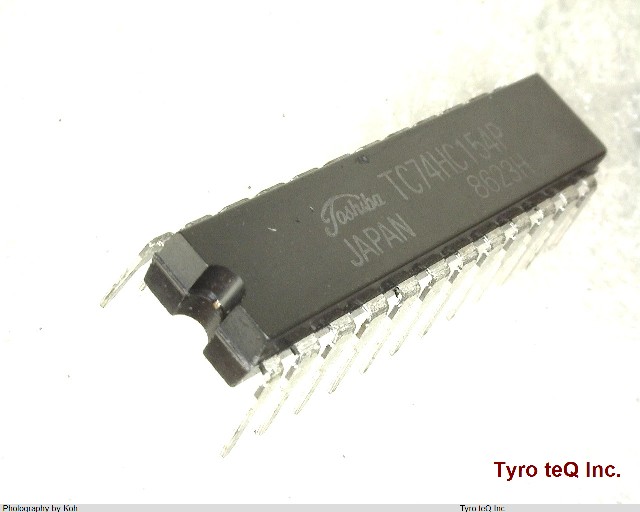

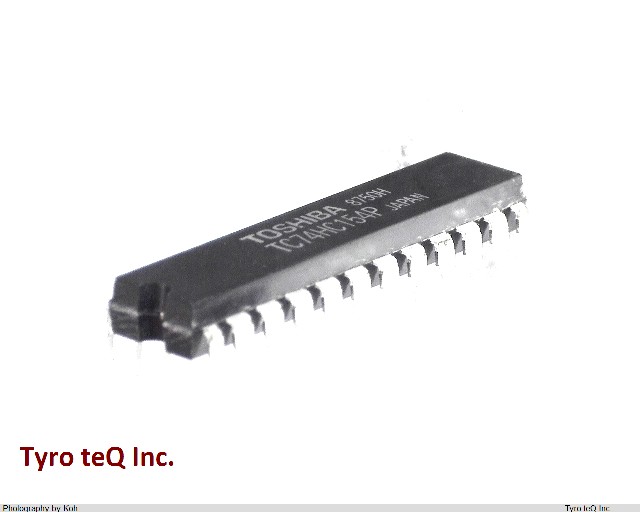

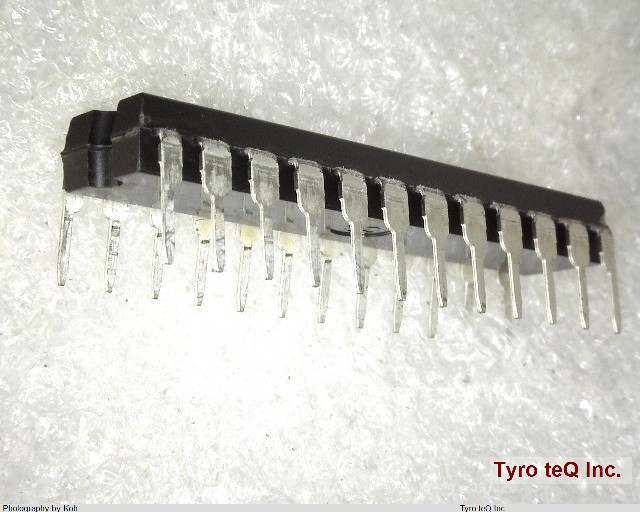

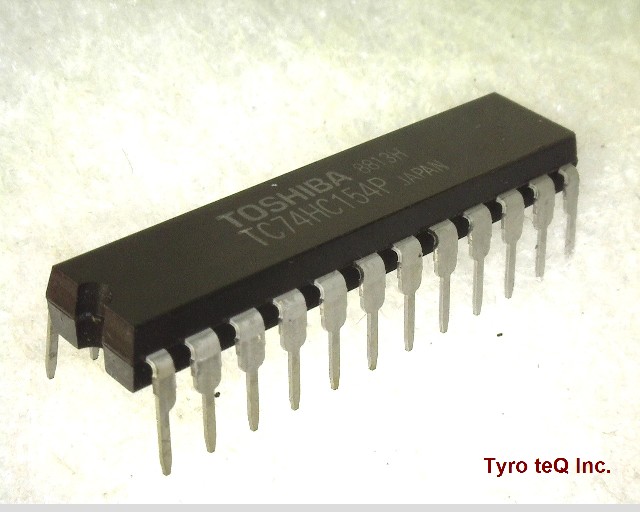

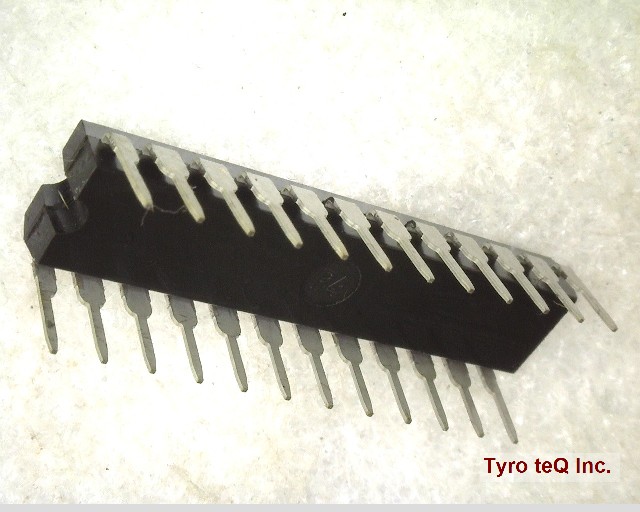

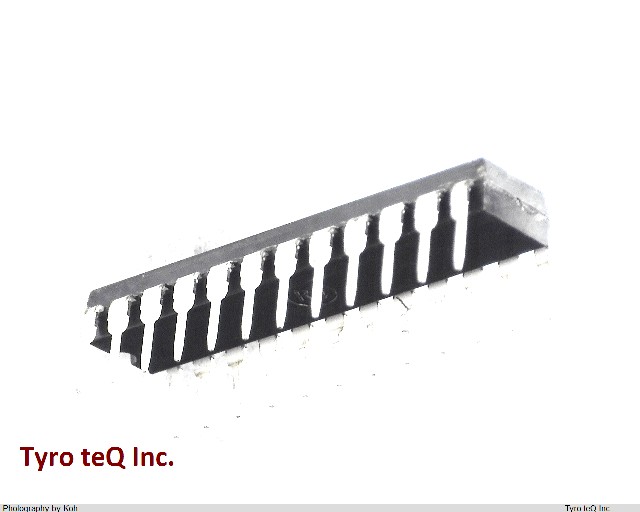

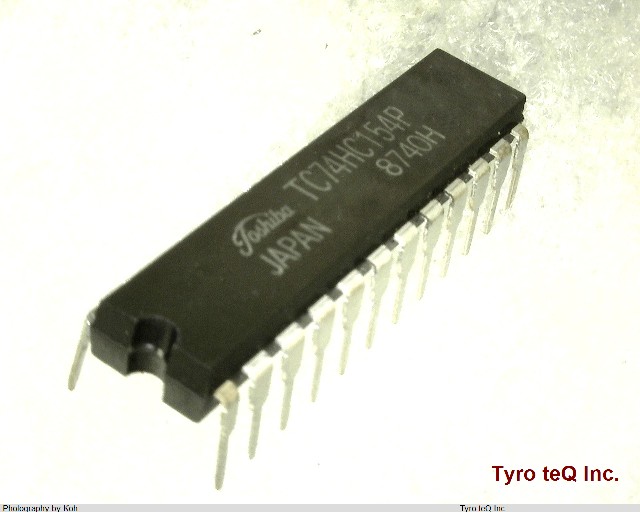

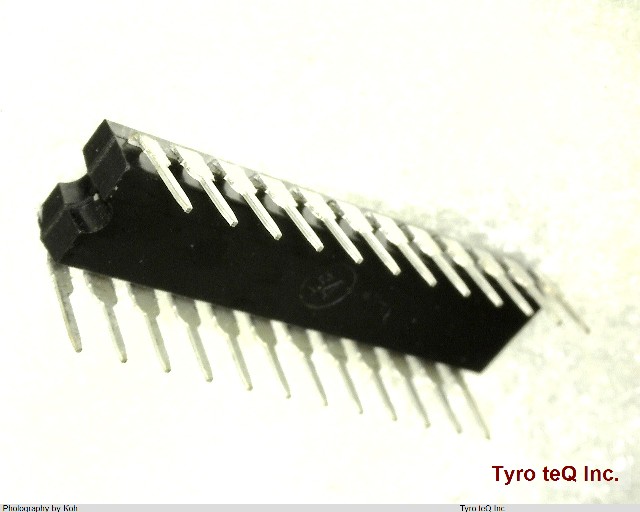

TC74HC154P データシート

Name: TC74HC154P
Brand: TOSHIBA
SKU: 300018611-0000-0000-0000

TC74HC154P - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

CMOSロジックIC | 74HCシリーズ

TC74HC154P の詳細情報

型番	TC74HC154P
メーカー	TOSHIBA
種別	CMOSロジックIC
データシート
Family	HC/UH
Input Conditioning	STANDARD
JESD-30 Code	R-XDIP-T24
JESD-609 Code	e0
Load Capacitance (CL)	50 pF
Logic IC Type	OTHER DECODER/DRIVER
Max I(ol)	0.004 Amp
Number of Functions	1
Number of Terminals	24
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Polarity	INVERTED
Package Body Material	UNSPECIFIED
Package Code	DIP
Package Equivalence Code	DIP24,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	2/6 V
Prop. Delay@Nom-Sup	50 ns
Propagation Delay (tpd)	255 ns
Qualification Status	Not Qualified
Sub Category	Decoder/Drivers
Supply Voltage-Max (Vsup)	6 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	4.5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
